Features:

• 100 MHz and 200 MHz bandwidth
• 1 GSa/s sample rate
• Fully isolated 1000 V CAT II and 600 V CAT III input rating (models 2515B / 2516B)
• Non-isolated 300 V CAT II input rating (models 2511B / 2512B)
• 12 Mpts memory depth
• Serial bus decoding for IIC, SPI, UART, CAN, and LIN protocols
• FFT plus 7 additional math functions
• Built-in 6000-count DMM measures DC/AC voltage, DC/AC current, resistance, capacitance, diode, and continuity test
• Recorder and trend plot functions to log data
• USB host port for convenient storing and recalling of waveform data, setups, and screenshots on a USB flash drive
• Standard micro-USB device port for remote PC control

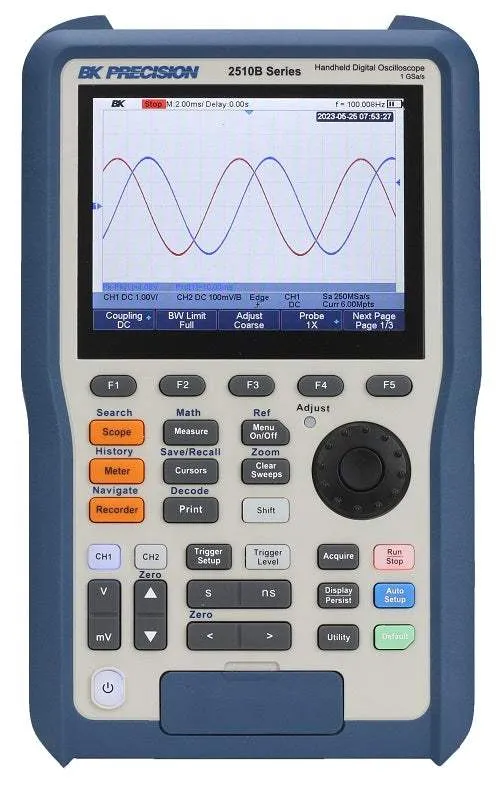

The 2510B Series handheld digital storage oscilloscopes combine floating measurement and recorder capabilities with a built-in digital multimeter (DMM), all in one portable and lightweight package. These versatile 100 MHz and 200 MHz bandwidth scopes provide two channels with 1 GSa/s sample rates, 12 Mpts memory depth, 38 automatic measurements, and multiple recording functions to capture transient or long-term signal behavior. Models 2515B and 2516B offer full isolation between both the oscilloscope channels, the multimeter channel, the power input, and the USB host and device ports.
