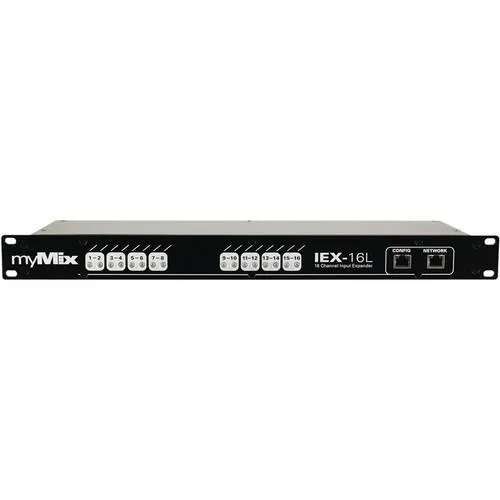

The myMix IEX-16L 16-Channel Input Expander is designed to provide an additional 16 channels of analog audio into a myMix system. It has dual DB25 connectors for signal from a mixing console, mic preamps, or digital interfaces. The IEX-16L features three levels of digital gain control per channel, allowing you to set the input at 0dB, 6dB, or 12dB. The unit is configurable with any myMix device or through a PC with the myMix CONTROL software.
Multiple IEX-16Ls can be connected to add as many channels of audio as needed into your myMix system. It connects to multiple myMix devices through an optional 100MBps Ethernet switch.

• Analogue Input Expander
• 16 Balanced Line Level Inputs on two DB25 Connectors
• Optional available with additional 2 x 8ch optical ADAT Interfaces (IEX16L-A)
• Adds 16 Audio Channels to myMix System in a 1U, 19-inch package
• Independent Audio Channel Selection on every myMix unit
• Convenient Signal Feed from a Mixing Console, External Microphone Pre-Amps or Digital Interfaces
• Individual Digital Gain Adjustment (0dB, 6dB, 12dB) per Input Channel
• Can be combined with other myMix Input and Output devices
• Configuration of IEX-16L from any myMix in the network or through myMix CONTROL software
• Works with 100MBps Fast Ethernet Switches
• Allows the use of multiple IEX-16L with "virtually unlimited" Audio Channels on Network
• Remote Configuration with optional myMix CONTROL software (web browser based)
