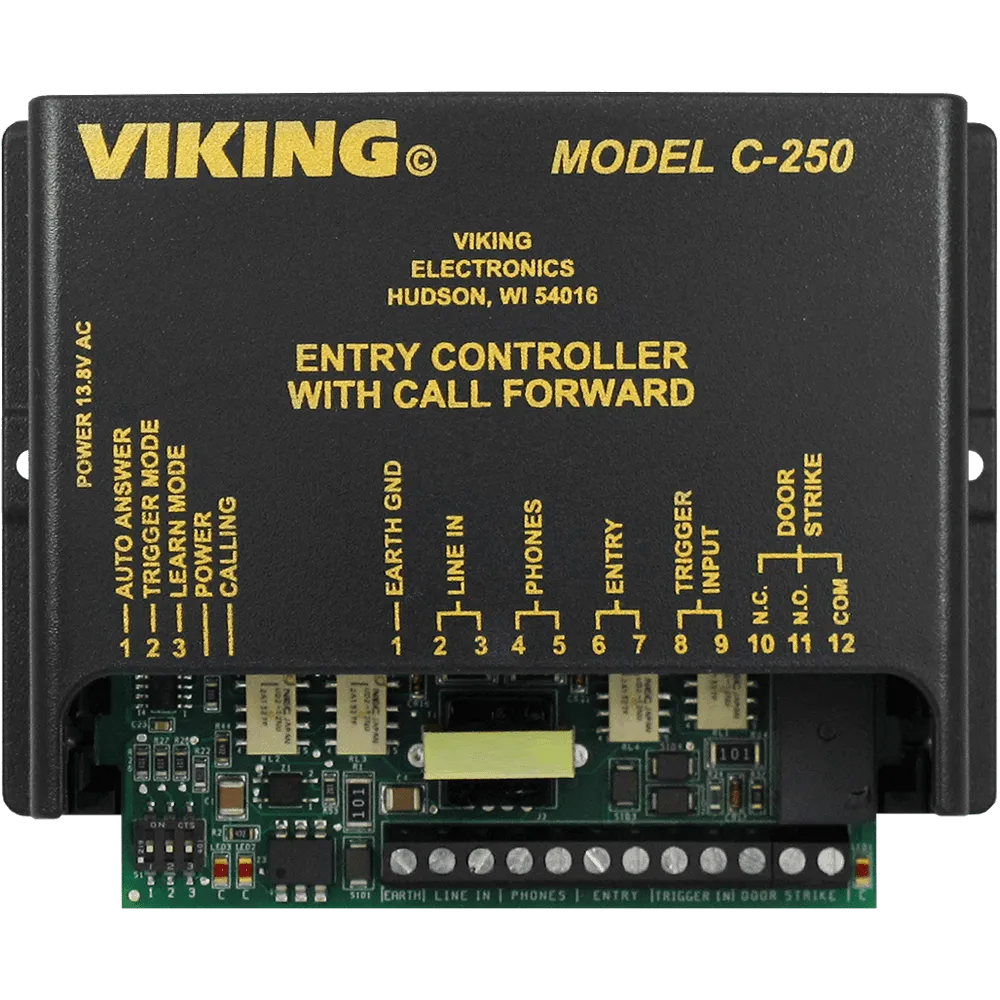

Viking C-250 Features:

• Five Number Dialer: Built-in dialer makes an outside call if there is no answer on the inside phone. If outside call is not answering, it can call up to four additional outside numbers.
• House phones ring with C.O. line cadence or distinctive ring when the entry phone is calling
• Tenants may also call out to entry phone for monitoring purposes
• Detects busy or ring no answer and goes onto the next number
• Built in door strike relay with 1 or 2 digit commands
• Detects touch tones as fast as 50 milliseconds
• Postal lock input
• Produces “Call Waiting” tones if the entry phone is activated when the house phones are already on a call
• Manufacturer Warranty 2 Year Limited Warranty

Compatible Viking Phones:

Viking C-250 Applications

• Add an entry phone to your standard home or office phones to provide door communication
• Provide commercial or residential security via two-way handsfree communication at the door or gate
• Connects in series with a single phone line or with a phone system’s line / trunk input

• Viking C-250 Specifications

  • Power: 120VAC / 13.8VAC 1.25A UL listed adapter provided
  • Dimensions: 5.25″ x 4.1″ x 1.75″ (133mm x 104mm x 44mm)
  • Shipping Weight: 2 lbs (0.9 kg)
  • Operating Temperature: 32°F to 90°F (0°C to 32°C)
  • Humidity: 5% to 95% non-condensing
  • SPDT Relay Contact Rating: 5A @ 30VDC / 5A @ 250VAC, 250VAC maximum
  • Ring Output: 5 REN, capable of ringing ten 0.5 REN phones
  • Talk Battery: 32VDC
  • Connections: (12) cage clamp screw terminals

  Viking C-250 Certifications

  • FCC Part 68
  • FCC Part 15
