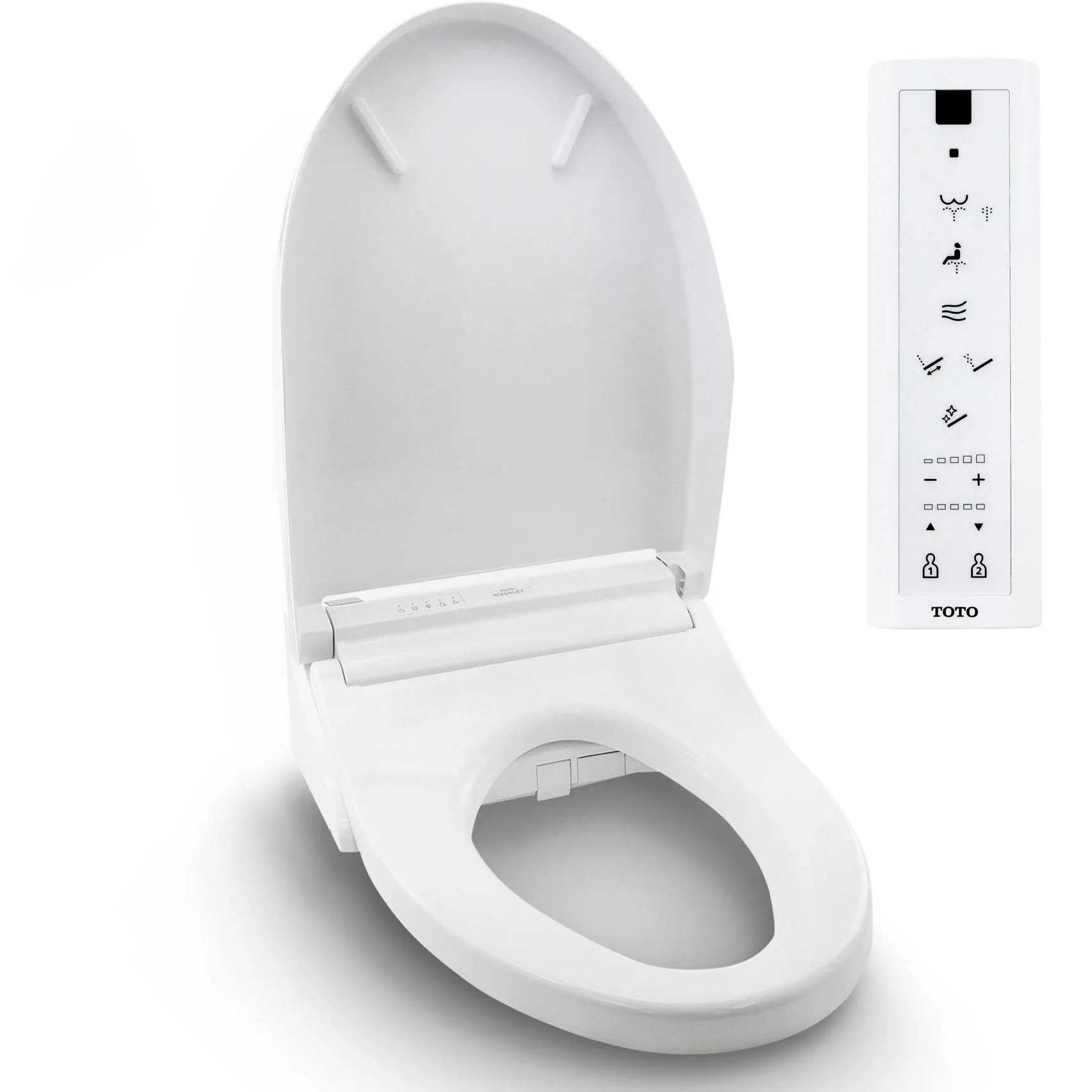

The bidet seat WASHLET C5 includes an easy-to-use remote control with an illuminated touchpad. The PREMIST function sprays the bowl before each use, helping to keep your toilet bowl clean. Designed for a seamless installation with a TOTO T40 toilet bowl. The C5 provides a satisfying cleansing experience every time.

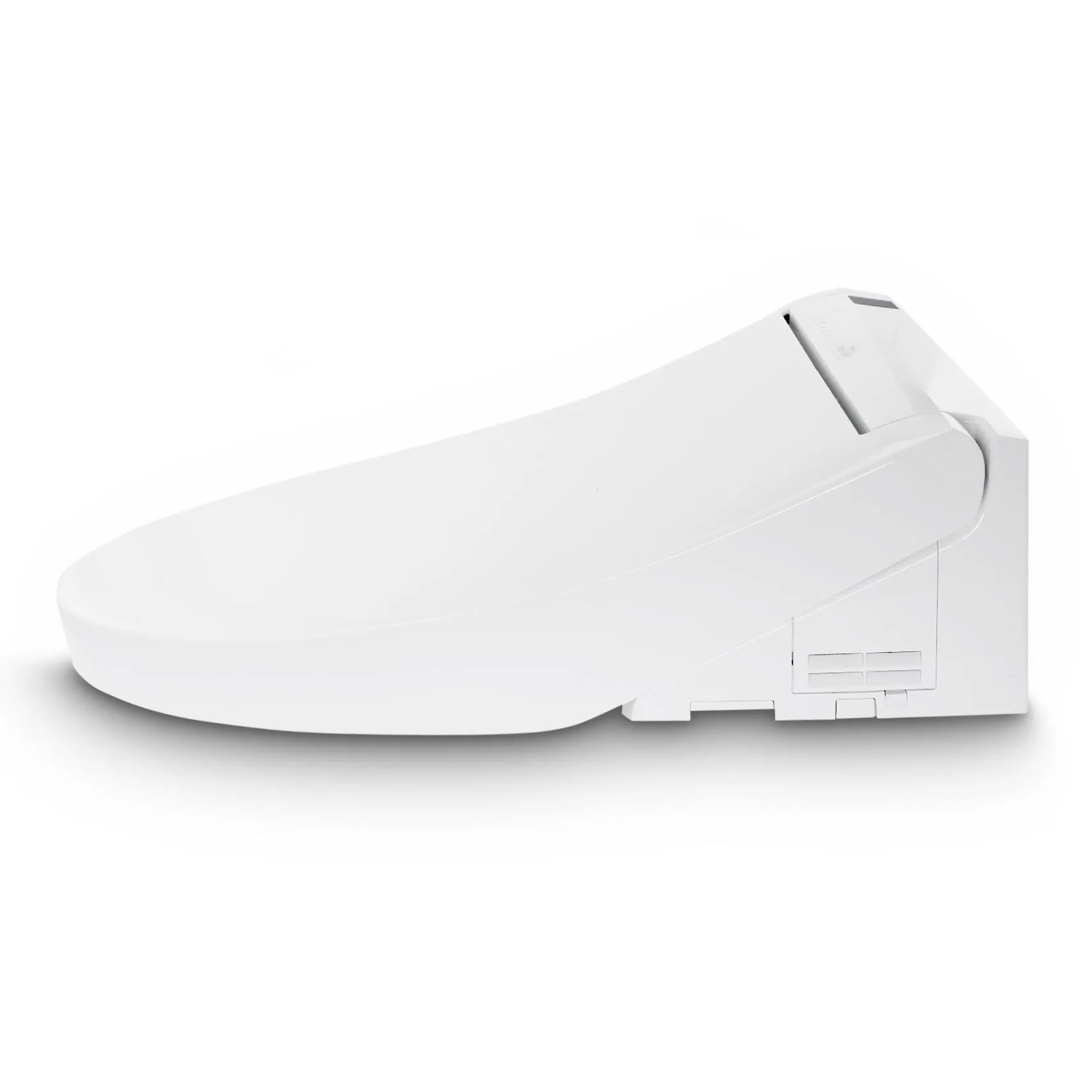

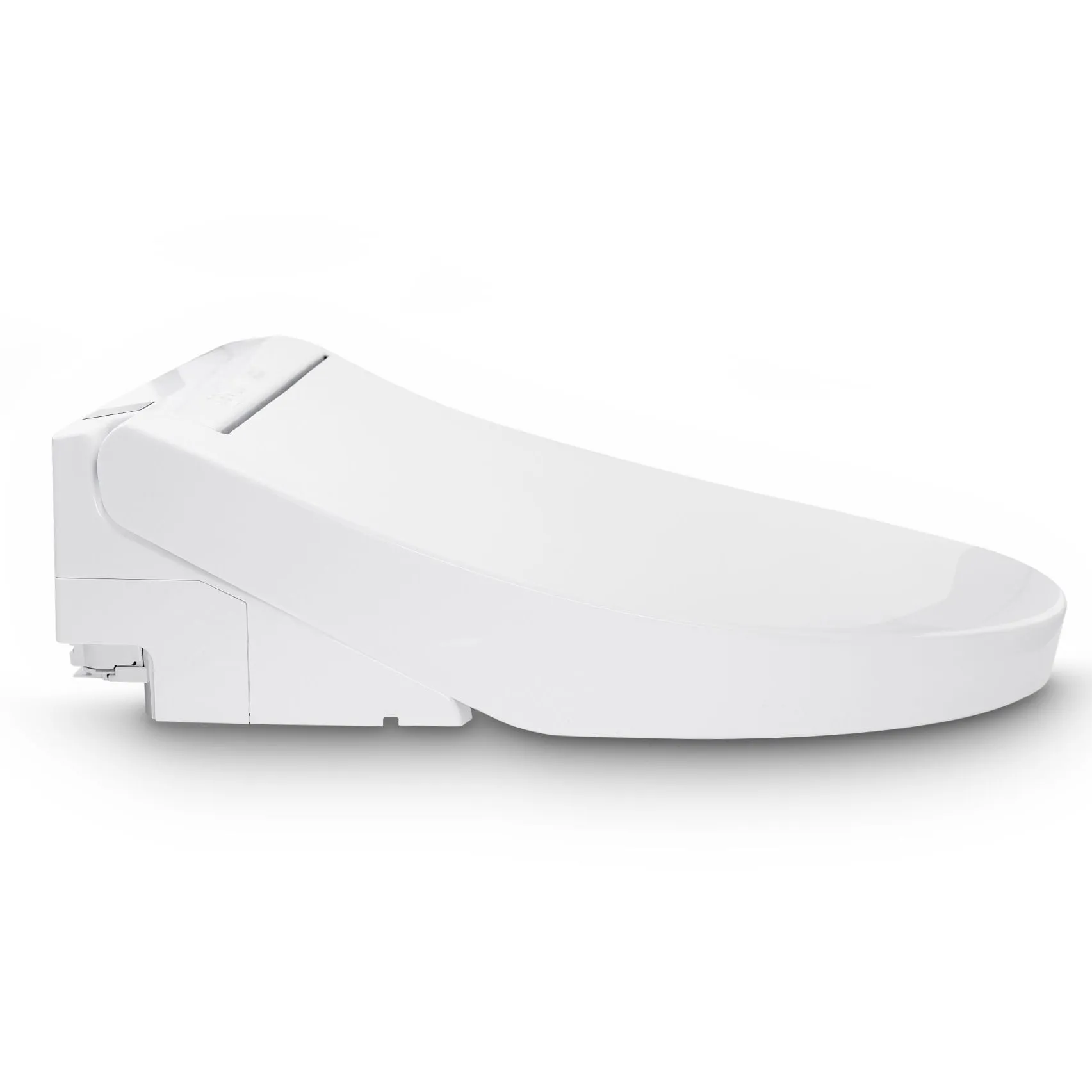

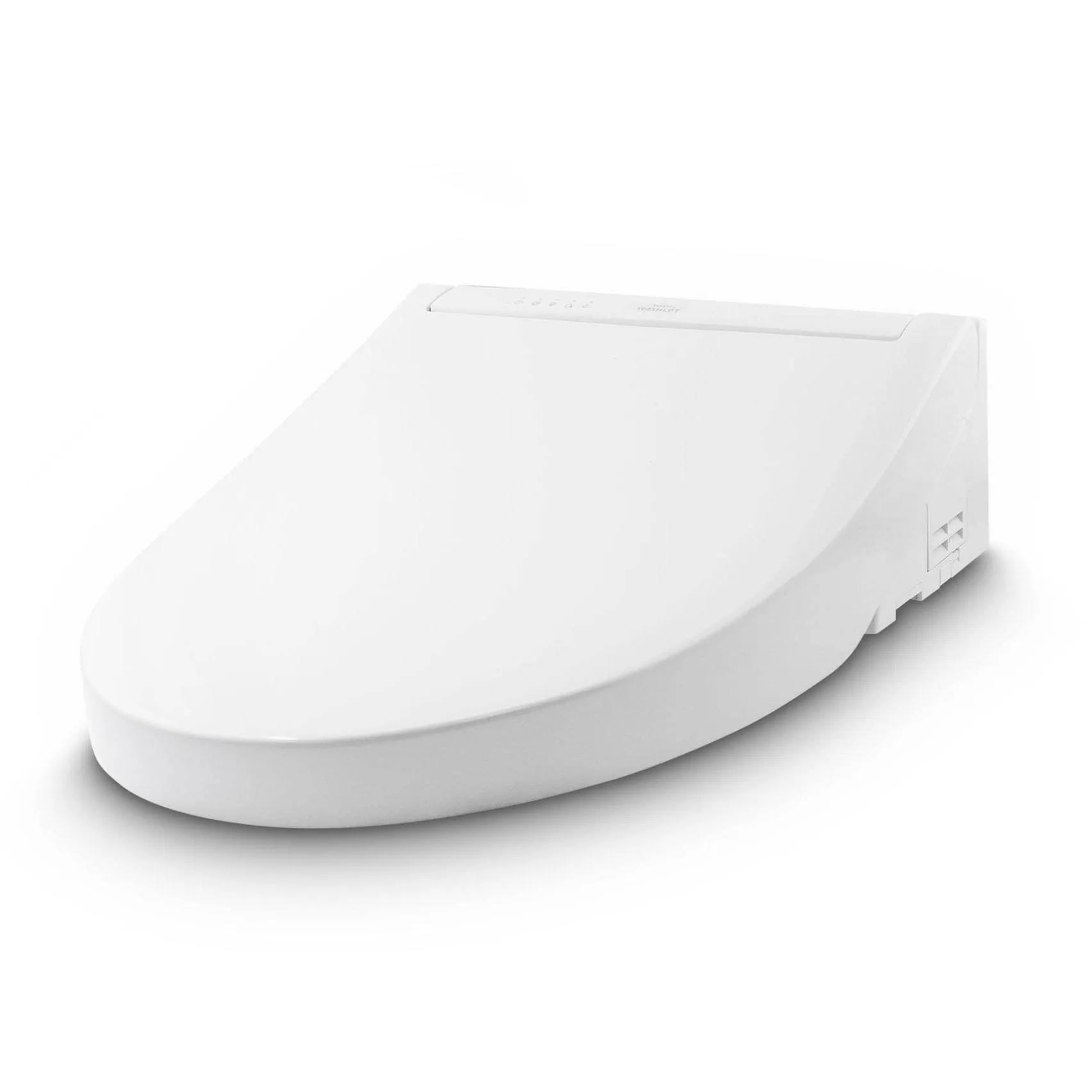

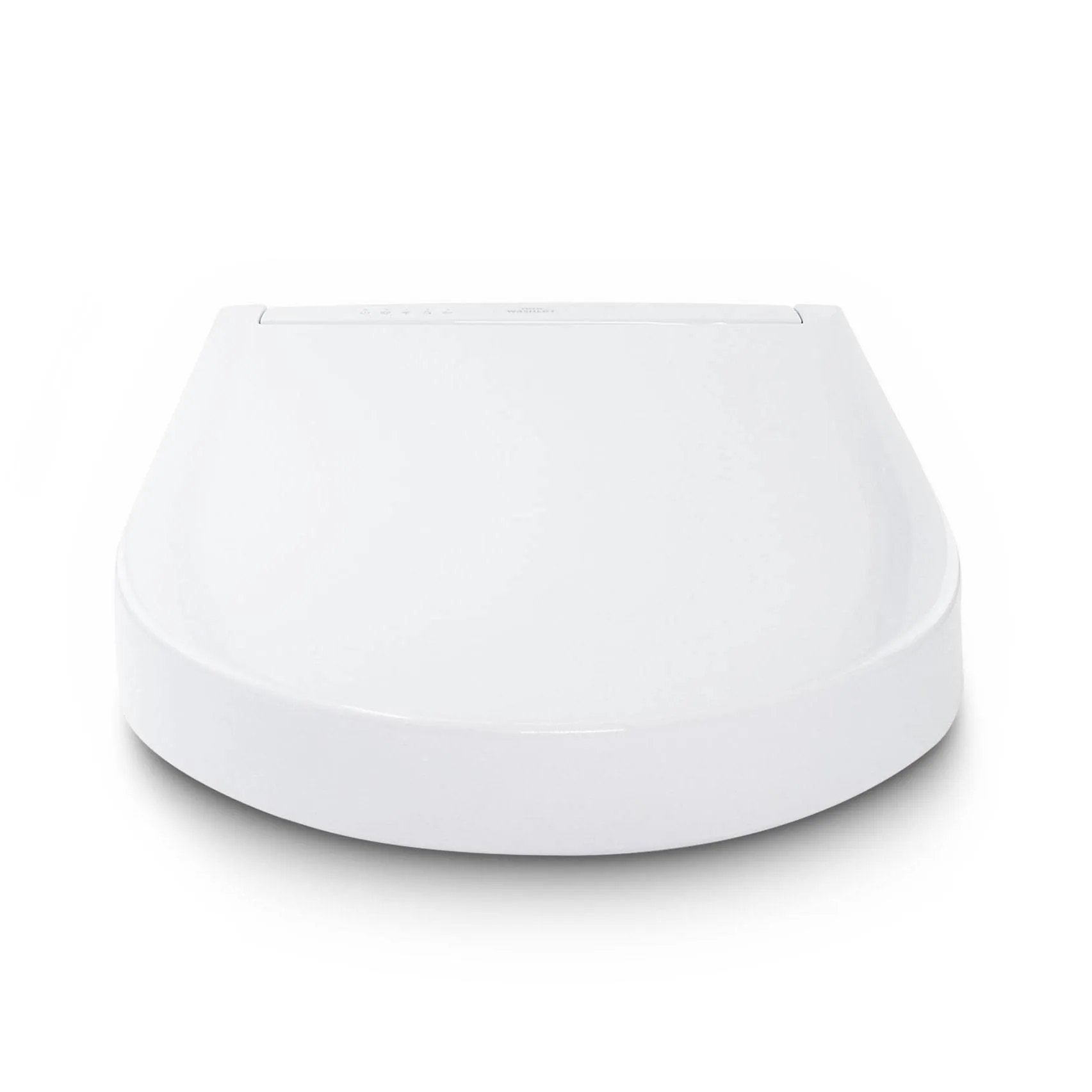

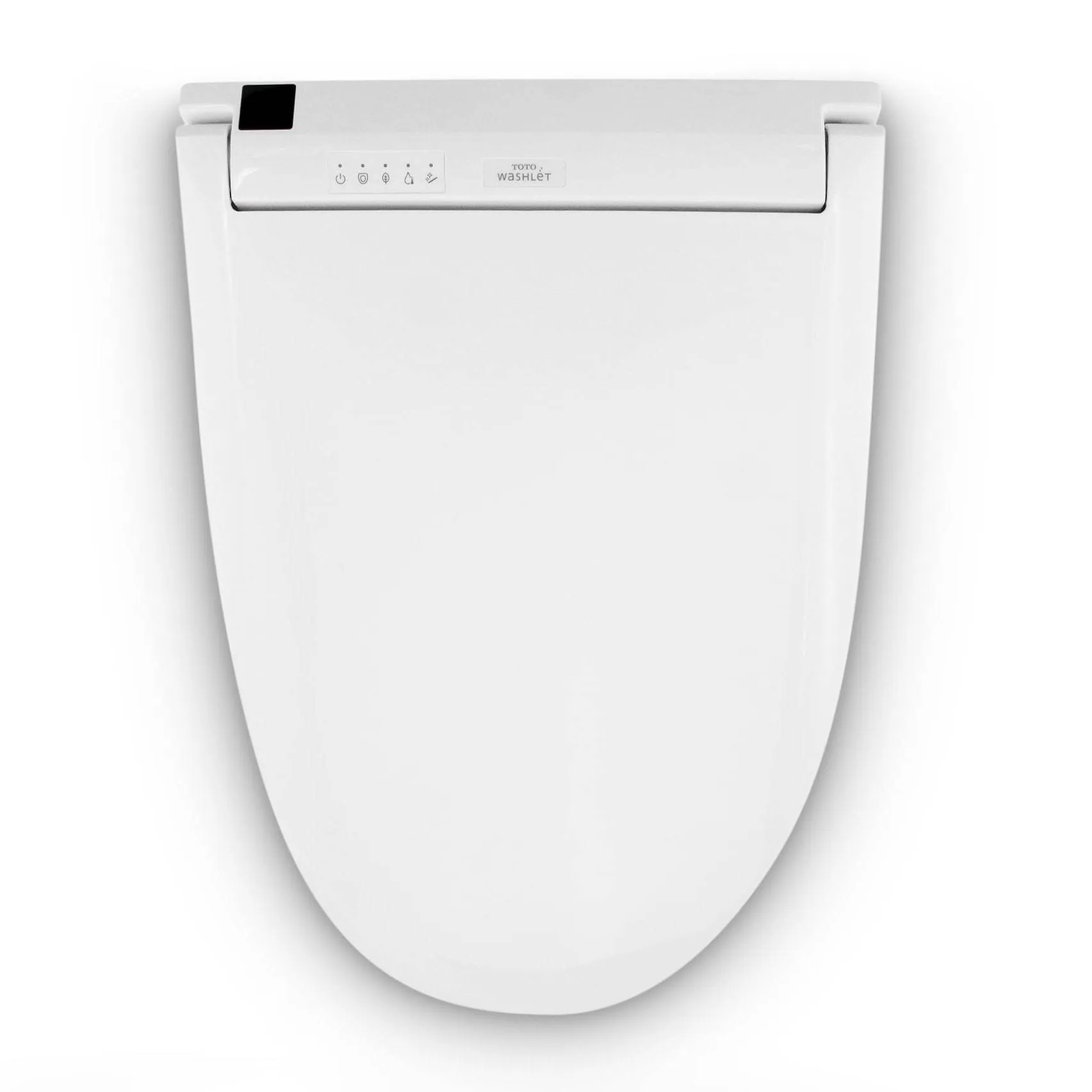

TOTO SW3084T40#01 C5 Electronic Bidet Toilet Seat Features

• High-tech electronic bidet seat
• Concealed supply connection for a seamless installation
• Gentle aerated, warm water
• Dual Action spray with oscillating and pulsating feature
• Adjustable water temperature and volume
• Warm air drying with three variable temperature settings
• Automatic air deodorizer

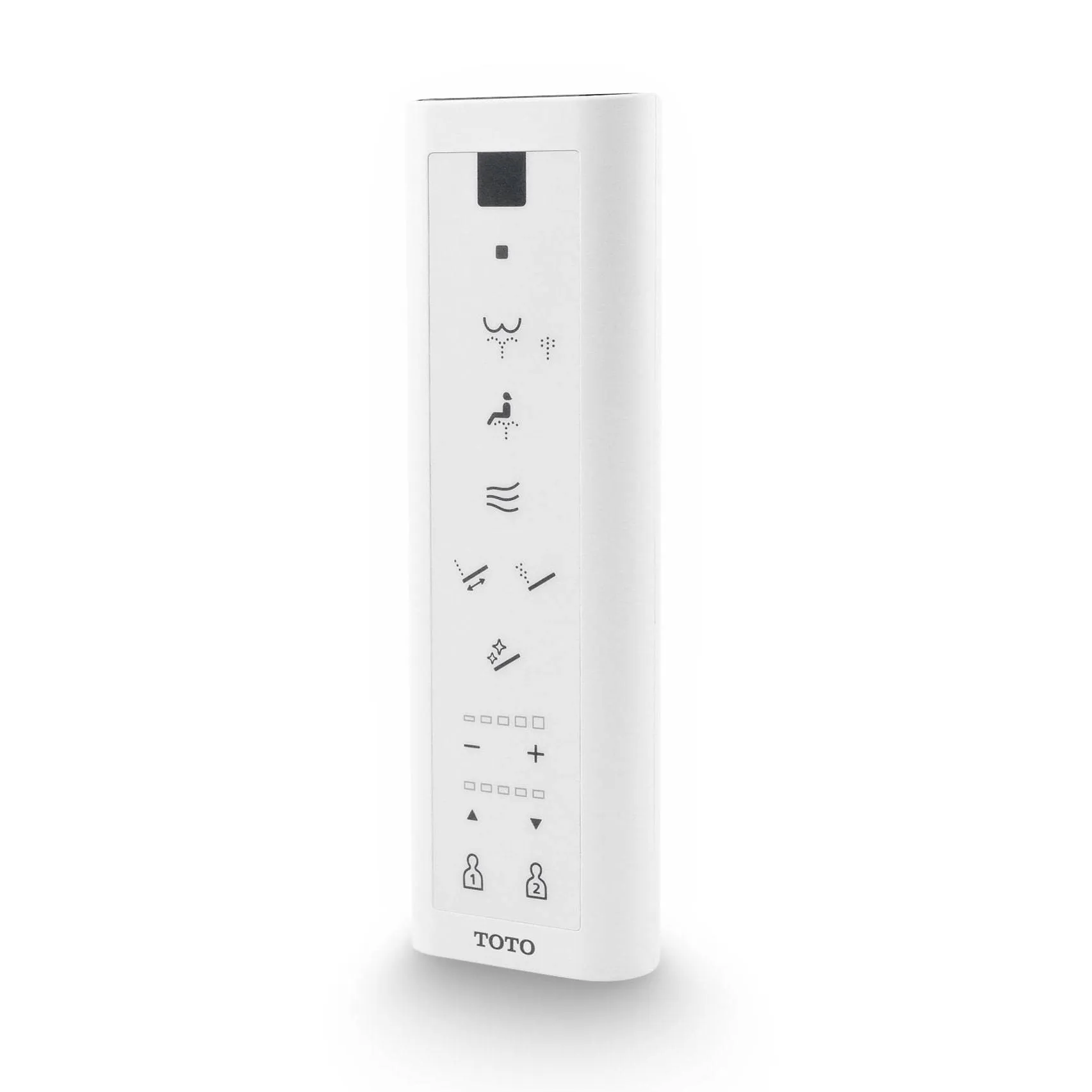

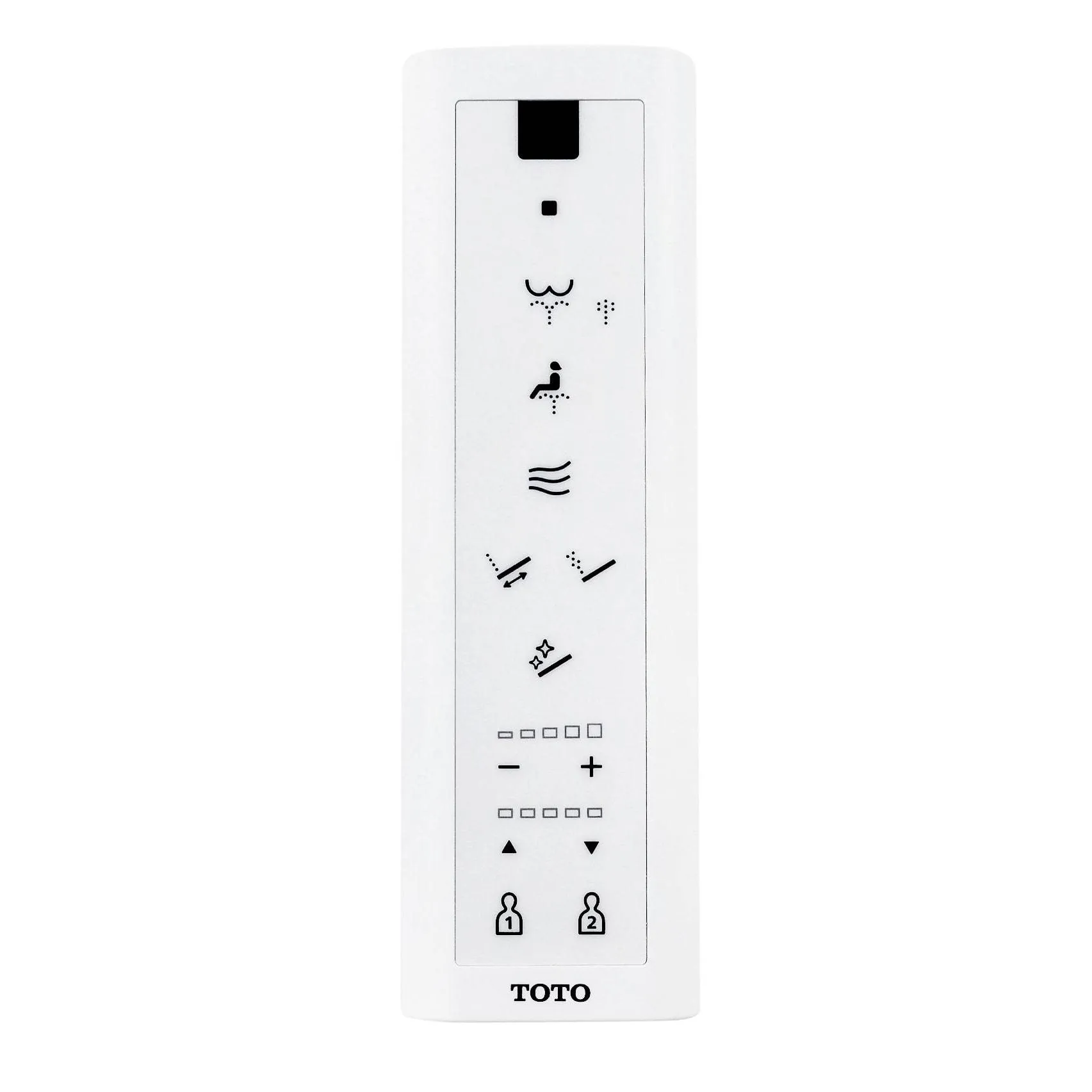

• Convenient slim wireless remote, with illuminated touchpad
• EWATER auto cleans wand
• On-demand remote function cleans the wand with EWATER
• Elongated heated seat with temperature control
• PREMIST on bowl before each use

TOTO SW3084T40#01 C5 Electronic Bidet Toilet Seat Specs

• Power Rating: AC 120 V 60 Hz
• Power Consumption: 403W
• Max Power Consumption: 512W
• Power Cord Length: 3.93 ft (1.2 m)
• Spray Volume
• Rear Cleansing: 0.07 – 0.11 gal/min • Rear Soft Cleansing: 0.07 – 0.11 gal/min • Front Cleansing: 0.08 – 0.11 gal/min
• Spray Features
• Adjustable Surface Temp: 95-104-degrees F (35-40-degrees C) • Safety Device: Temperature Fuse
• Warm Air Dryer Features
• Adjustable Air Temp: 95-140-degrees F (35-60-degrees C) • Airflow Volume: 8.83 ft3/min (0.25 m3/min) • Safety Device: Temperature Fuse
• Heated Seat Features
• Adjustable Surface Temp: 82-97-degrees F (28-36-degrees C) • Safety Device: Temperature Fuse
• Water Supply Pressure
• Minimum: 7.25 PSI (Dynamic) • Maximum: 108.75 PSI (Static)
• Ambient Temp. 32-104-degrees F (0-40-degrees C)
• One Year Limited Warranty

newmisctag

TOTO SW3084T40#01 C5 Electronic Bidet Toilet Seat Installation notes

• WASHLET C5 may not fit certain toilet bowl designs
• If possible, with your order, please include your model number (from the underside of the tank lid).
• It is highly recommended to use a surge protector to prevent damage in the event of a power surge.
• For use with potable water only. Do not use with recycled water.
• The following factors may affect IR signal strength and top unit operation: product and remote control location, room size, shape, construction materials, and degree of darkness (color) of ceiling and walls.

TOTO SW3084T40#01 C5 Electronic Bidet Toilet Seat Codes and Compliance

• Meets and exceeds ASME A112.4.2, ASME A112.18.1/CSA B125.1, UL 1431, CSA C52.2 #68
• Certifications: IAPMO(cUPC), State of Massachusetts, City of Los Angeles and others
• Code Compliance: UPC, IPC, NSPC, NPC Canada, and others
• Complies with CA Prop 65 warning requirements
