Features:

Outstanding electrical performance

• 4 GHz bandwidth
• Excellent common mode rejection – reduces measurement errors in higher common environments
• Low capacitive and resistive loading – maintains signal fidelity and reduces DC biasing interactions

Versatile mechanical performance

• Compact probe head size for probing small geometry circuit elements
• DUT attachment accessories enable connection to fine-spaced SMDs
• Robust design for reliability

Easy to use

• Connects directly to oscilloscopes with the TekVPI™ probe interface
• Provides automatic units scaling and readout on the oscilloscopes display
• Easy access to probe comp box controls or oscilloscope probe menu display for probe status, setup control, and diagnostic information

Integrated Scope/Probe system

• Direct connection to and powered from the TekVPI™ oscilloscope interface (Connects directly to TekVPI scopes without the need of an external power supply, like many competitors require)
• Single-button oscilloscope probe menu access
• Setup and control from probe comp box or oscilloscope user interface
• AutoZero - zeros out output offset
• Remote GPIB/USB probe control through the oscilloscope

Accessories:

• Pouch, nylon carrying case with inserts - 1 each
• Certificate of traceability - 1 each
• Probe tip cover - 1 each
• Antistatic wrist strap - 1 each

Accessory kit TDP4000 containing

• Plastic accessory box - 1 each
• Square pin adapter - 4 each
• Variable spacing tip adapter - 4 each
• Y-lead adapter - 2 each
• Micro CKT test tip - 3 each
• 3-inch ground lead - 2 each
• Marker band set (2 each of 5 colors) - 1 each

Accessory kit (solder-in differential probes TDP4000) containing

• Adapter, resistor/wire - 2 each
• Wire assembly w/ 0.02 diameter - 10 each
• Wire assembly w/ 0.008 diameter - 10 each
• 10 Ω resistor w/ 0.02 diameter wire - 10 each
• 10 Ω resistor w/ 0.008 diameter wire - 10 each
• 20 Ω resistor w/ 0.02 diameter wire - 10 each
• 20 Ω resistor w/ 0.008 diameter wire 10 each

Applications:

• Signal integrity, jitter, and timing analysis
• Manufacturing, engineering, and test

Design, validation, debugging, and characterization of common highspeed serial bus designs

• I ^₂C
• CAN/LIN
• SPI
• Serial ATA
• Ethernet (GbE)
• USB 2.0
• FIreWire (1394b)

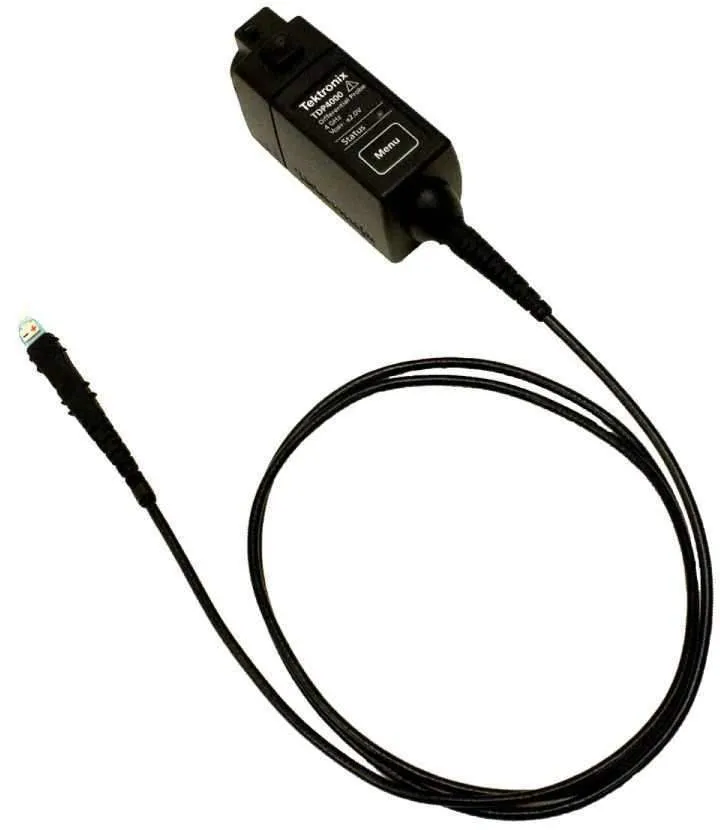

Differential active probes provide truer signal reproduction and fidelity for high-frequency measurements. With ultra-low input capacitance and versatile device-under-test connection capabilities, the TDP1500, TDP3500 and TDP4000 Differential-ended Active probes provide excellent highspeed electrical and mechanical performance required for today's digital system designs.
