Features:

• Bandwidth: 3.5 GHz
• Differential input capacitance: ≤0.3 pF
• Differential input resistance: 100 kΩ
• DC pk AC input voltage: ±15 V
• >60 dB at 1 MHz and >25 dB at 1 GHz CMRR
• Excellent common mode rejection – reduces measurement errors in higher common environments
• Low capacitive and resistive loading – maintains signal fidelity and reduces DC biasing interactions
• Compact probe head size for probing small geometry circuit elements
• DUT attachment accessories enable connection to fine-spaced SMDs
• Robust design for reliability
• Connects directly to oscilloscopes with the TekVPI™ probe interface
• Provides automatic units scaling and readout on the oscilloscopes display
• Easy access to probe comp box controls or oscilloscope probe menu display for probe status, setup control, and diagnostic information
• Direct connection to and powered from the TekVPI™ oscilloscope interface (Connects directly to TekVPI scopes without the need of an external power supply, like many competitors require)
• Single-button oscilloscope probe menu access
• Setup and control from probe comp box or oscilloscope user interface
• AutoZero - zeros out output offset
• Remote GPIB/USB probe control through the oscilloscope

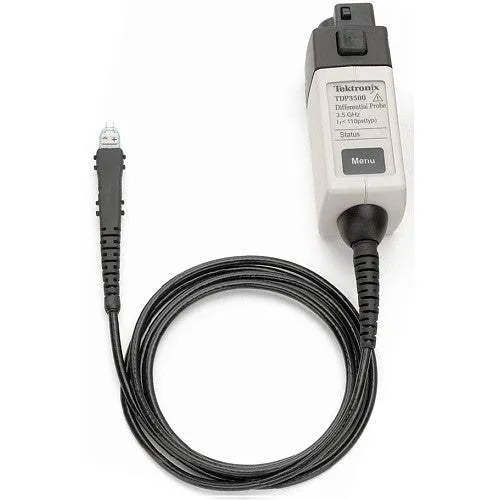

Differential active probes provide truer signal reproduction and fidelity for high-frequency measurements. With ultra-low input capacitance and versatile device-under-test connection capabilities, the TDP3500 Differential-ended Active probes provide excellent high-speed electrical and mechanical performance required for today's digital system designs.
