Freatures:

TBS2104B: 100 MHz, 4 Channels

• Up to 2 GS/s sampling rate
• 5 M record length on all channels
• 9-inch WVGA color display with 15 horizontal grids shows 50% more signal
• TekVPI probe interface supports active, differential, and current probes with automatic scaling and units
• New front-end design enables more accurate measurements
• 32 automated measurements, and FFT function for quick waveform analysis
• Search and Mark features for easy identification of events that occur in the acquired waveform
• HelpEverywhere provides helpful on-screen tips for new users
• Built-in Scope Intro handbook provides operating instructions and oscilloscope fundamentals
• USB 2.0 host port for data storage, USB 2.0 device port for easy connection to a PC
• 10/100BASE-T Ethernet port for remote control over LAN
• Wi-Fi communications with optional TEK-USB-WIFI adapter

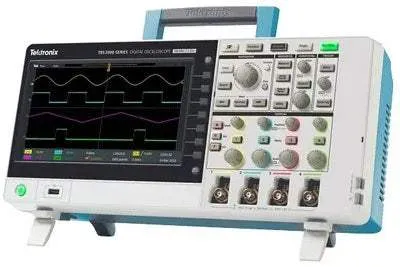

Tektronix TBS2000B Series of Oscilloscopes with a 9-inch WVGA display, 5 million point record length and 2 GS/s sample rate, capture and display significantly more signal to help you debug and validate the designs faster. Easily and confidently analyze your signals with new on-waveform cursor readouts and 32 automated measurements, each with informative tips. The TekVPI® probe interface supports traditional passive BNC probes, but also enables wide application coverage with the latest active voltage probes and current probes.
