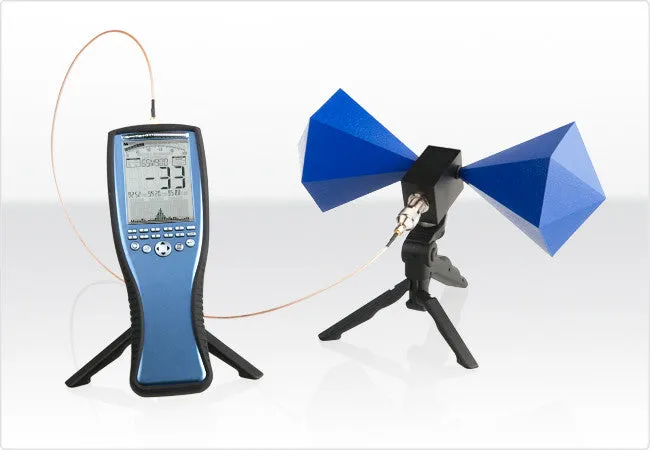

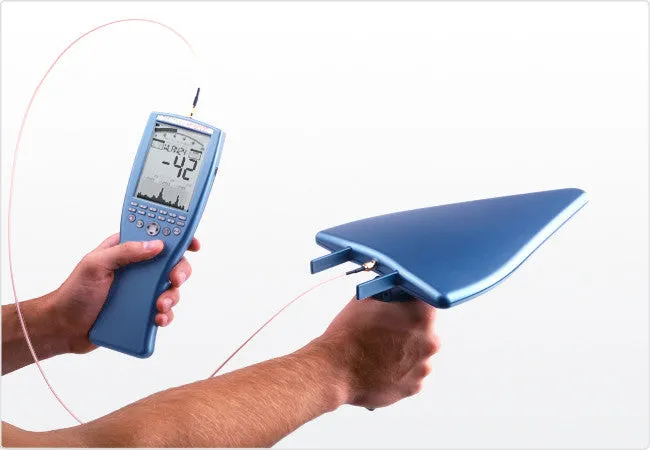

The Aaronia Spectran HF 60105 V4 Spectrum Analyzer is an interference hunting and signal analyzing device with a frequency range of 1 MHz to 9.4 GHz. This handheld RF spectrum analyzer allows technicians to make EMI measurements, identify signal quality, and test RF signals in complex networks. The comprehensive display has a bar graph format to view during testing. With precise results the Aaronia Spectran HF 60105 V4 Spectrum Analyzer is the ideal tool for a variety of testing requirements.
The Aaronia Spectran HF 60105 has a typical noise level minimum of -130 dBm, a typical accuracy (for the base unit) of /-1dB, and a maximum RF input power of 40 dBm. With a filter bandwidth minimum 200 Hz and a filter bandwidth maximum of 50 MHz, the Aaronia Spectran HF 60105 is capable of in-depth testing signal analysis. The device has a real-time remote control (via USB) and easy-to-use interface. The Write, AVG, and Hold function capabilities are user-friendly.
SPECTRAN HF-60105 V4 Features:
- Frequency range: 1 MHz - 9.4 GHz
- Avg. DANL: -155dBm(1 Hz)
- Max. power: 20dBm
- Lowest sample time: 1mS
- Resolution (RBW): 200 Hz to 50 MHz
- Accuracy: /- 1dB (typ.)
- AbsMax Level: 20dBm
- Max measurement range: -155dBm (1 Hz)
- Units: dBm, dBµV, V/m, A/m, W/m²
- dBµV/m, W/cm² etc. via included PC software
- 14Bit Dual-ADC
- DDC Hardware-Filter
- 150 MIPS DSP (CPU)
- Exposure limit calculation and display according to DIN/VDE 0848
- EMC filter: 200 Hz, 9 kHz, 120 kHz, 200 kHz, 1.5 MHz, 5 MHz
- Detectors: RMS, Min/Max
- Demodulator: AM, FM, PM, GSM
- Input: 50 Ohm SMA RF-input (f)
- Interface: USB 2.0/1.1
- GSM training sequence (color code) tracker
- Data Logger (64K)
- LCD display
- Simultaneously displays frequency and signal strength

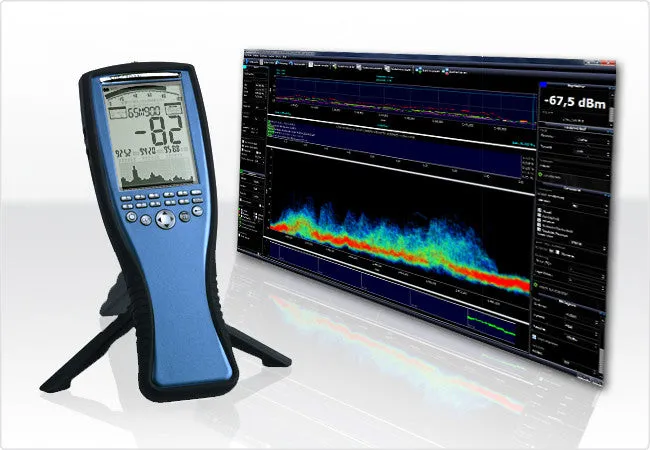

- Real-time remote control via USB
- Vector (I/Q) measurement
- DECT and TimeSlot analyzer
- Hold function
- Includes internal low-noise 15dB preamplifier
* The item is ordered by demand, so expect a 2-3 week lead time from time of purchase.
