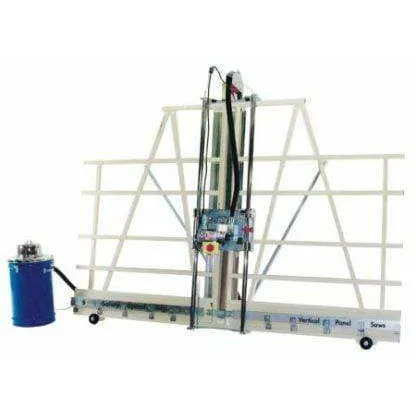

The 6400 provides a 64″ maximum crosscut while the 6800 provides a 74″ maximum crosscut. The maximum ripcut (horizontal) is dependent on pushing the panel through.

Photos are shown shown with a , , and a ,  which are optional accessories

Upgrades on the 6400 & 6800 model panel saws compared to our H-Series Panel Saws include:

• An upgraded, worm drive motor providing greater longevity.
• 1/64″ straight and square cutting tolerance compared to 1/32″ on our H-Series Machines that’s made possible by additional bearings.
• Additional steel welded at a diagonal plane adding significant weight to the frame.
• A weighted pulley system for pulling the saw motor up and down the guide tubes vs a spring loaded counter balance.
• Additional bearings within the motor providing a tighter cutting tolerance.
• Aluminum material rollers  instead of red material rollers .

Standard Equipment

• 3 Hp worm driven heavy-duty saw motor.
• 10 ft. welded steel frame.
• Chrome-plated 1 3/4″ guide tubes.
• 8 Nylatron roller bearing systems.
• Adjustable vertical and horizontal rulers.
• Quick change from vertical to horizontal cutting.
• Thin material pressure guard.
• Solid aluminum material rollers.
• Enclosed counterweight system.
• Integrated dust collection bonnet.
• TUV certified to UL/CSA standards.
