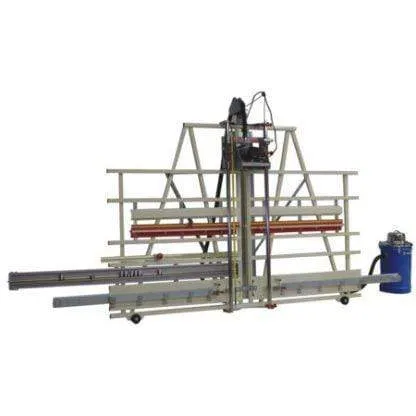

Safety Speed 3400 Panel Router

This dedicated machine routs large panels both vertically and horizontally on a heavy duty steel frame. With a powerful 3 ¼ horse power motor the specially designed router platform keeps consistent alignment from the face of the panel assuring a consistent depth of cut with cutting tolerance to .015. Whether it’s standard dados, blind dados, rabbet dados or V-grooving applications the 3400 is the best choice for dependable routing on a large scale.

Rout panels both vertically and horizontally on a 10’, heavy-duty steel frame with a powerful, 3 horsepower motor. The specially designed router platform provides a consistent alignment from the face of the panel assuring a consistent depth of cut with a tolerance of 1/64”. Whether it’s standard dados, blind dados, rabbet dados or v-grooving applications, the 3400 is the best choice for dependable routing on a large scale. Wheels, a stand and a dust kit are included as standard equipment on this machine. Ask about our air clamps for this machine.

Product demonstration

Standard Equipment

3 ¼ Hp, 15 amp router motor.
10 ft. welded steel frame.
Chrome-plated 1 ¾” guide tubes.
8 Nylatron roller bearing system.
Adjustable vertical and horizontal rulers.
Solid aluminum rollers.
Integrated dust collection bonnet.
Enclosed counterweight system.
Floating router head.
2 material clamps.
2 blind dado stops.
Extended warranty.

Specifications

Weight	660 lbs
Dimensions	124 × 17 × 92 in
Max. Crosscut	62'/1575mm
Max. Rip Cut	Unlimited
Max. Cut Thickness	1 3/4'/45mm
Cut Accuracy, Straight and Square	1/64'/.4mm
Motor	15 amp, 120V
Frame Length	120'/3050mm
