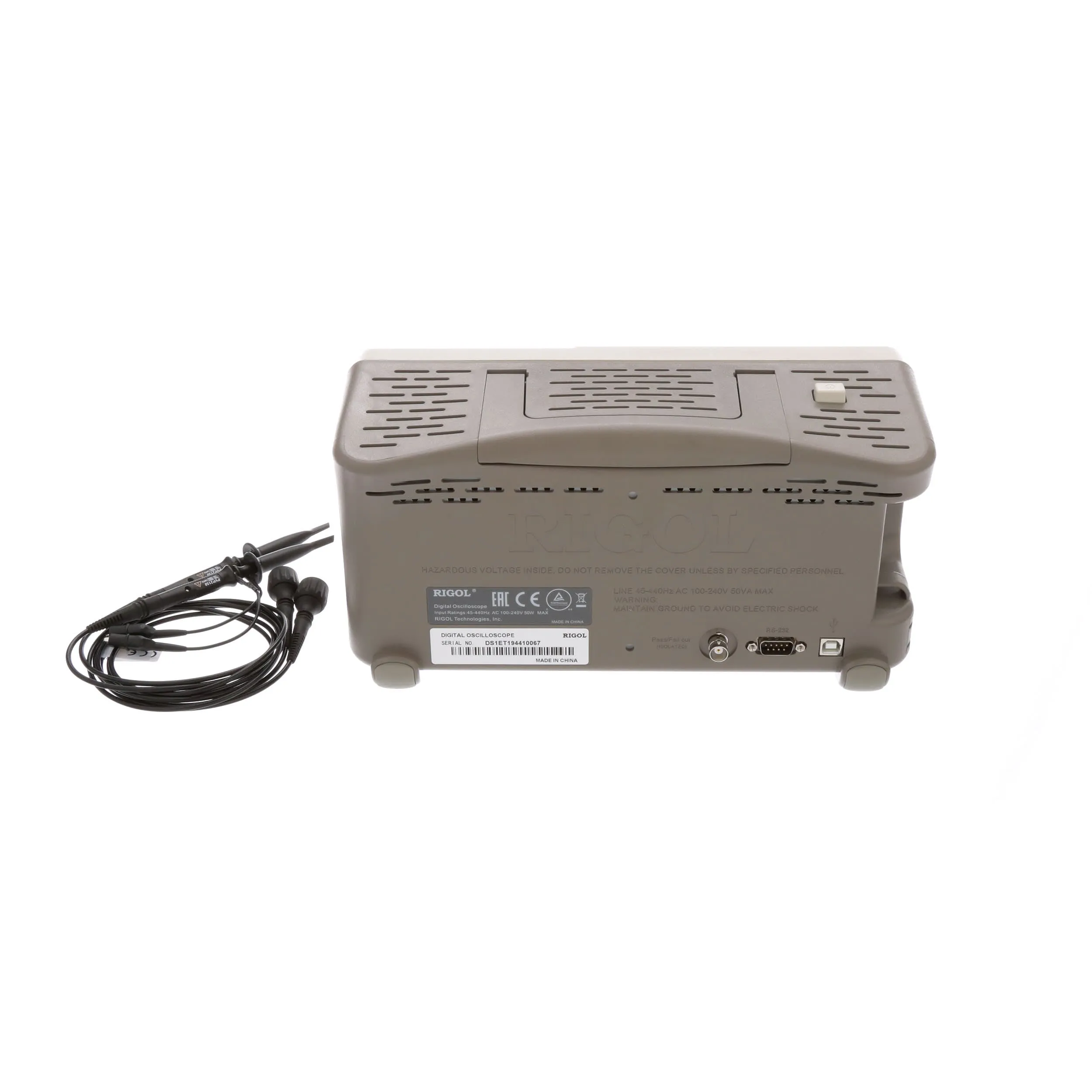

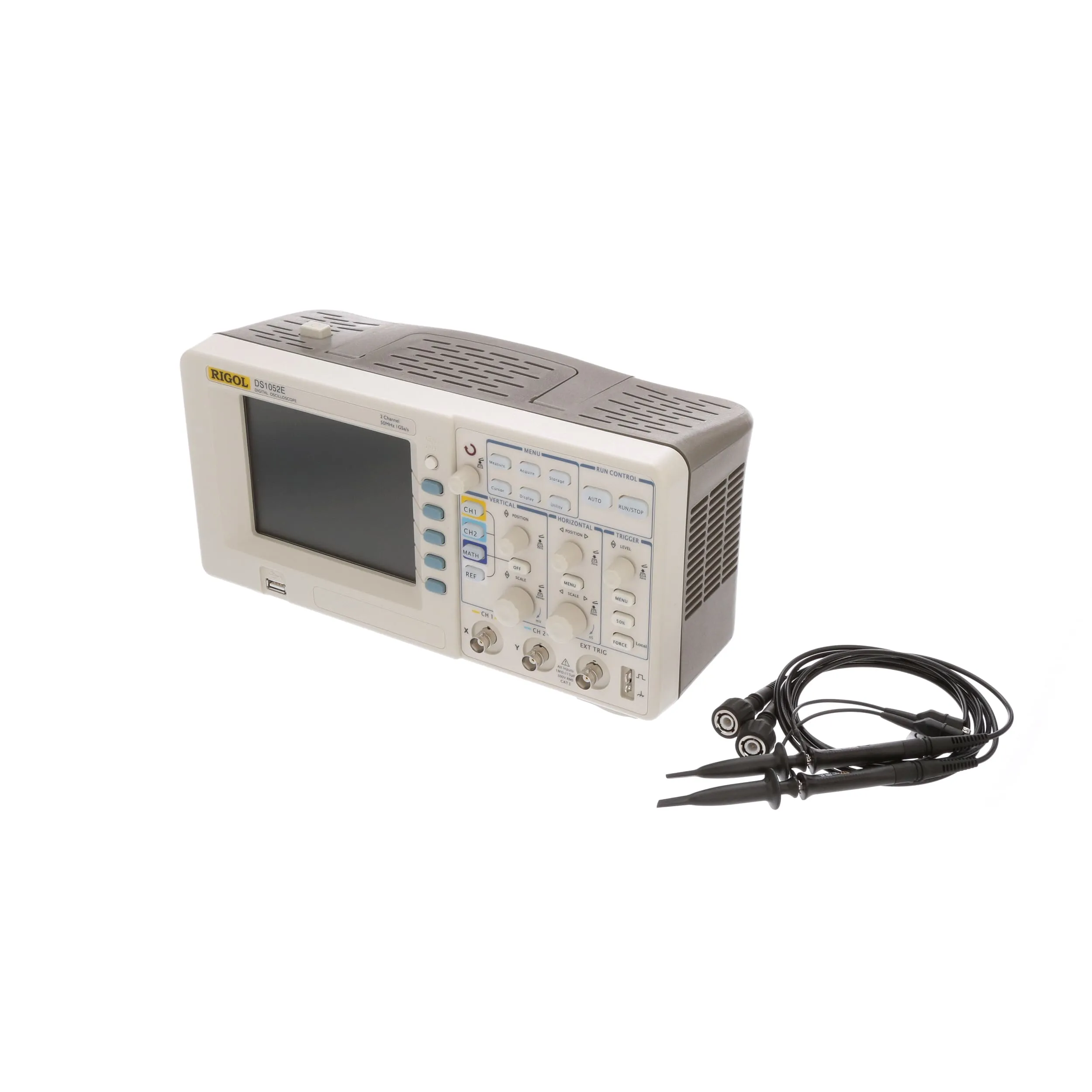

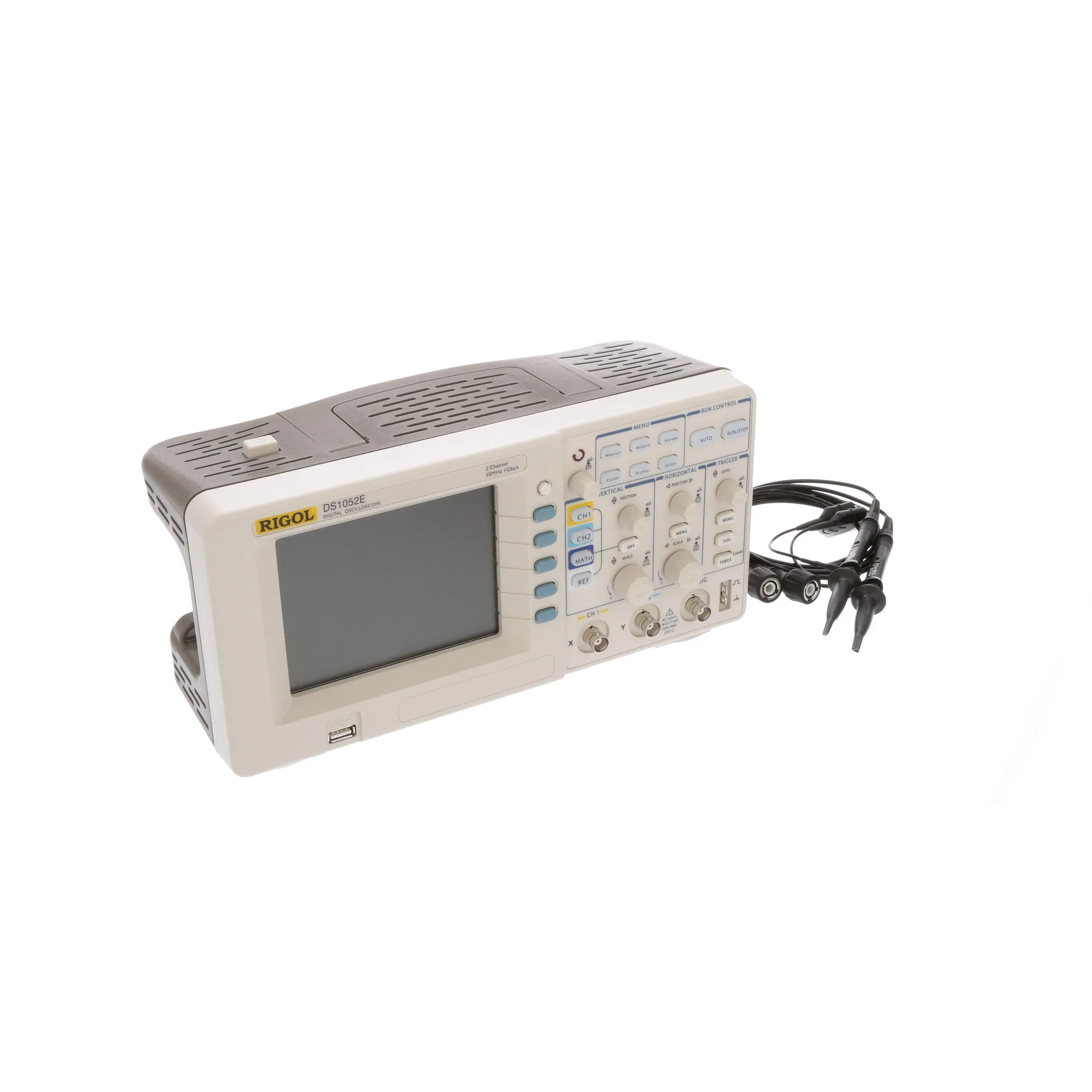

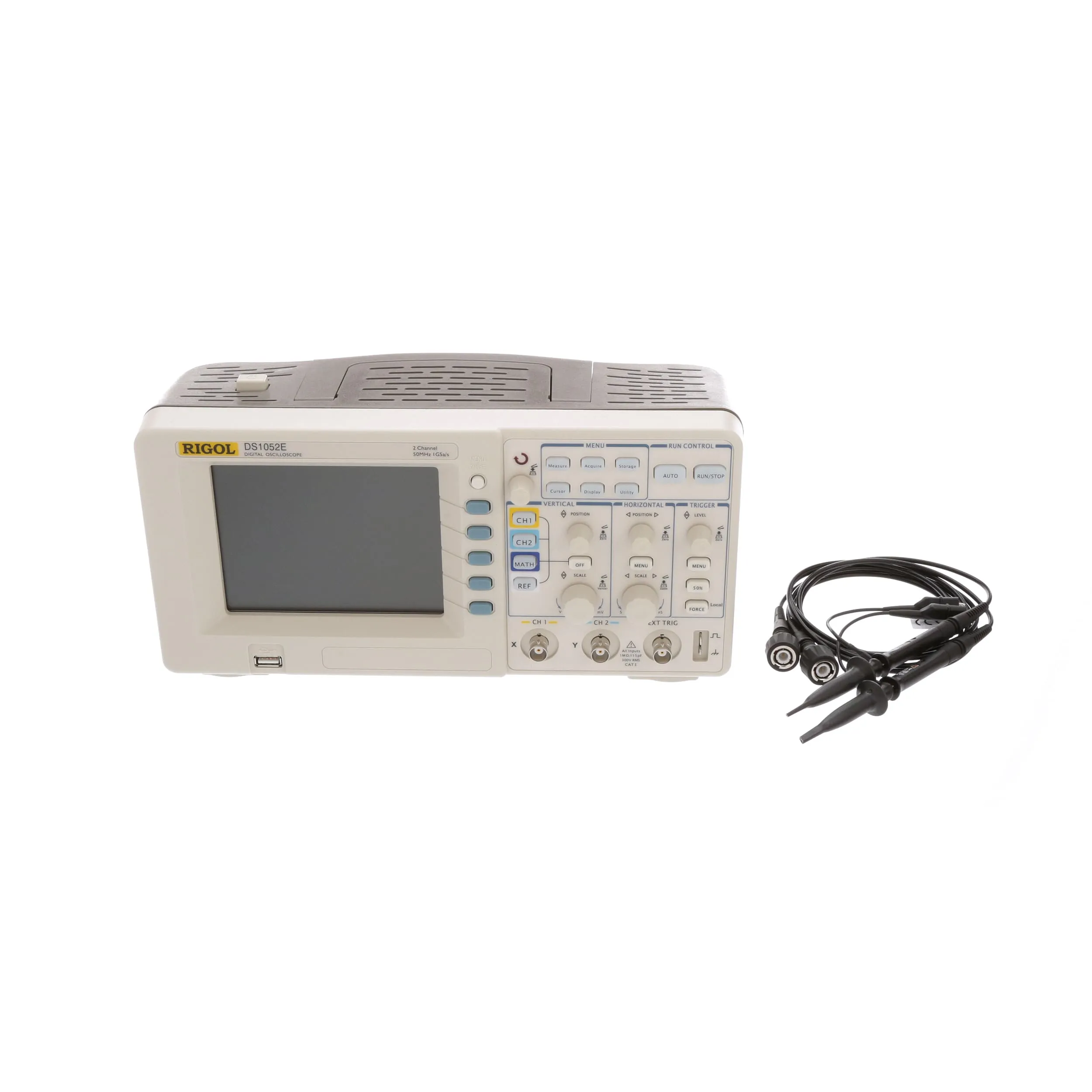

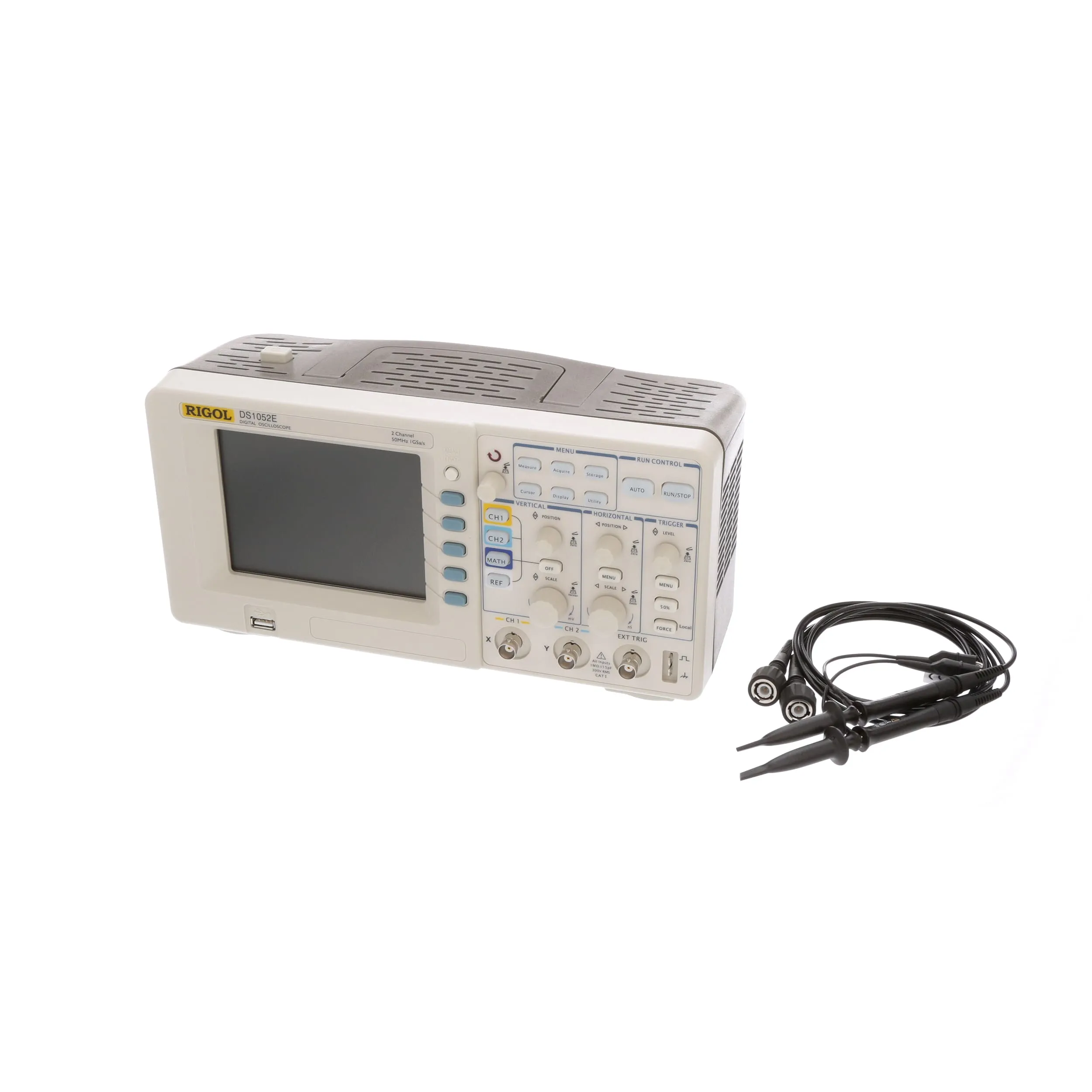

Name: RIGOL Technologies DS1052E
SKU: 997410

Product Details ＋

Product Attribute	Attribute Value
Bandwidth	50 MHz
Number of Channels	2 Channel
Sample Rate	1 GS/s
Series

Overview

The DS1000E and DS1000D are economical digital oscilloscopes with high-performance. DS1000E series are designed with dual channels and 1 external trigger channel. DS1000D series are designed with dual channels and 1 external trigger channel as well as 16 channels logic analyzer.

Main Features

Dual analog channels and 16 channels logic analyzer, 100MHz maximum bandwidth, 1GSa/s maximum real-time Sample rate and 25GSa/s maximum equivalent Sample rate

5.6 inch and 64 k TFT LCD make the waveform displays more clear and vivid

Abundant trigger types: Edge, Pulse Width, Video, Slope, Alternate, Pattern and Duration

Unique adjustable trigger sensitivity enables to meet different demands

Enable to measure 20 types of wave parameters and track measurements via cursor automatically

Unique waveform record and replay function

Fine delayed scan function

Built-in FFT function, hold practical digital filters

Pass/Fail detection function enables to output testing results

Math operations available to multiple waves

Powerful PC application software UltraScope

Standard configuration interface: USB Device, USB Host , RS-232 and support U disk storage and PictBridge print standards

The new function “Key Lock” can meet the needs of industrial production
