SD3108 Video

SD3108 Automatic Swing Door Hardware

Name: Olide SD3108 Automatic Swing Door Opener Hardware Supplier
SKU: 823528

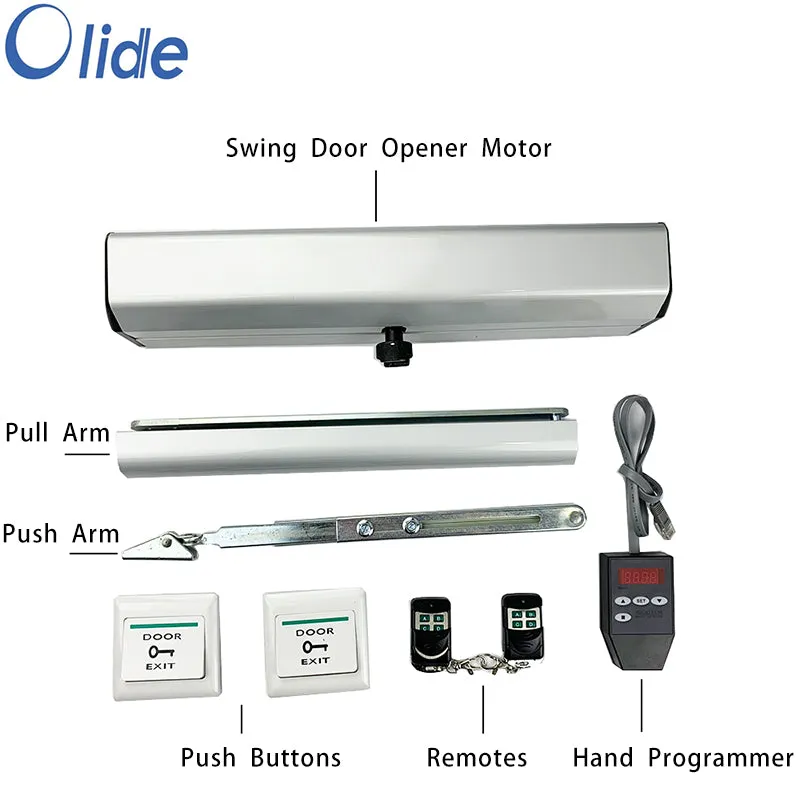

Package including:

Swing door opener motor,2 arms, 2 remotes, 2 push buttons, 1 hand programmer

Articulated arm and sliding arm both available, can be mounted on the hinge side and opposite hinge side.

Electric Swing Door Operator Features

Surface mounting
Push-Go: Automatic activation by pushing or pulling door panel
Quiet and aesthetically pleasing
Electric strike integration
Efficient and cost-effective

Note: Backup power supply is forbidden to ship, you can find it in your local market, it's DC12V type.

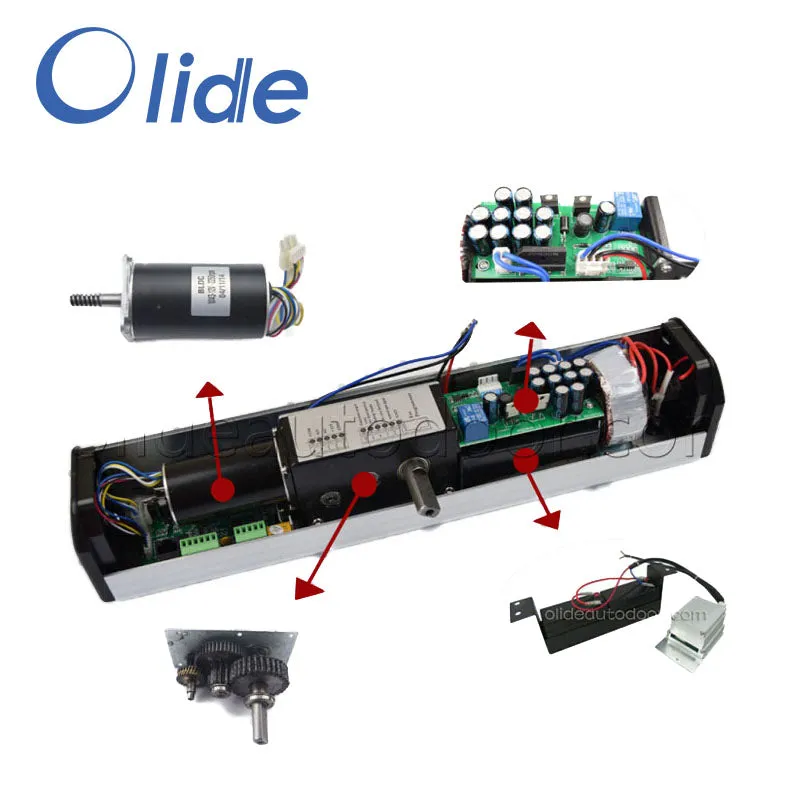

DC 12V brushless motor, more quiet and much safer;
Control board can connect with access control system,sensor or electric lock etc.
The gear box made of steel instead of plastic, more longer operating life;
Multiple function remote control, automatic, locked, open, remain opening, pause;

Note: One remote control can control multiple openers at the same time, and one door opener can connect 15pcs remote controls at the same time.

Easily adjustable opening&closing speeds, opening angle, hold-open time by hand programmer;
Safety system: the automatic protection device against overheat, overvoltage, overcurrent and obstacle-encountering.

SD3108 Automatic Swing Door Opener Applications:

Commercial
Residential
Hospital
Office
Washroom

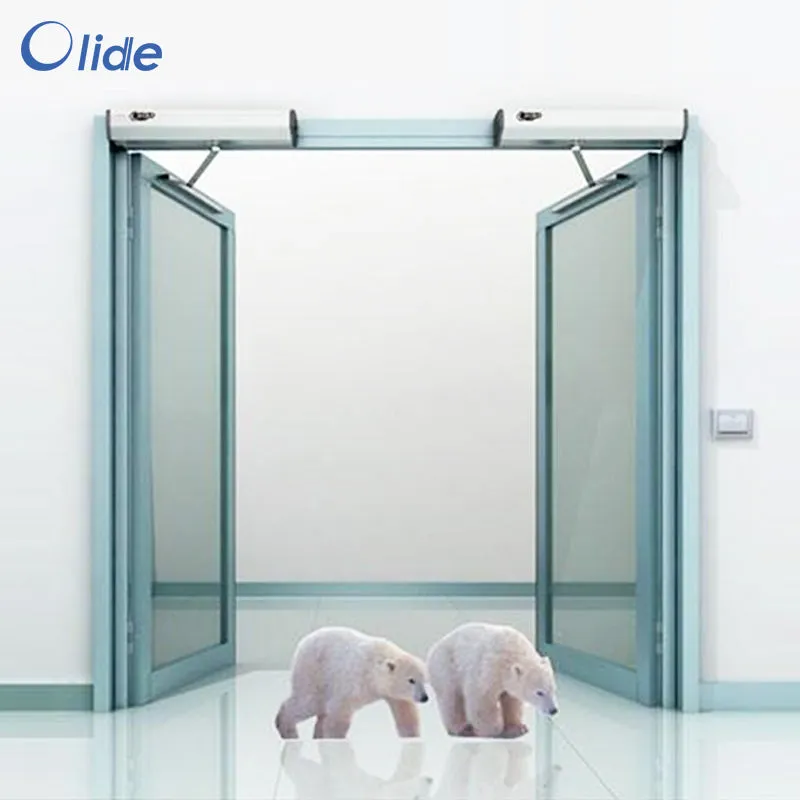

This kind of electric door opener can be widely used in residential subdistricts, retail stores, pharmacy, laundry, office, washroom, hospital, air shower, clean room, etc.

SD3108 Technical Specifications

Installation method	surface mounting (external)
Power supply	220V/AC,110V/AC, 50/60Hz
Motor	DC 12V brushless motor
Reted power	45W
Max. door width(single leaf door)	1200mm
Max. door weight(single leaf door)	120kgs
Opening/Closing speed	2-8 seconds(adjustable)
Opening time	0-120 seconds(adjustable)
Environment temperature	-20 -- 50°C
Manual force	<30N
Operation noise	<55db
Opening angle	60°~120°adjustable

Output voltage of power: DC24-12V for the optional accessories, such as body sensor; access device, safety beam, electric strike and others.

SD3108 Automatic Swing Door Opener Troubles Shooting

Trouble	Reason	Solution
No indicator LED lights on power supply	Power failure	Open the cover of machine body; check if the fuse of 220V/110V power is burned down. Open the outer crust and check if happens 220V or 110V power fuse blowout.
The remote control doesn’t work	Failure of remote control	Connect the port “door opening signal” with the public port “GND” by the wire; if the side of door opening is not allowed, check the machine power; if the signal of door opening is accepted, further check as per the following steps: 1. If the indication light is on when the key of remote control is pressed; if out, replace with the same kind of battery after opening the rear cover. 2. Re-learn the code of remote code; if it still doesn’t work, check if the receiver or remote control doesn’t work
Door knock	1. The brake doesn’t work well; 2. Too small of distance of damping speed 3. Too fast door closing	Turn up the braking force (Option E) Increase the damping close distance (Option 6) Slow down the speed of door closing
Door open not in place	1. The angle is not well adjusted; 2. The signal of door opening is sent before the powering on and resetting;	Adjust the angle of door opening (Option B) Reclose the power; close the door and then power on; send the signal of door opening after 60s
Door in unclosed state	1. The angle to be	Decrease the angle of door
