Features:

• 3 year warranty
• Analog bandwidth: 2 GHz (single-channel and half-channel modes)
• 4 analog channels, 1 EXT channel, and 16 standard configuration of digital channels (required to purchase the probe)
• Up to 10 GSa/s real-time sample rate
• Up to 500 Mpts memory depth (standard)
• High waveform capture rate (over 600,000 waveforms per second)
• Up to 450,000 frames of hardware real-time and ceaseless waveforms recording and playback functions
• Integrates 7 independent instruments into 1, including digital oscilloscope, 16-channel logic analyzer, spectrum analyzer
• Auto measurement of 41 waveform parameters; full-memory hardware measurement function
• A variety of math operations, built-in enhanced FFT analysis, and peak search function
• Waveform histogram analysis (standard)
• Independent search, navigation keys, and event table
• User-defined one-key quick operation
• 10.1-inch capacitive multi-touch screen, 256-level intensity grading display, with color persistence
• Multiple interfaces available: USB HOST&DEVICE, LAN(LXI), HDMI, TRIG OUT, and USB-GPIB
• Web Control remote command
• Unique online version upgrade
• Sophisticated and convenient industrial design, easy to operate

Accessories:

• USB cable
• 4 passive high-impedance probes (500 MHz)
• 2 passive low-impedance probes
• Front panel cover
• Quick guide (hard copy)

Specifications:

• 2 GHz
• 4 Channel
• 10 GS/s
• 1 MPts

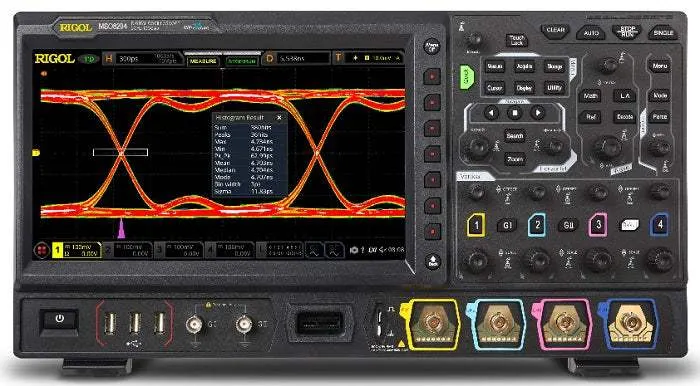

The MSO8204 is a medium and high-end mixed signal digital oscilloscope designed on the basis of the ASIC chip (RIGOL self-owns its intellectual property right) and UltraVision II technical platform developed by RIGOL. Integrating 7 independent instruments into one, the MSO8204 is equipped with the analog bandwidth of up to 2 GHz, extremely high memory depth of 1 Mpts, sound waveform display effects, excellent waveform capture rate, and powerful data analysis functions. Many of its specifications have reached the top level in the industry. Meanwhile, it supports the real-time eye diagram measurement and jitter analysis.
