Features:

• Analog bandwidth: 150 MHz
• 2 analog channels, 1 EXT channel, and a standard configuration of 16 digital channels (required to purchase the probe)
• Up to 4 GSa/s real-time sample rate
• Up to 100 Mpts memory depth (option)
• High waveform capture rate (over 300,000 wfm/s)
• Auto measurement of 41 waveform parameters; full-memory hardware measurement  function
• A variety of serial protocol triggers and decodes Up to 450,000 frames of hardware real-time and ceaseless waveforms recording and playback functions
• Independent search, navigation keys, and event table
• Built-in advanced power analysis software (option)
• Integrates 7 independent instruments into 1, including a digital oscilloscope, a logic  analyzer, a spectrum analyzer, an arbitrary waveform generator, a digital voltmeter,  a frequency counter and totalizer, and a protocol analyzer
• 9-inch capacitive multi-touch screen, 256-level intensity grading display, with color  persistence
• Multiple interfaces available: USB HOST&DEVICE, LAN(LXI), HDMI, TRIG OUT, and  USB-GPIB
• Web Control remote command
• Unique online version upgrade
• Novel and delicate industrial design, easy to operate

Accessories:

• Power cord conforming to the standard of the destination country - USB cable CB-USBA-USBB-FF-150
• 2 or 4 passive probes (350 MHz) PVP2350
• Quick guide (hard copy)

Specifications:

• 2 16 Channel
• 150 Hz
• 4 GS/s
• 50 MPts

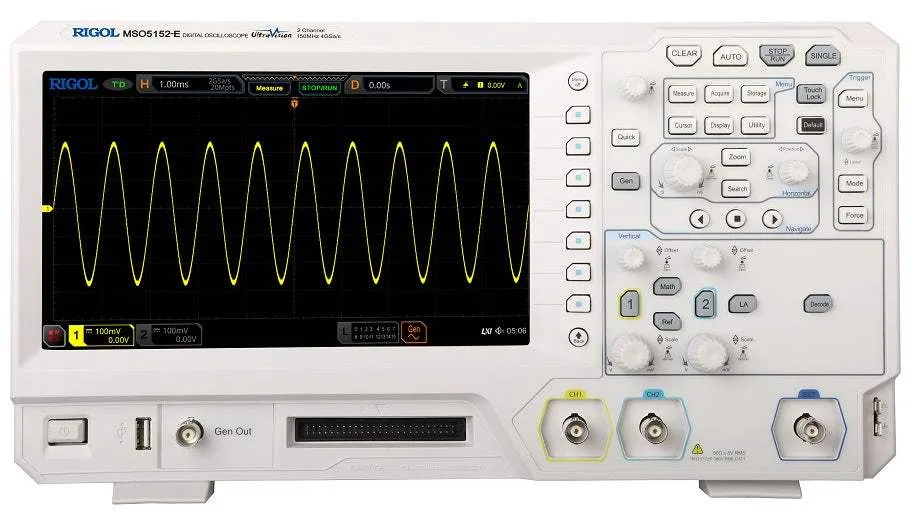

The MSO5152E digital oscilloscope is a high-performance oscilloscope model designed based on RIGOL UltraVision II technology. With a 9-inch capacitive multitouch screen, the MSO5000-E series integrates 7 independent instruments into one, delivering super sample bandwidth ratio, extremely high memory depth, and other excellent specifications. It is compact and portable in design, and all of the MSO5000-E series products support multiple channels, and the upgrade of the analysis software. As it integrates many functions of multiple instruments, different user groups can have more choices in selecting their desired product based on their needs, helping them save their budget to a large extent while enjoying the superior test support and user experience.
