Features:
- Specified performance to 43.5 GHz with Extended K™ ports
- Simple signal integrity testing of passive multiport and differential devices
- Advanced time domain option provides tools for signal integrity analysis
- Wide dynamic range enables measurement of very low reflection artifacts
- Excellent corrected directivity minimizes measurement uncertainty
- SmartCal™ auto calibration unit reduces calibration and setup time
- Time domain with time gating option enables TDR-like measurements
- Modern LAN interface for remote control is faster than GPIB
- A common GUI and SCPI interface within the ShockLine family
- The compact 3U high chassis allows for the efficient use of rack space
- Bias tee option simplifies test setups where the DUT needs DC biasing
- Universal Fixture Extraction (UFX) software option provides advanced de-embedding tools for test fixture extraction
Applications:
Differential Devices
- Cables
- Connectors
- PCBs
Automotive
- RF (FAKRA) connectors
- Driver assistance radar
Mobile
- UE – micro coaxial RF connectors
- UE – antennas, switches, diplexers
- 5G network components
General Purpose
- Passive Device Testing
- Connectors
- Cables
- Electromechanical
- Switches
- Attenuators
- Couplers
- Filters
- Isolators
- Circulators
- Radar connectors
- Near-field and far-field antenna measurements
System Integration Applications
- System calibration
- Differential path-loss characterization
- General multi-port s-parameter and time domain measurements
Simple Active Applications
- Amplifier characterization
Wireless Power Transfer Applications
- KQ product
- Maximum efficiency
Optical to Electrical, Electrical to Optical, and Optical to Optical Applications
- Photo receiver
- Laser modulator
- Optical transceiver
Specifications:
- 43.5 GHz

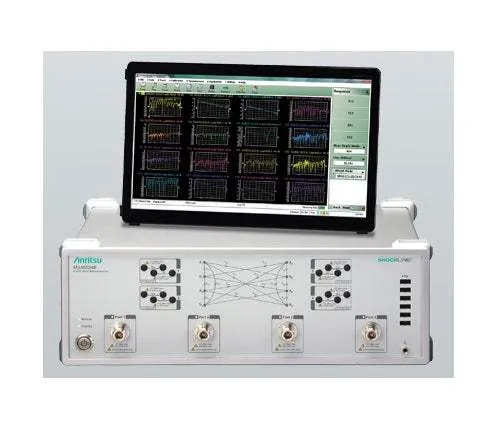

The ShockLine™ MS46524B series are 4-port performance vector network analyzers (VNAs). Delivering an unprecedented level of value and performance in a multiport VNA, this series lowers the cost-of-test and speeds time-to-market in numerous test applications up to 43.5 GHz. These include: characterizing and manufacturing multiport mobile network devices and equipment for 28 GHz and 39 GHz 5G applications; differential cables; high-speed data interconnects; and system integration components.
