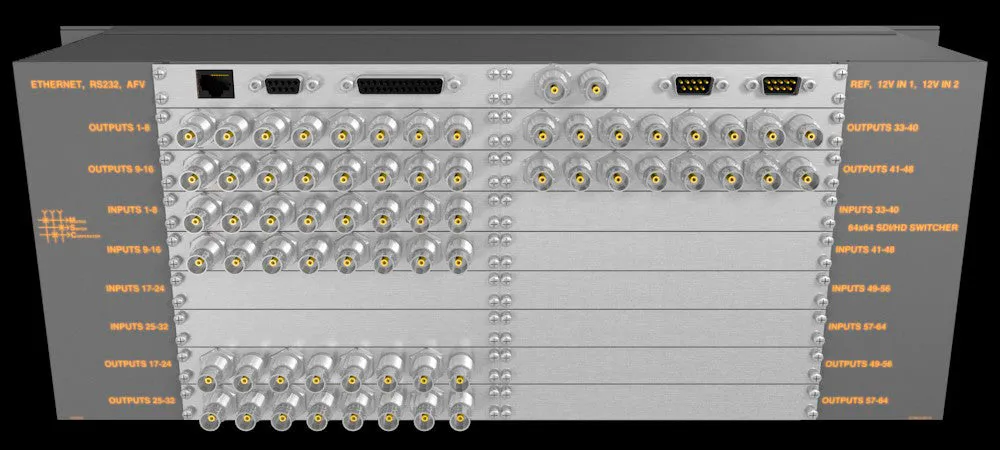

Matrix Switch Corporation modular 4RU SDI video routing switchers offer field expandable matrix size
configurations in I/O increments of 8 up to 64x64, with a total of 48 different models to choose from. These
systems are 4RU in height and less than 6 inches deep, allowing for installation in space limited situations.
Forced air cooling ensures low internal temperatures for long service life in the most harsh environments and a
redundant power supply is also included for added reliability.
Matrix Switch Corporation routers offer flexible and user friendly control, including a built in Javascript enabled web page interface and simple yet powerful text based control protocol which can be sent via TCP/IP, RS-232 Serial Port or the web page interface.
Features:
- Re-clocking of standard SD, HD and 3G SDI data rates
- Auto bypasses non-standard SDI rates from 20Mbit/s to 3Gbit/s
- Video mute on every output
- Passes SDI embedded audio and ancillary data
- Interactive web page interface (demo)
- Vertical interval switching
- Store and recall up to 10 presets (complete or partial matrix state recall)
- Compact design - 4RU less than 6 inches deep
- Software updates via Ethernet port
- Backed by a full 2 year manufacturer parts and labor warranty
- Flexible control using the MASCOT text based protoco l via TCP/IP, serial port or web page interface
- Redundant power supply included
- Can be used with one or more Matrix Switch Corporation TCP/IP Remote Panels
