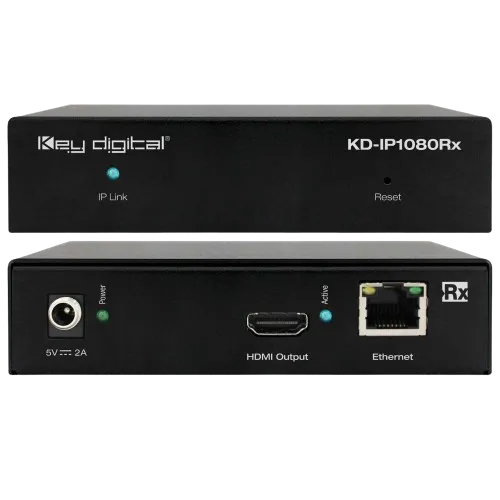

Key Digital’s 1080p AV over IP system, consisting of KD-IP1080Tx & KD-IP1080Rx, may be scaled to fit any installation need. Add a KD-IP1080Tx per video source or KD-IP1080Rx per video display and use a verified network switch as the central point of this HDMI AV routing and distribution system.

Features

• H.264 Compression: Ideal standard for large video distribution applications
• Data Stream Bandwidth: < 15Mbps
• Low-bandwidth System: Supports managed 100BaseT or Gigabit network switches
• Custom System: Add Tx and Rx extenders to an existing system to expand HDMI over IP up to 1024 Tx units and unlimited amount of Rx units
• Power Over Ethernet: Carry power to Tx and Rx units with a Power Over Ethernet enabled Smart Managed Switch
• Signal Extension: Up to 400 ft. @ 1080p@60 (2.25Gbps) using CAT5e/6 UTP/ STP cable
• Connectivity: Can be connected through a network IP switch or point-to-point
• Alternative Extension Methods: Enabled by low-bandwidth data streaming technology. Wifi Extender up to 100 ft, IP over Coaxial: Up to 1000 ft
• Resolution Support: Supports up to 1080p@60 (2.25Gbps) and compatible with DVI1.0/HDMI/HDCP1.x
• Audio Format: Supports 2ch PCM at 44.1/48kHz
• Control System Support: Key Digital® app ready. Key Digital Management Software™ Pro (KDMS™ Pro) ready, Compass Control® Pro ready. Fully controllable by all IR, RS-232, and TCP/IP supported control systems via open API.
• Source/Display Control: Integrate with KD-CX800 to add 3 IR, RS-232 or Trigger ports
• Key Digital App Ready: Can be controlled over TCP/IP via Key Digital® App
• Control App Stabilization: One KD-CX800 or KD-MC1000 control gateway required for control by professional control system.

Specifications

• Tx Input: 1 HDMI Connector, Type A, 19 Pin Female
• Tx Output: 1 HDMI Connector, Type A, 19 Pin Female; 1 CAT5e/6 on RJ45

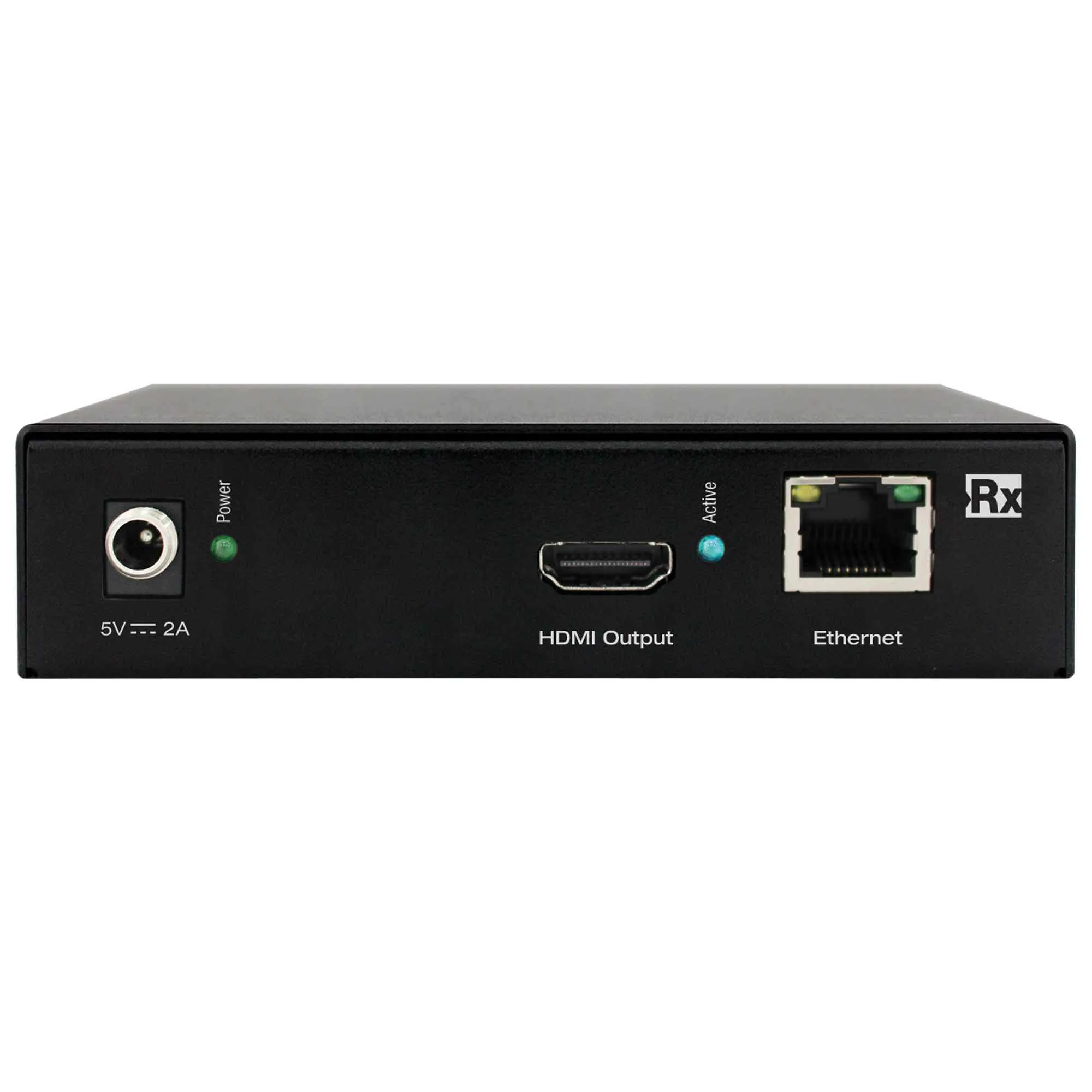

• Rx Input: 1 CAT5e/6 on RJ45
• Tx Output: 1 HDMI Connector, Type A, 19 Pin Female
• RJ45 LAN: Shielded TCP/IP 1G/100BaseT, PoE
• TMDS Bandwidth: 2.25 Gb/s per Channel
• Deep Color Support: Supports digital video formats in Deep Color Mode up to 12 bits/color
• Link: Single Link
• DDC Signal (Data): Input DDC signal – 5 Volts p-p (TTL)
• HDMI Video/Audio Signal: 1.2 Volts p-p
• DDC Communication: EDID and HDCP buffering between source and display
• Power: KD-PS5V2ASC, 5V/2A, 100-240VAC, 50-60Hz, Interchangeable head, screw-in connector. KD-IP1080POE POE power consumption ≤ 6 watts per unit


General

• Regulation: CE, RoHS, WEEE
• Enclosure: Black Metal
• Rack Mount: 3U with KD-RK120PLT bracket (sold separately)
• Product (Each): 4.74” x 3.11” x 1.16”, Weight: 0.6 lbs
• Packaging: 6.2” x 4.2” x 3.7”
• Weight: 2 lbs
