Product Details
＋
-

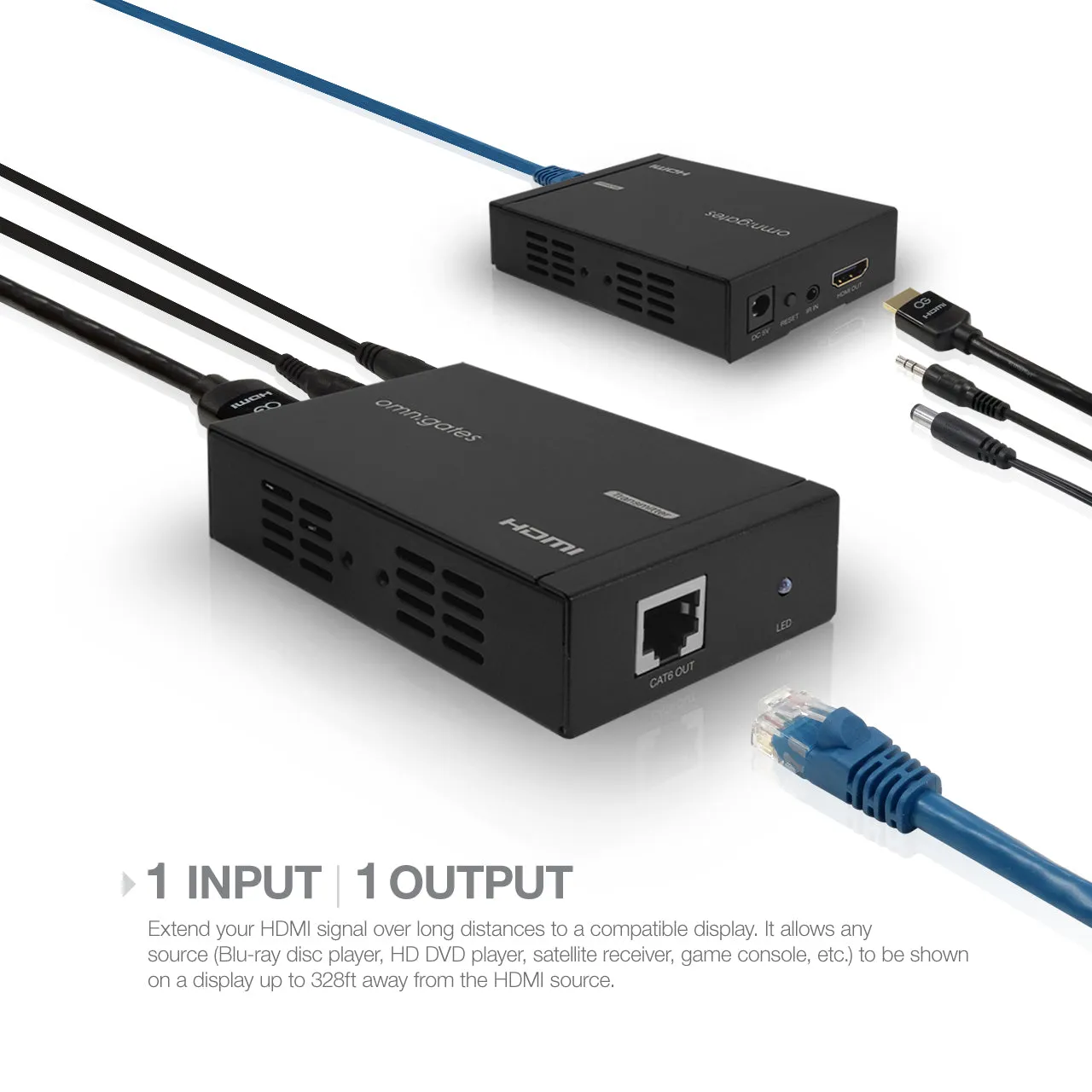

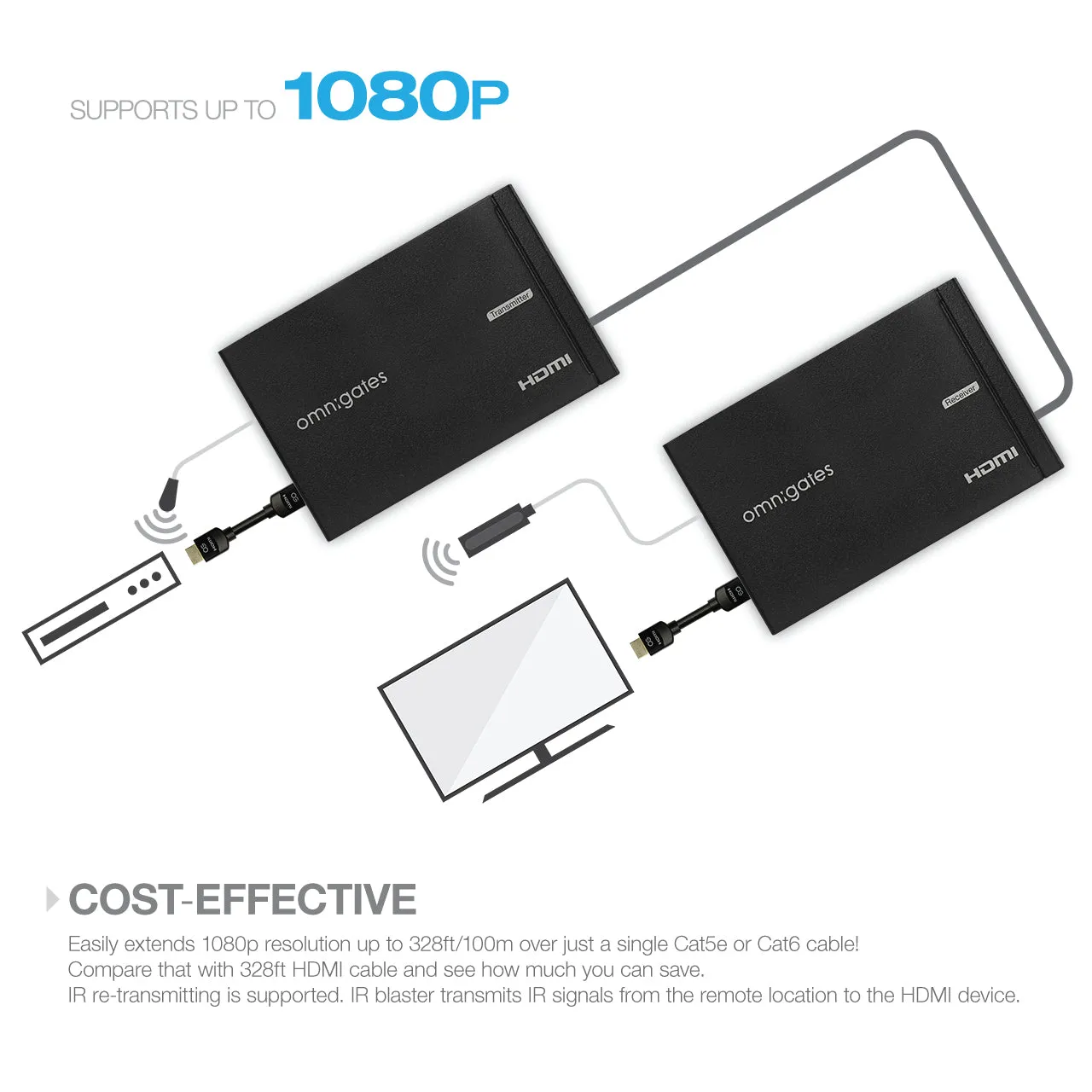

The HDMI® EXTENDER over single CAT6 with IR is a tool for extending your HDMI signal over long distances to a compatible display. Instead of using expensive HDMI cables, your existing CAT5E/6 cables/sockets can be utilized to perform advanced functions like transferring 12-bit per channel Deep Color and digital audio, with a bandwidth up to 225MHz. The HDMI Extender also support IR re-transmitting, so you can control the source which is 328 feet (100 meters) away using this HDMI Extender.
- Input/Output length: Extends up to 100m (328ft). Uses Cat5E/6 cable for data transfer
- Supported Video Color: Supports 12-bits/channel Deep Color
- Interference reduction: Utilizes TMDS data to reduce electromagnetic interference. Equalizes and recovers incoming TMDS data.
- Supported Cable: CAT5E/6 cable are supported for data/DDC transmission
- Remote control: IR re-transmitting is supported. IR blaster transmits IR signals from the remote location to the HDMI device.
-
- Frequency Bandwidth - 2.25Gbps
- Input Ports - 1 HDMI port / 1 CAT6
- Output Ports - 1 HDMI port / 1 CAT6
- ESD Protection - ±8kV (Air-gap discharge) / ±4kV (Contact discharge)

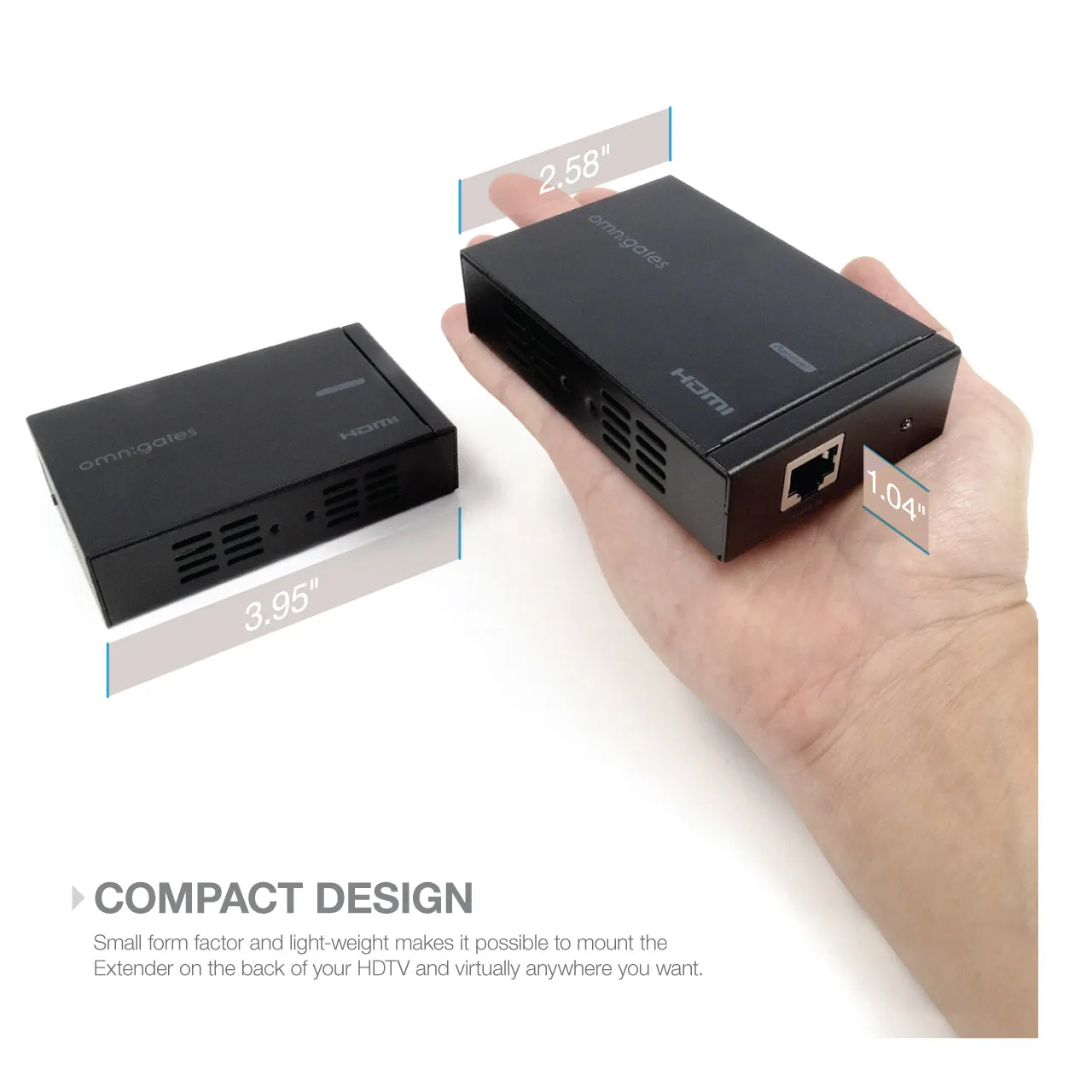

- Dimensions - 2.6" x 3.9" x 1.0
- Operating Temperature - 32ºF ~ 104ºF (0ºC ~ 40ºC)
- Storage Temperature - -4ºF ~ 140ºF (-20ºC ~ 60ºC)
- Relative Humidity - 20 ~ 90% RH (Non-condensing)
-

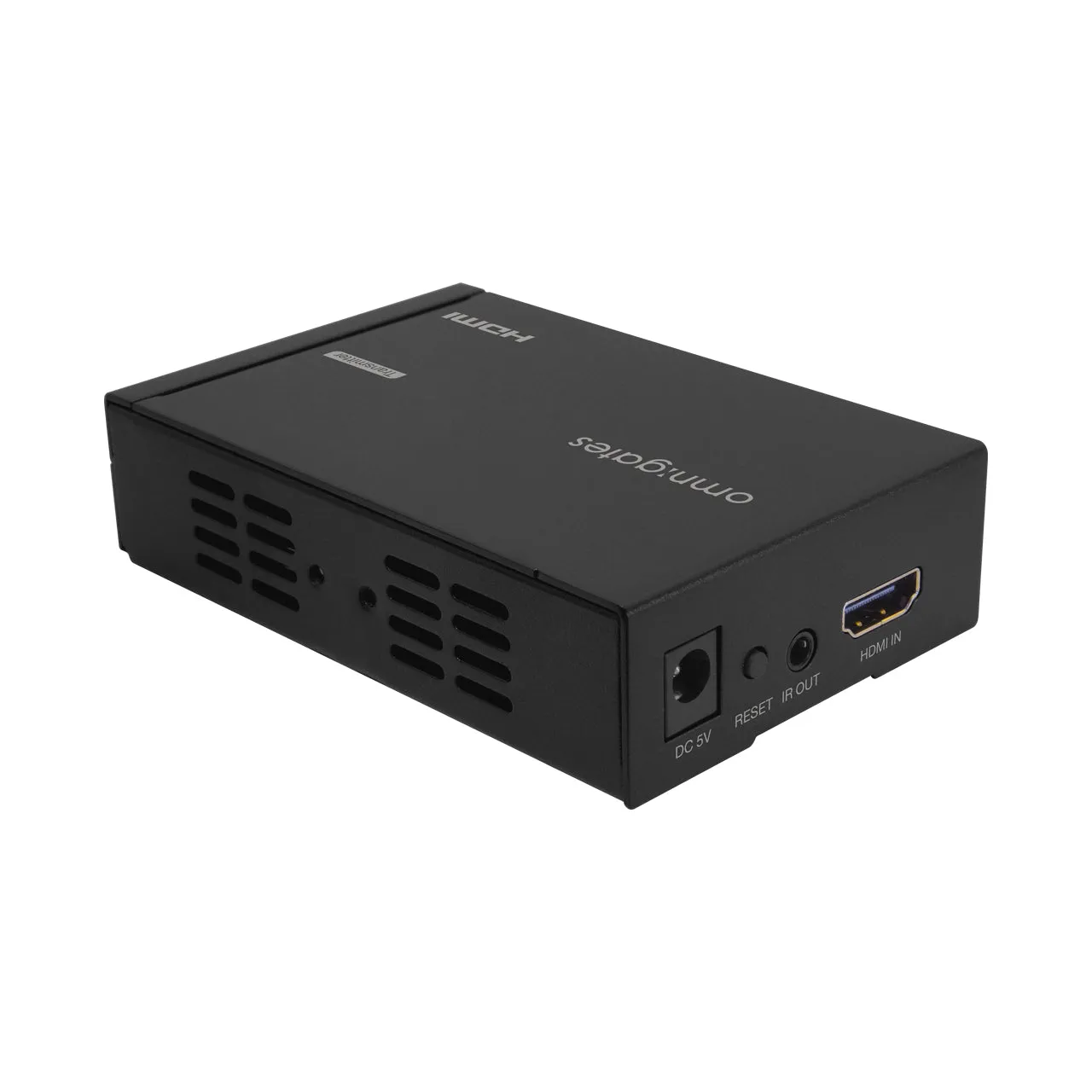

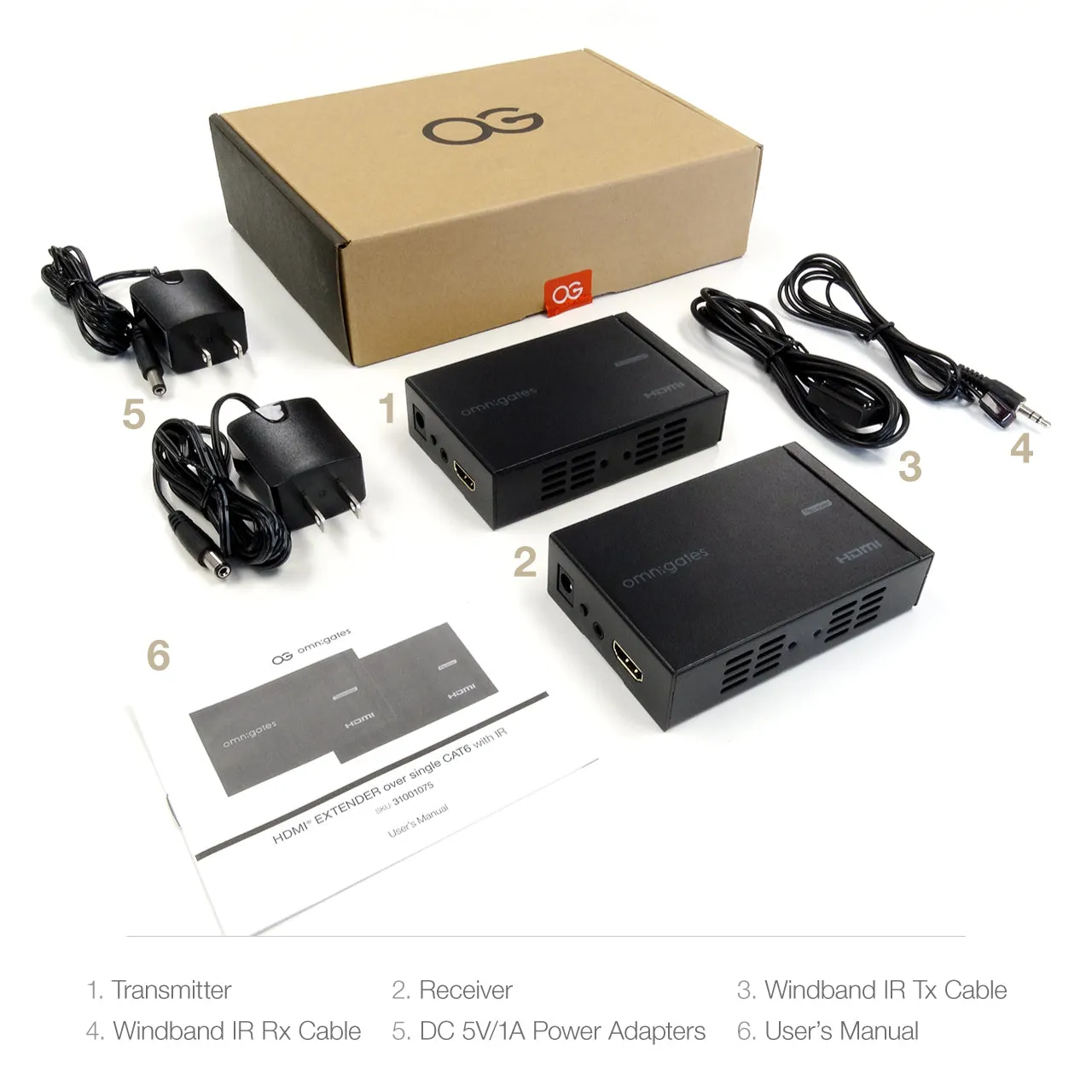

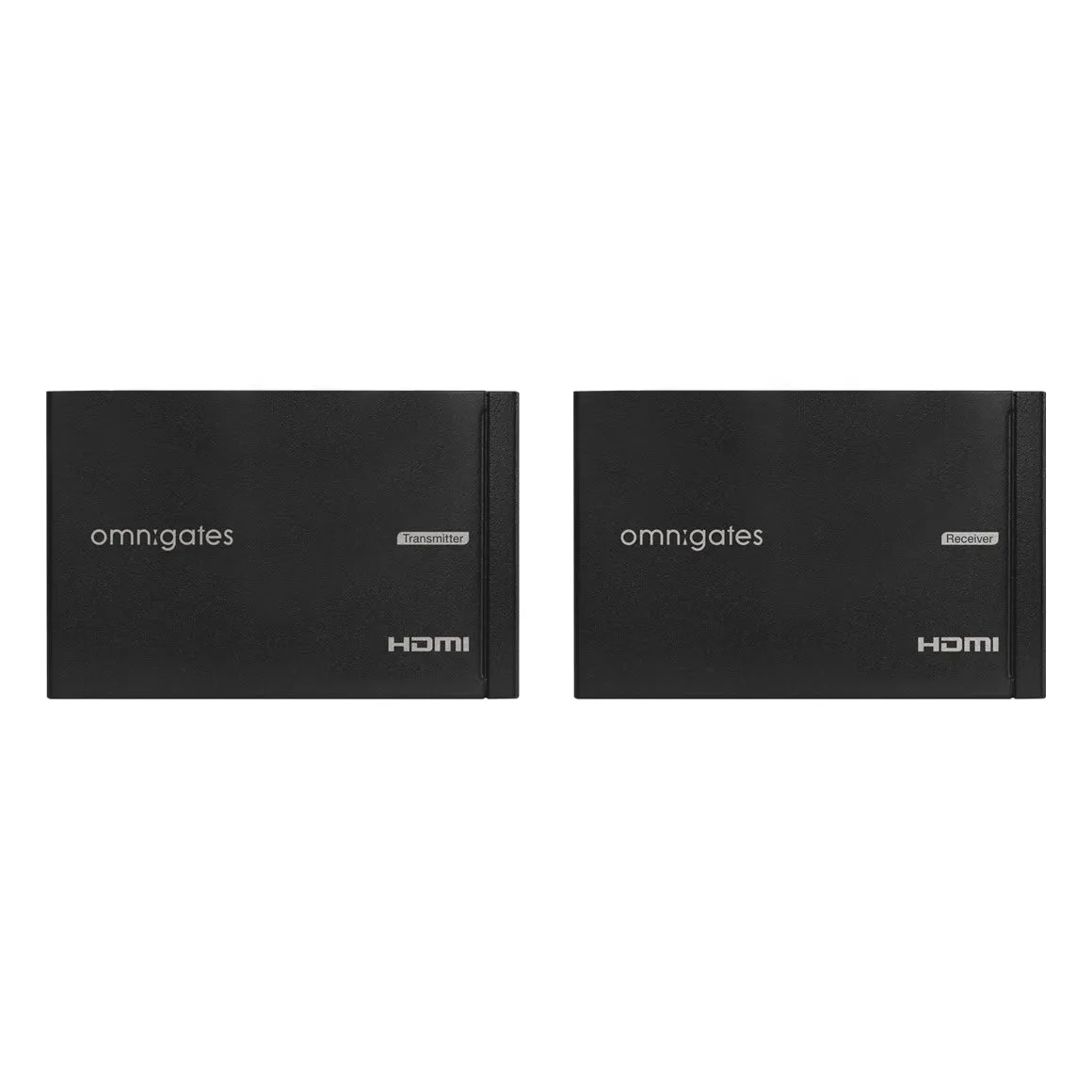

- 1x HDMI Extender Transmitter

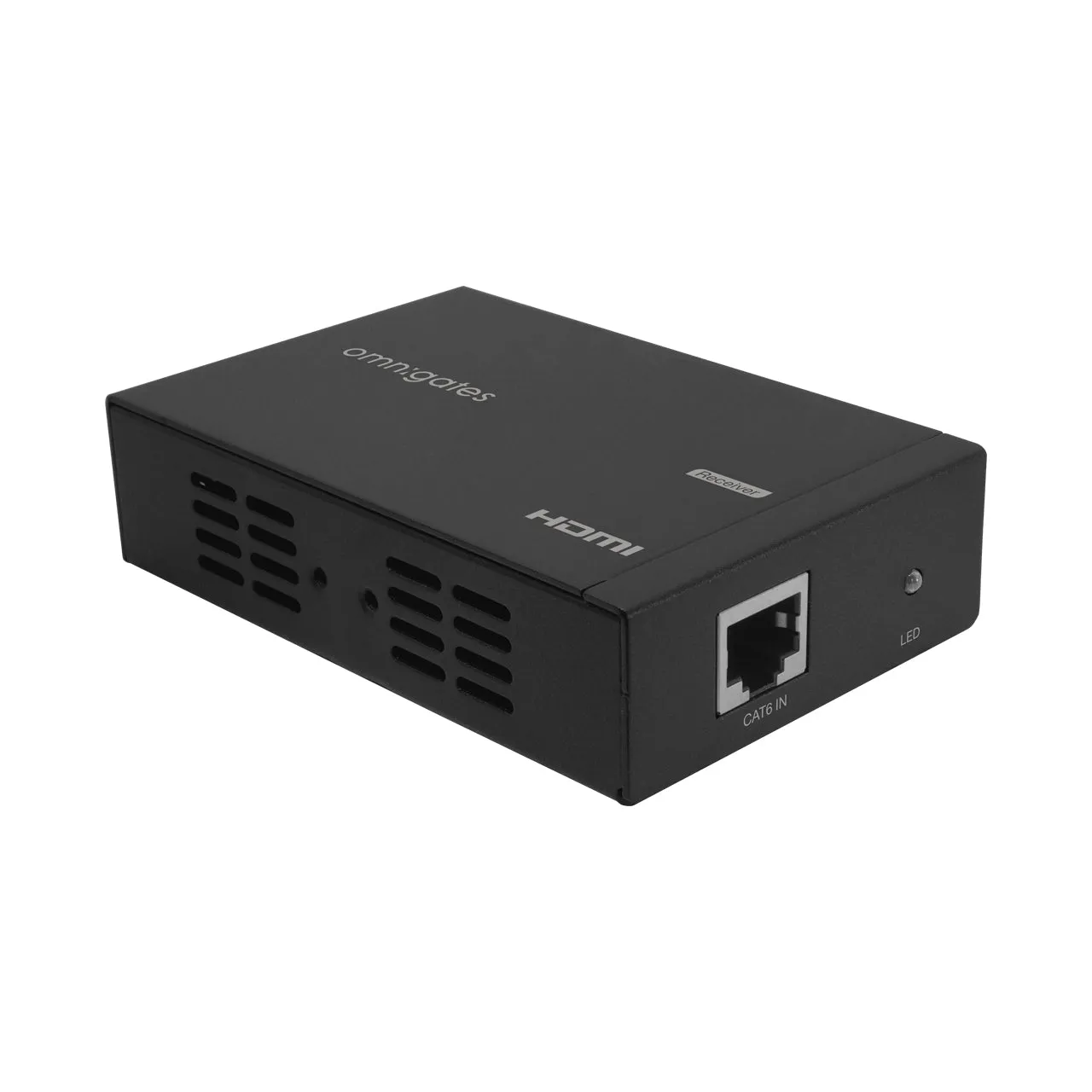

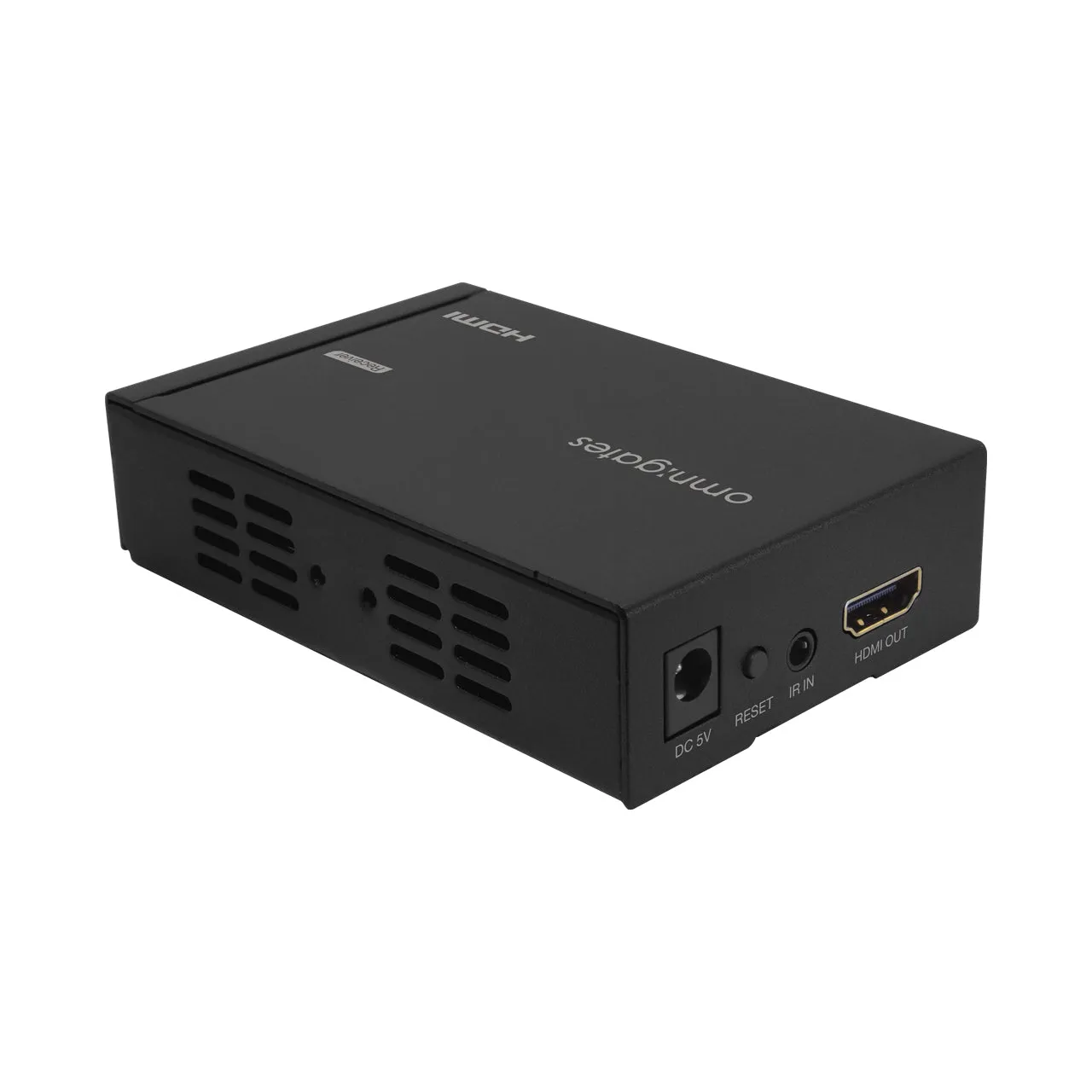

- 1x HDMI Extender Receiver
- 1x IR Transmitter
- 1x IR Receiver
- 2x DC 5V/1A Power adapters
- User's Manual
-
- HDMI 1.3, HDCP 1.1 and DVI1.1 compliant
- Supports 12-bits/channel Deep Color
- Support IR re-transmitting
- CAT5E/6 cable for data/DDC transmission
- Equalizes and recovers incoming TMDS data
- IR blaster transmits IR signals from the remote location to the HDMI device
