Product Details
＋
Full Assembled
Built To Suit Your Needs
High Quality

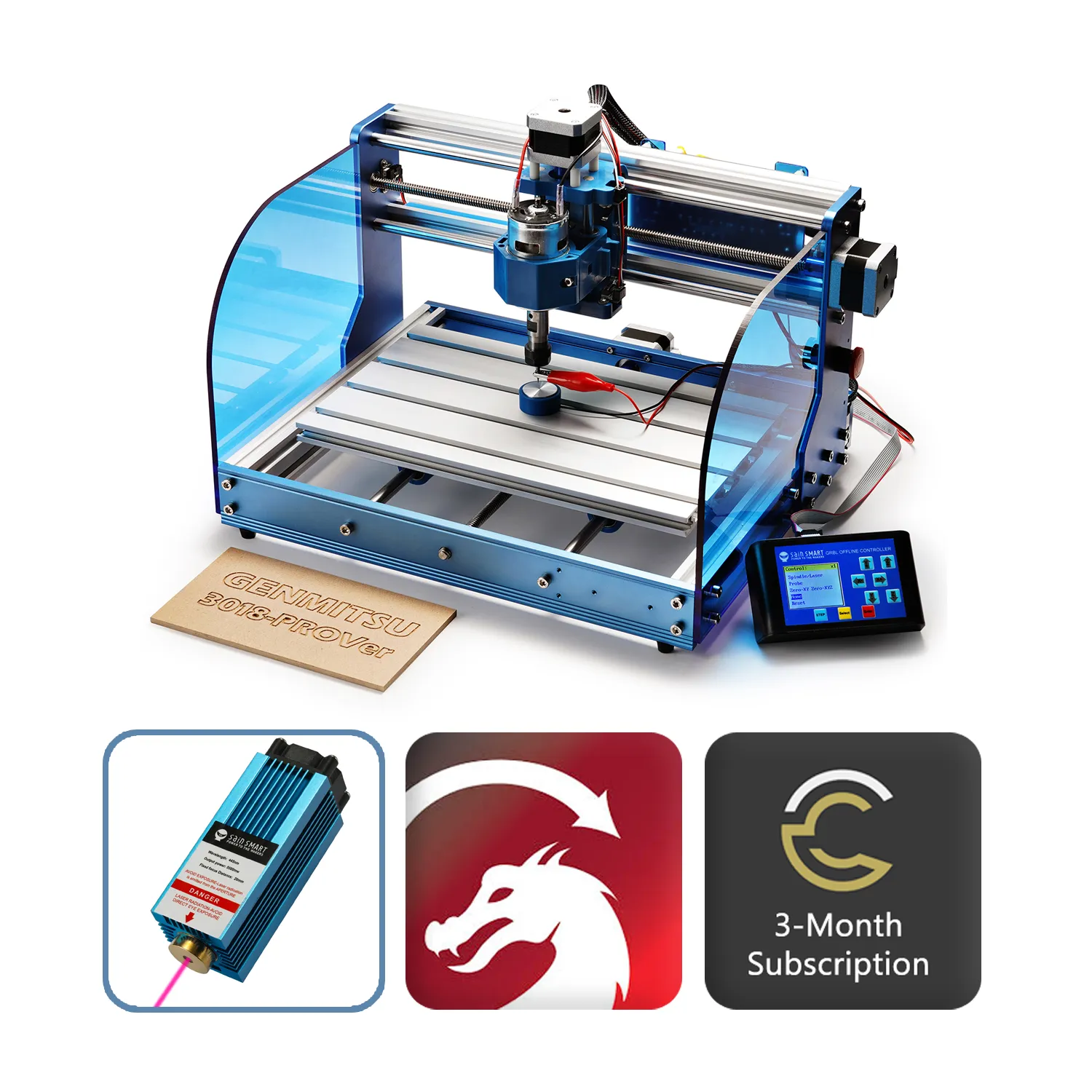

Genmitsu 3018-PROVer is the successor to the . The new version features improvements in design and safety, pre-assembly, and an upgraded mainboard. Whether you’re a CNC beginner, hobbyist, or small business owner, this is an excellent choice. With an all-aluminum body and an oxide blue finish, the 3018-PROVer offers a premium look and feel.

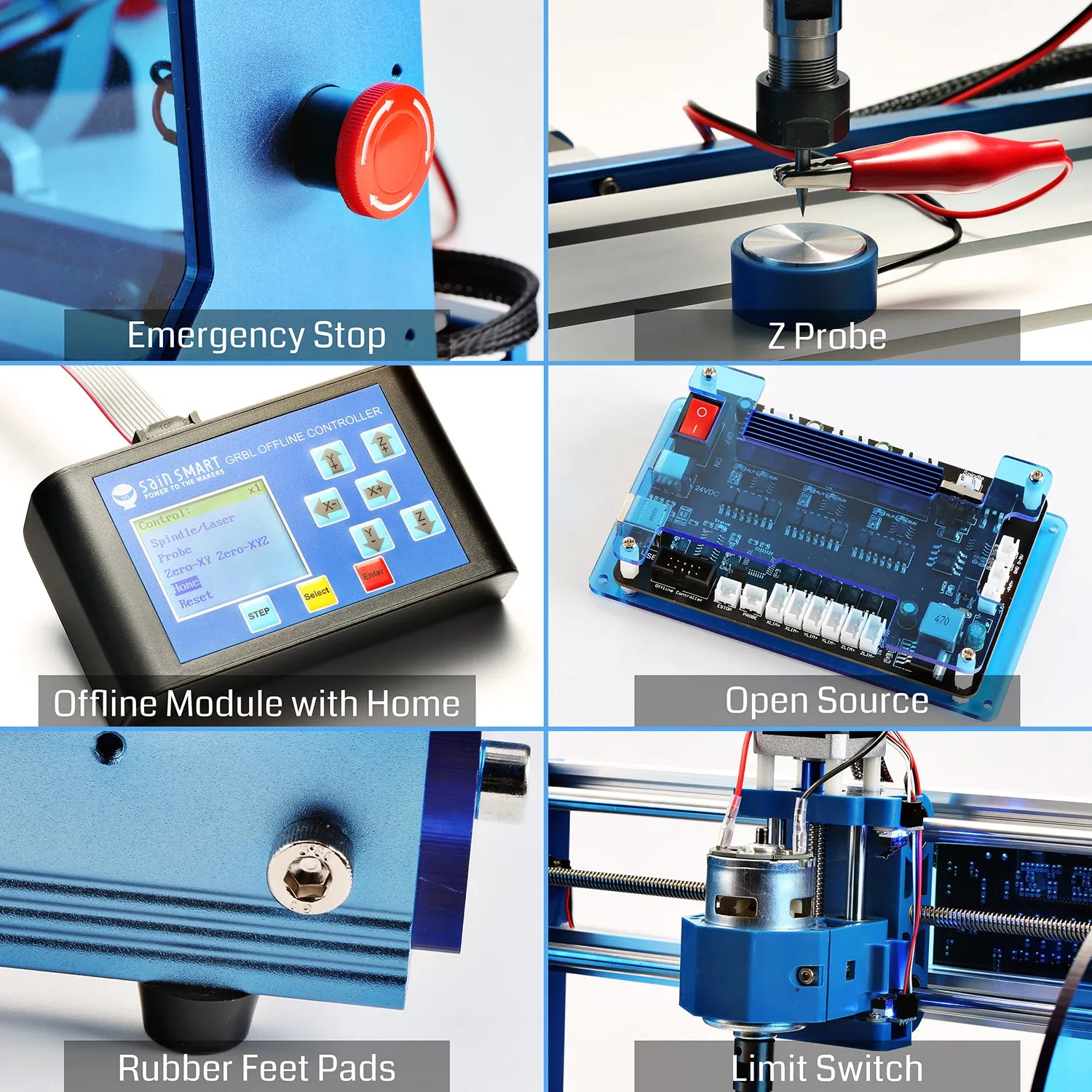

Safety Design
The 5mm acrylic baffles block flying pieces of wood or other materials, allowing you to safely monitor the engraving process. The machine also includes an and .

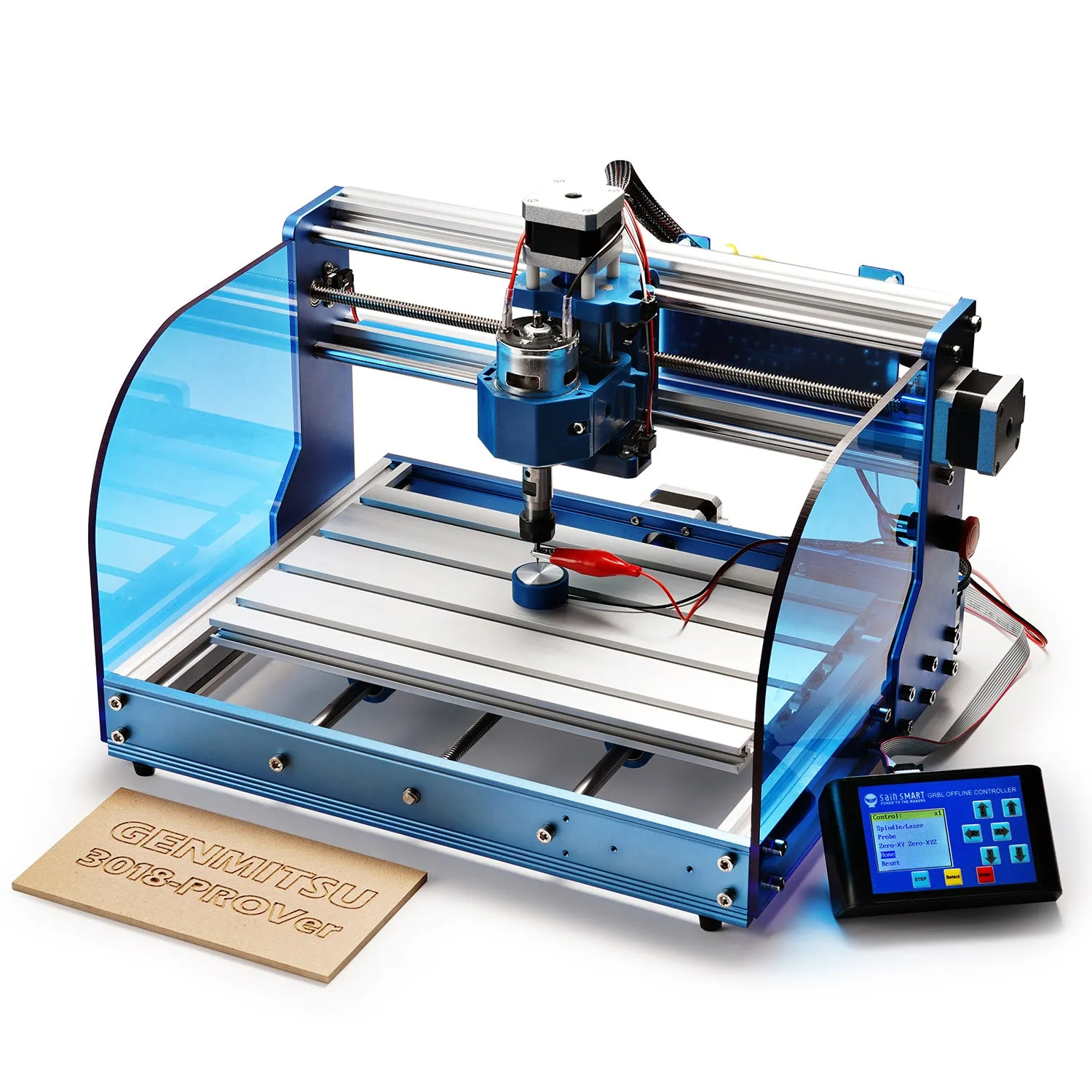

This machine comes with a newly designed offline controller featuring a 1.8" display, allowing clear readouts and control without connecting to a computer.
For experienced CNC engraving enthusiasts, the SainSmart laser module kit can be added for enhanced creative possibilities.
SPECIFICATIONS
- Effective Engraving Area: 260 x 155 x 35mm (10.2 x 6.1 x 1.4”)

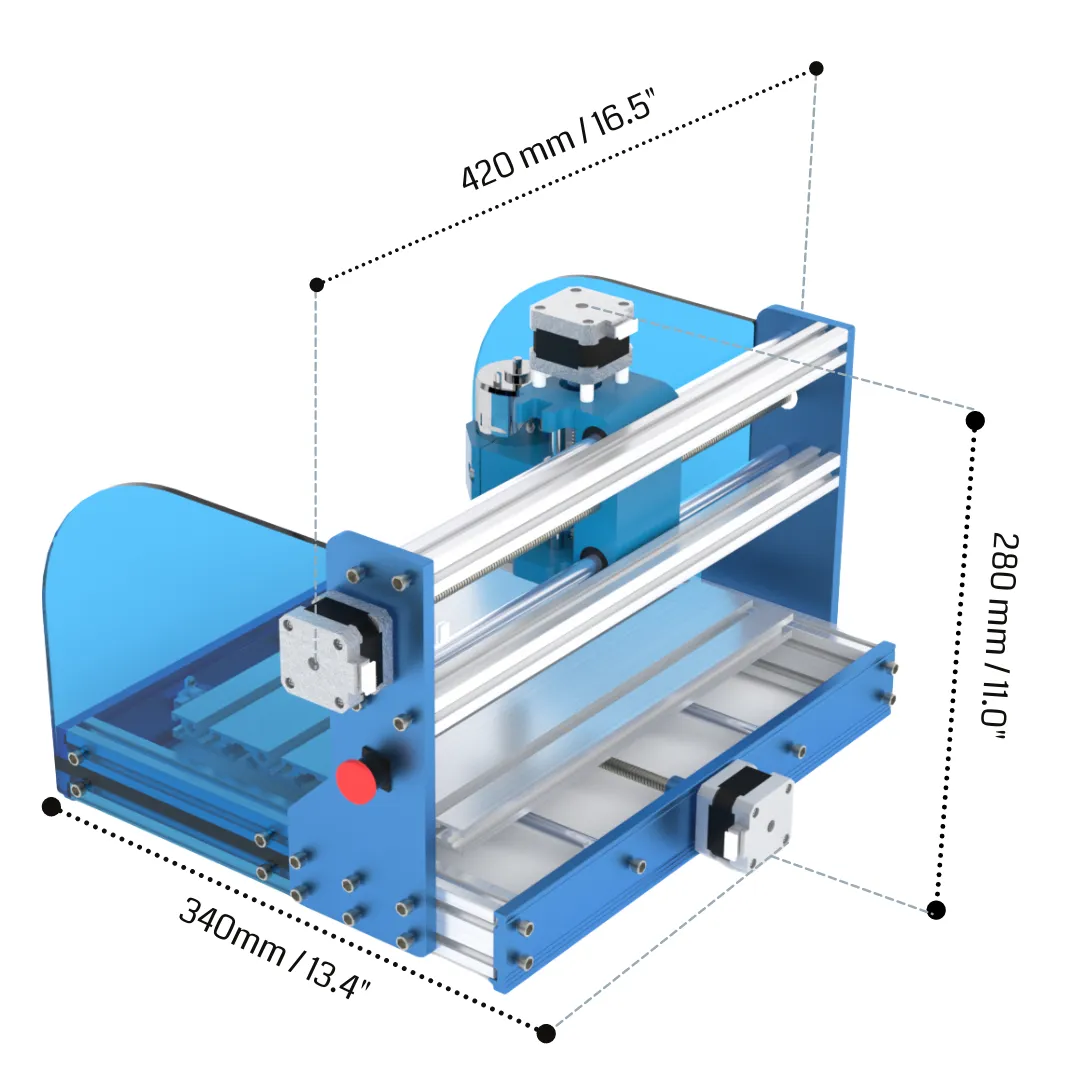

- Frame Size: 420 x 340 x 280mm (16.5 x 13.4 x 11.0”)
- Frame Material: Aluminum
- Z-Axis Component Material: ABS
- Spindle: 775 motor, 12V~24V, 10000 RPM
- Rated Power: 60W; Maximum Power: 120W
- Step Motor: 1.3 A, 12V, 0.25 Nm torque (2.2 in-lb)

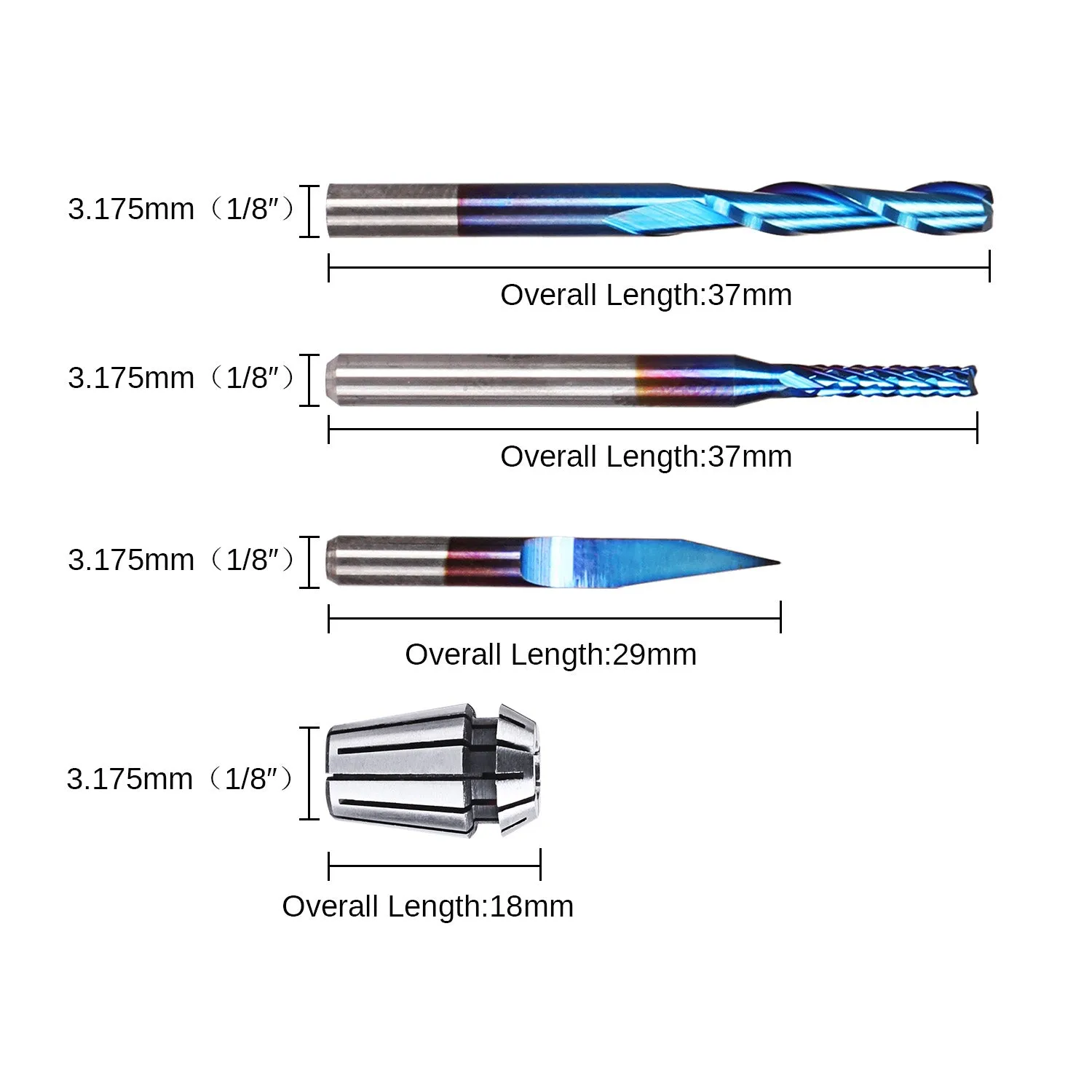

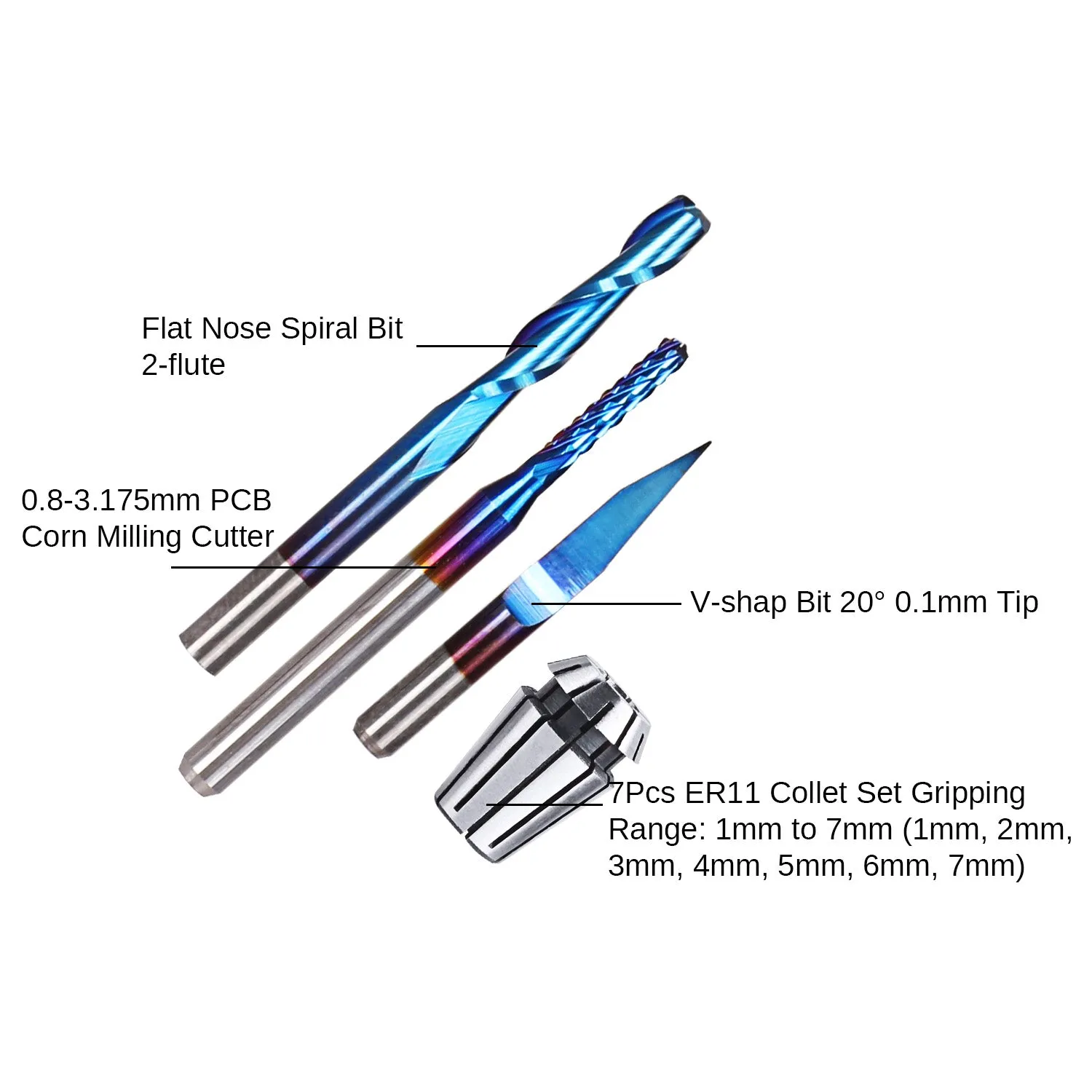

- Drill Bits: Tip 0.1 mm, 20 degrees, Diameter 3.175 mm
- Supported OS: Windows XP, Windows 7 32/64 bits, Windows 8, Windows 10, Linux, Mac OS
- Software: Grbl control (Candle)
- Power Supply: 24V/4A, with CE, FCC & PSE certifications
- Perfect for: Hobbyists, Crafters, Woodworkers, Industrial Designers, Educators, Engineers, Jewelers, and more!

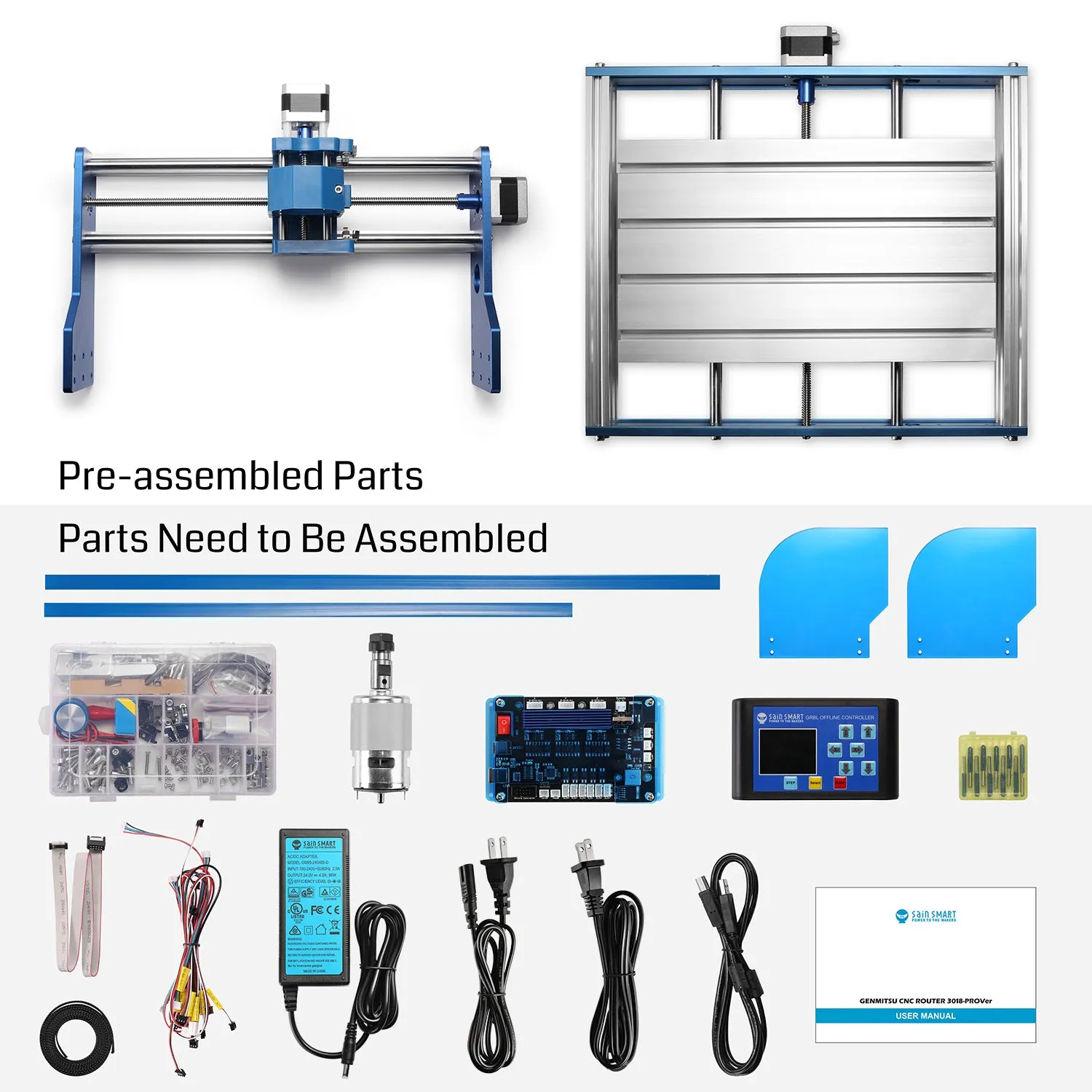

WHAT'S IN THE PACKAGE
Full Assembled Kit
- 1 x 3018-PROVer CNC Router Machine
- 1 x Offline Control Module
- 1 x Tools Box
- 1 x Screw/Nut Accessories Box
| Model | Fully Assembled 3018-PRO | Fully Assembled 3018-PROVer | 3018-PROVer Mach3 | 3018-MX3 | |
|---|---|---|---|---|---|
| Genmitsu | |||||
| Assembly Time | 2 hours | 0 hour | 0 hour | 30 minutes | 2 hours |
| Working Area | 180x100x45mm | 300x180x45mm | 300x180x45mm | 300x180x45mm | 300x180x45mm |
| Control Software | GrblControl (Candle) | GrblControl (Candle) | GrblControl (Candle) | Mach3/DrufelCNC | Mach3/DrufelCNC |
| Driver Chip | 4988ET | 4988ET | TB67S109 | TB67S109 | TB67S109 |
| Home and Limit Switches | x | x | ✓ | ✓ | ✓ |
| Emergency Stop | x | x | ✓ | ✓ | x |
| Z-Probe | x | x | ✓ | ✓ | ✓ |
| Acrylic Baffles | x | x | ✓ | ✓ | ✓ |
| Comes with Offline Controller? | ✓ | ✓ | ✓ | x | x |
| Switchable to Laser Module? | ✓ | ✓ | ✓ | x | ✓ |
