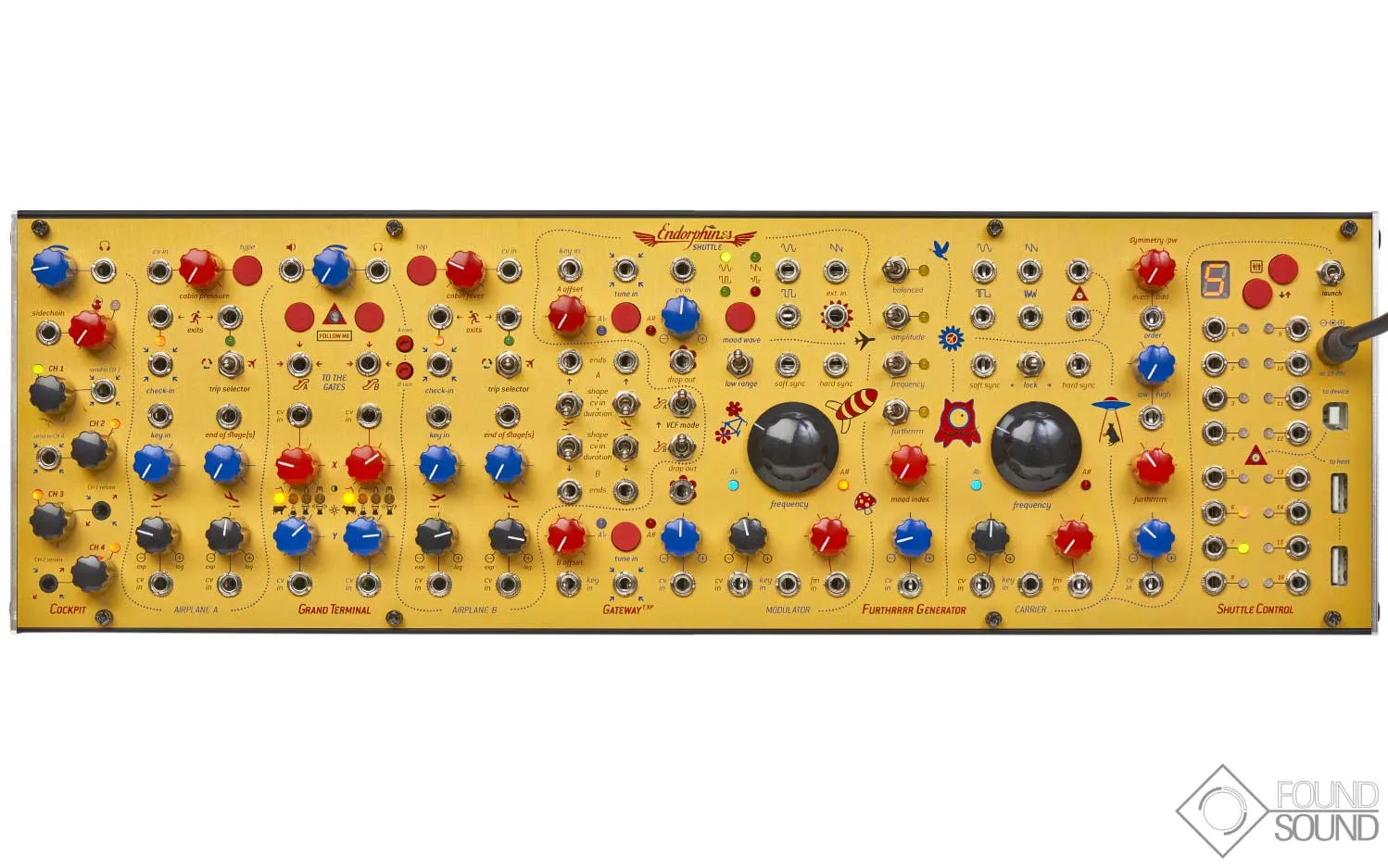

The SHUTTLE features 5 Eurorack modules in one single 84hp faceplate: Shuttle Control-16 channel USB-> MIDI-> CV interface with almost infinite possibilities interpreting MIDI events into analogue voltages-including CV / Gate, random or noise generators, MIDI or tap-clocks, utility LFOs and envelopes; Furthrrrrrr generator - Dual triangle-core VCO with a waveshaper; Grand Terminal - Dual voltage controlled gate with 8 resonant filter modes (ladder, diode, lpg, state variable, comb-dual envelope generators (voltage controlled) with looping / AD / ASR with arbitrary voltage to control slope shapes: from EXP to LIN to LOG without stretching the length of a certain slope; Cabin Pressure audio FX processor with 8 selected effects (GT) Cockpit (CP) -4 stereo channel mixer with sidechain ducking Gateway (GW) -dual 1 1 utility mixer and auto-tuner to scale, offset and invert voltages.

Video:

Product Specs

• Item Number: 7457
• Make:
• Model:
• Condition:
• Finish: Gold
• Categories: ⇒
• Function:
• Made In: Spain
• MPN: E-SS
• Modular Grid: Eurorack
• Dimensions: 84 HP 45 mm deep
• Power: 710 mA 12V 500 mA -12V 0 mA 5V
