Product Details
＋

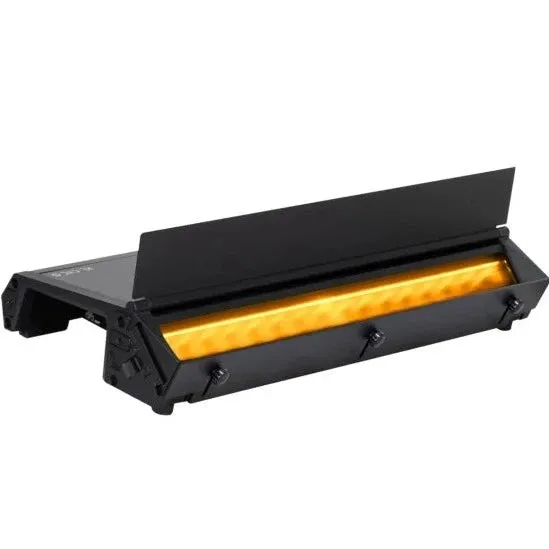

he KL CYC S is the perfect fixture for smooth and even cyclorama, set and wall washing applications. It utilizes a carefully crafted asymmetrical reflector design to achieve perfect blends while covering significant heights with ease.
Designed with an incredibly low profile housing the KL CYC is also the ideal choice for footlight positions, providing excellent versatility for stage, film, television and event lighting use.
Seamless magnetic alignment, simple mounting bracket attachment and elegant power and data wire management make the KL CYC a breeze to integrate into new designs or upgrade traditional CYC fixtures or foot ramps to a modern LED fixture without compromises. The fanless design ensures the fixture is always a perfectly silent performer. Adjustable front feet allow for angle changes when floor mounted. The top and bottom barndoors allow for a perfect framing of the light output along the surface or to avoid overshot in footlight applications.
The KL CYC S features Elation's proven RGBMA color system, allowing a perfect color match to many other fixtures in the KL and Fuze ranges. Calibrated color temperature control, greenshift adjustment and the CMY and RGB emulation modes provide the designer with powerful control to recall any color in up to two separate segments.
The KL CYC S features Elation's proven RGBMA color system, allowing a perfect color match to many other fixtures in the KL and Fuze ranges. Calibrated color temperature control, greenshift adjustment and the CMY and RGB emulation modes provide the designer with powerful control to recall any color in up to two separate segments.
The newly developed EdgeLight feature allows the user to designate a safety light in red or blue to turn on whenever desired, or if DMX signal is lost. This new feature provides a guide for performers on stage to where the edge of the stage is located.
The KL CYC S is the ideal solution for Touring Applications, Theme Parks, Live Events, Theater or Houses of Worship.
Features
- 90W RGBMA LED Array
- 5,645 Total Fixture Lumen Output (Sphere)
- Ultra-efficient asymmetrical reflector design
-
Replaceable Lens
-
Fanless heat management
-
Low profile housing
-
Up to 2 control segments
-
EdgeLight safety feature
-
Magnetic fixture alignment
-
Flicker Free Operation for TV and FILM
-
DMX, Art-net and sACN support
-
Power and Data passthrough
Specifications
SOURCE
- 90W RGBMA LED Array
- 30,000 Hour Average LED Life*
PHOTOMETRIC DATA
- Total Lumen Output
- 5,645 (Integrating Sphere)
- 5,276 (Goniometer)
- CRI 96.5
- TLCI 88
EFFECTS
- EdgeLight Safety Feature
-
Electronic Dimmer and Strobe
-
Variable 16-bit Dimming Modes and Curves
COLOR
- RGBMA Color Array
- Up to two control segments
-
CMY, RGB Emulation
-
Variable CCT 2,400K - 8,500K
-
Green/Magenta Shift
-
Virtual Gel Swatch Book
CONTROL / CONNECTIONS
- 11 DMX Channel Modes (1ch, 4ch, 4ch, 4ch, 12ch, 11ch, 16ch, 13ch, 20ch, 19ch, 32ch)
- 4 Button Control Panel, LED Display
- RDM (Remote Device Management)
- 5pin DMX In/Out
- RJ45 Locking Ethernet In/Out
- IP65 Locking Power Cable In/Out
SIZE/WEIGHT
- Length: 8.1" (206.6mm)
- Width: 19.9" (505mm)
- Height: 3.4" (85.2mm)
- Weight: 7.7lbs (3.5kg)
ELECTRICAL / THERMAL
-
AC 100-240V - 50/60Hz
-
100W Max Power Consumption
- 5°F to 113°F (-15°C to 45°C)
