Product Details
＋
DESCRIPTION
- ZLAN6042/ ZLAN6032 are equipped freely with our Windows Virtual Serial & Device Management Tool ZLVirCom. It supports virtual serial and searching device or modifying parameters with ZLVircom.
- Provide device management library (Window DLL library). It will help user to develop program with VC, VB, Delphi, C Builder. User need only use read or write function to communicate with ZLAN6042/ZLAN6032.
- ZLAN6032 has embedded Web server, can control IO, collect IO and AI voltage through web.
- ZLAN6042/ ZLAN6032 support DHCP, solve IP management and IP conflict problem.
- ZLAN6042/ ZLAN6032 support DNS, can realize communication through domain name.
- ZLAN6042/ ZLAN6032 support 100 TCP connections communicate with network module.
- ZLAN6042/ ZLAN6032 have hight cost performance.
- ZLAN6042/ ZLAN6032 2KV ESD Ethernet port protection.
SPECIFICATION
- 4 Digitial input: Passive swicth (dry node) Active power level (wet node, low level voltage is 0~3V; high level votalge is 8~24V, measuring in 24V power)
- 2 Anolog quantity input: different input method corresponding to different sub-models. Voltage signal input: 0~5V or 0~10V. Current signal input: 4~20mA. Resistant input: 0~10k or resistant type temperature/ humidity sensor and so on.
- 4 digital output. relay output(5A@AC250V/DC 30V)
WHAT'S IN THE PACKAGE

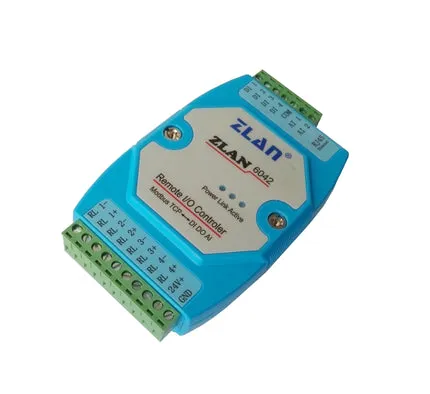

- 1x ZLAN6042 Remote network IO controller
