Development Background

Over the past 2 years, we have accumulated a lot of feedback from CNC users. The newbies think it is very complicated to set the right parameters such as engraving speed, depth per pass, plunge rate, and so on. The seasoned machinists believe desktop CNCs, such as the 4040-XE, are still not strong enough to cut aluminum and brass easily and precisely. So FoxAlien keeps on thinking to find a solution to satisfy both the newbies and the veterans. What if we can bring a machine that has more room for the new user to make errors, even if the settings are not perfect, they can still carve with nice results. What if this machine can meet the experienced user's requirements to engrave and cut soft metal easily. Now, we are introducing the best CNC Router Machine in FoxAlien’s family. The CNC Machine Vasto upgrades everything: the linear bearings, the extrusions, the ball screws, the motors and the controller box (independent drivers for each axis). This machine comes with the 400W spindle stock. In order to release the full potential of this Monster, we strongly recommend upgrading to the DeWalt DWP611 or the Makita Router. (DeWalt and Makita router are not included)

Hardware Specification

• Working Table: T-slot Hybrid Table

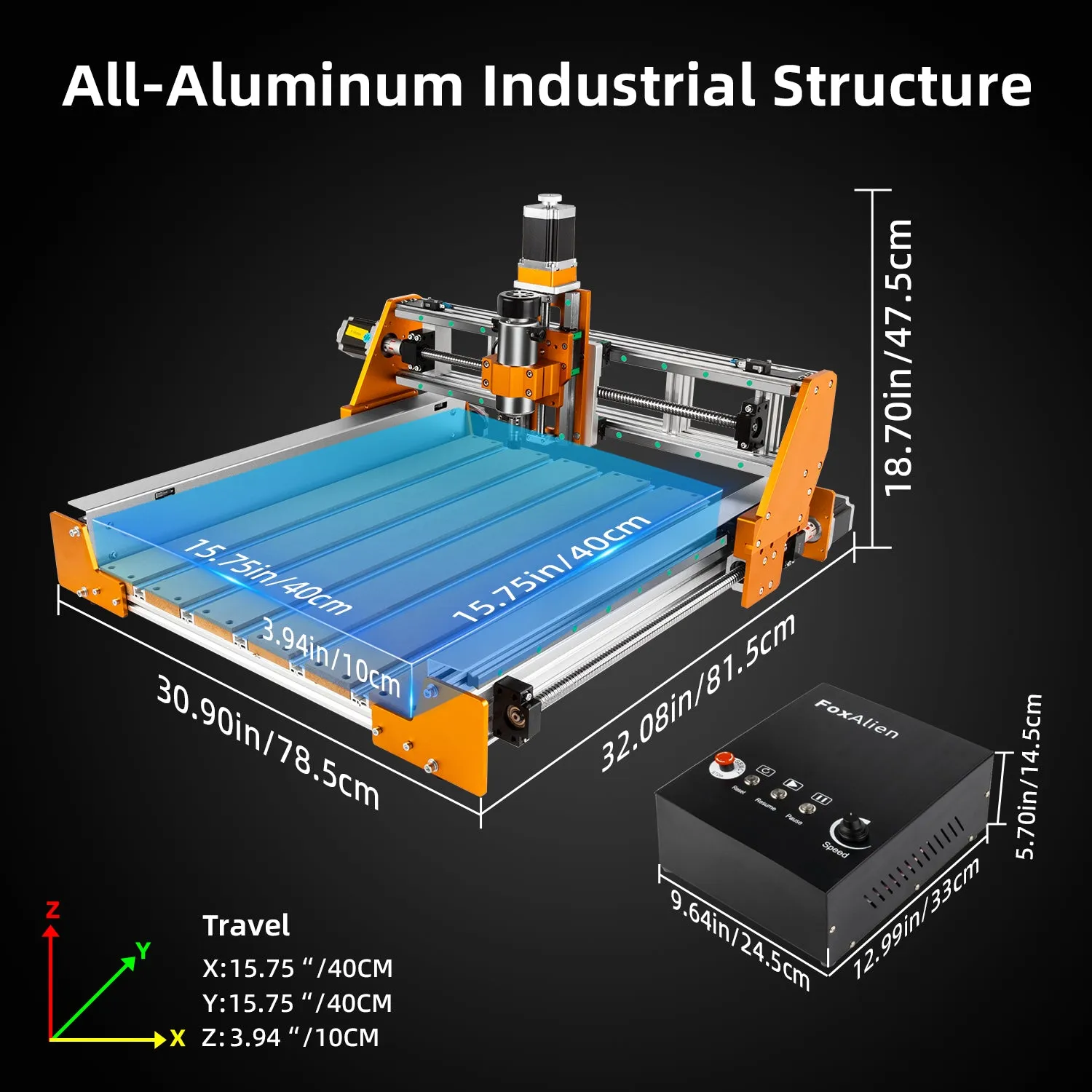

• Cutting Area: 15.75"x15.75"x3.94"

• Footprint Dimensions: 31.5"x31.5"x19.7"/80cm x 80cm x 50cm

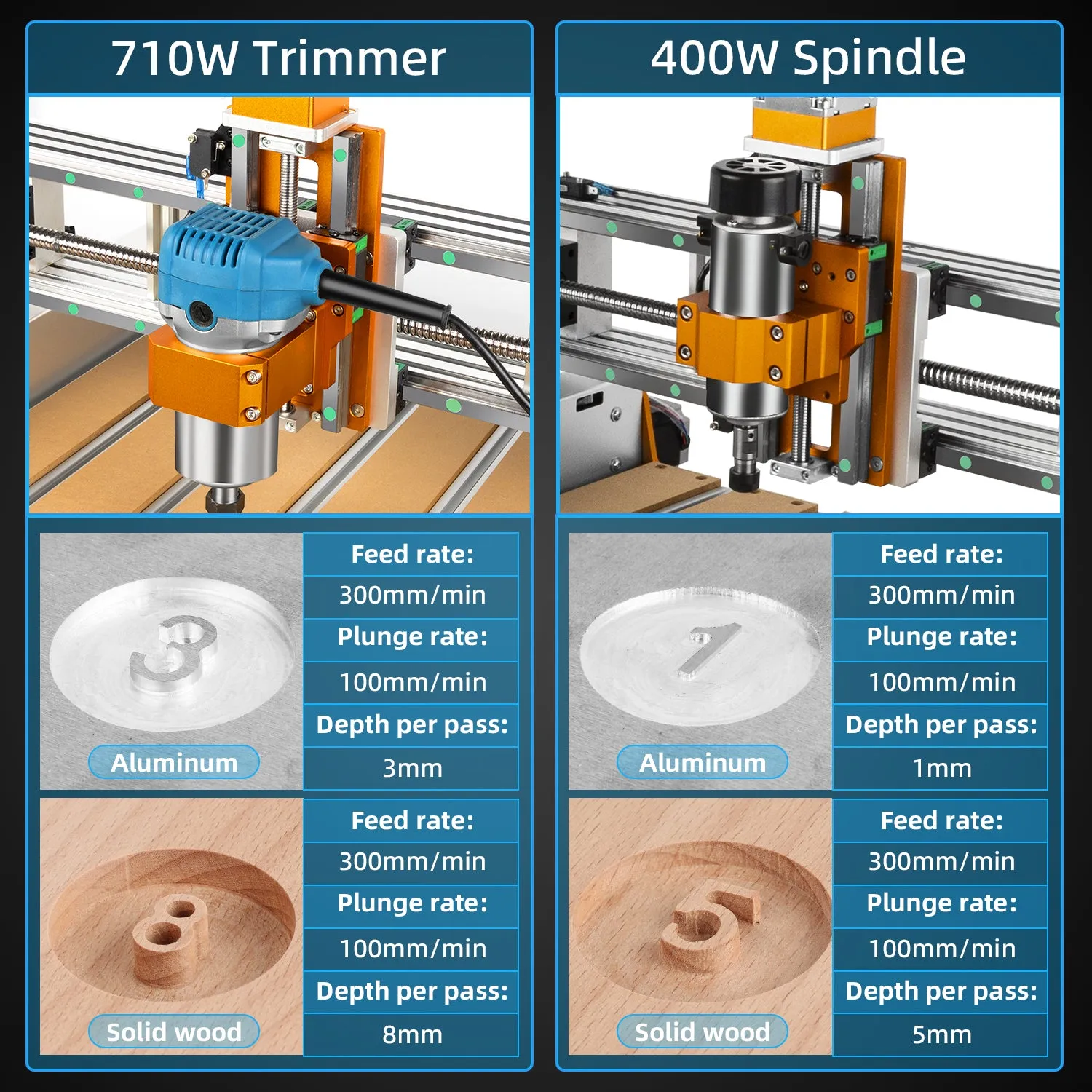

• Spindle: 400W

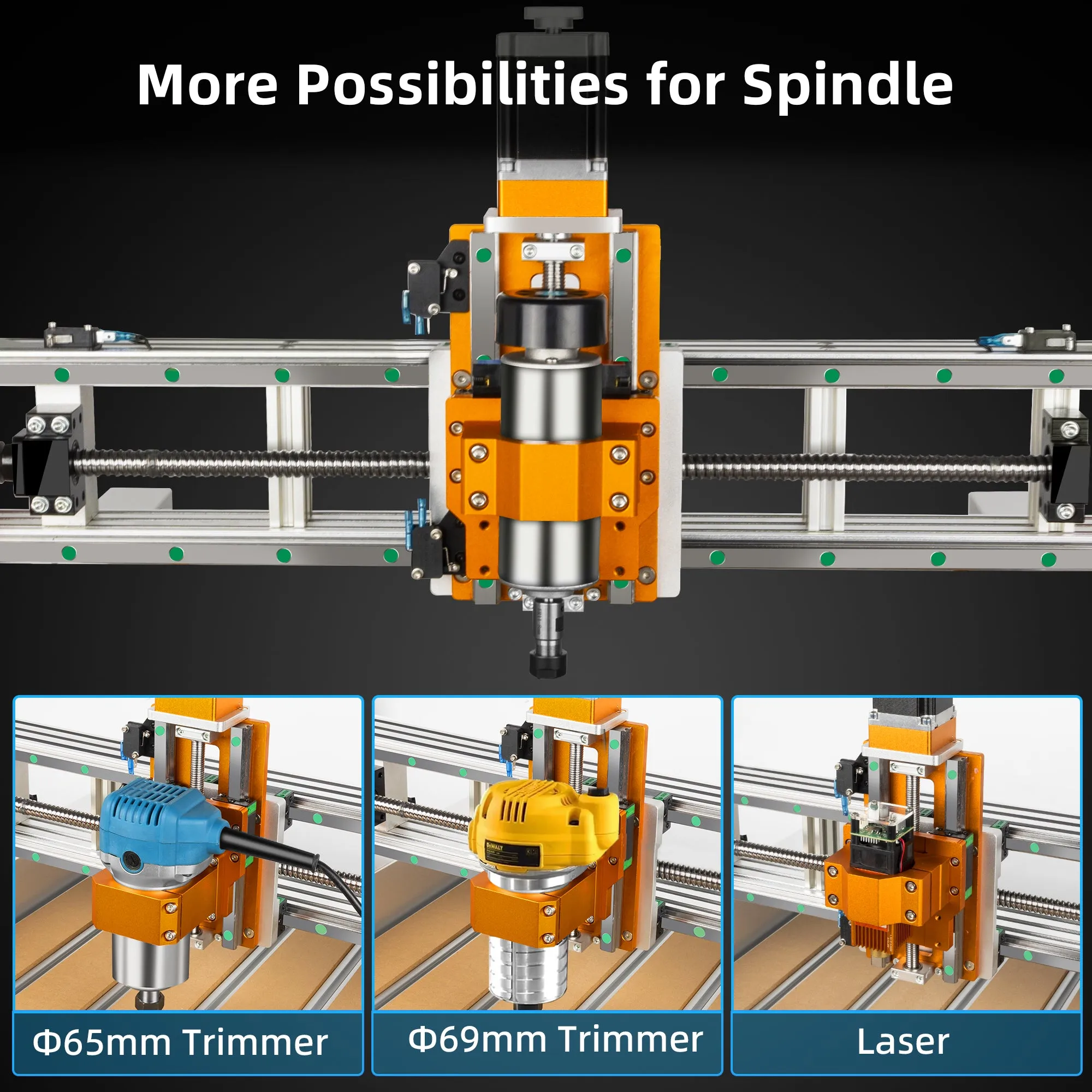

• Router:  Support 65mm and 69 Router, Makita RT0700C and DeWalt DWP611

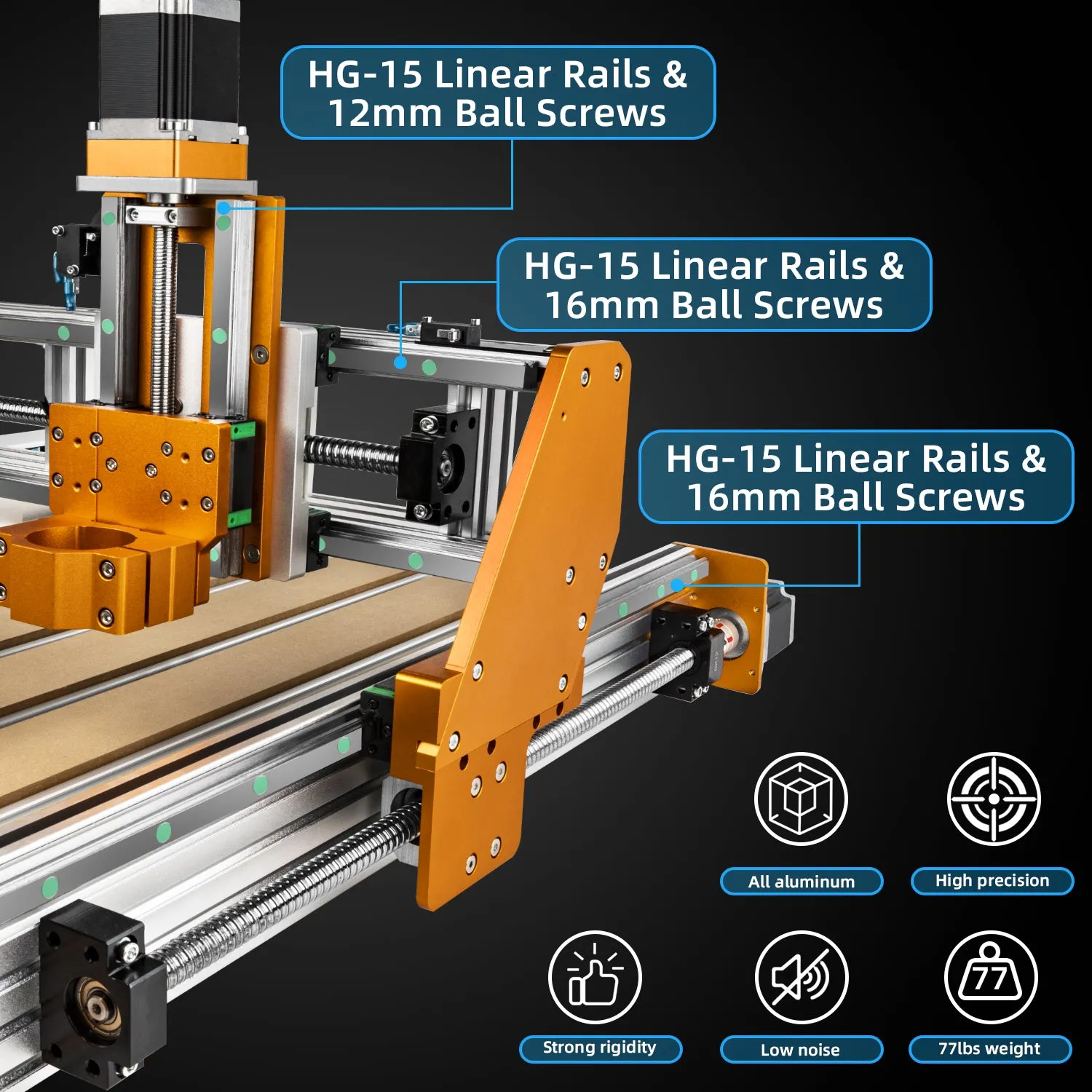

• X Axis: Dual HG-15 Linear Rails & 16mm Ball Screws & 4 Slide Blocks

• Y Axis: Dual HG-15 Linear Rails & 16mm Ball Screws & 4 Slide Blocks

• Z Axis: Dual HG-15 Linear Rails & 12mm Ball Screws & 2 Slide Blocks

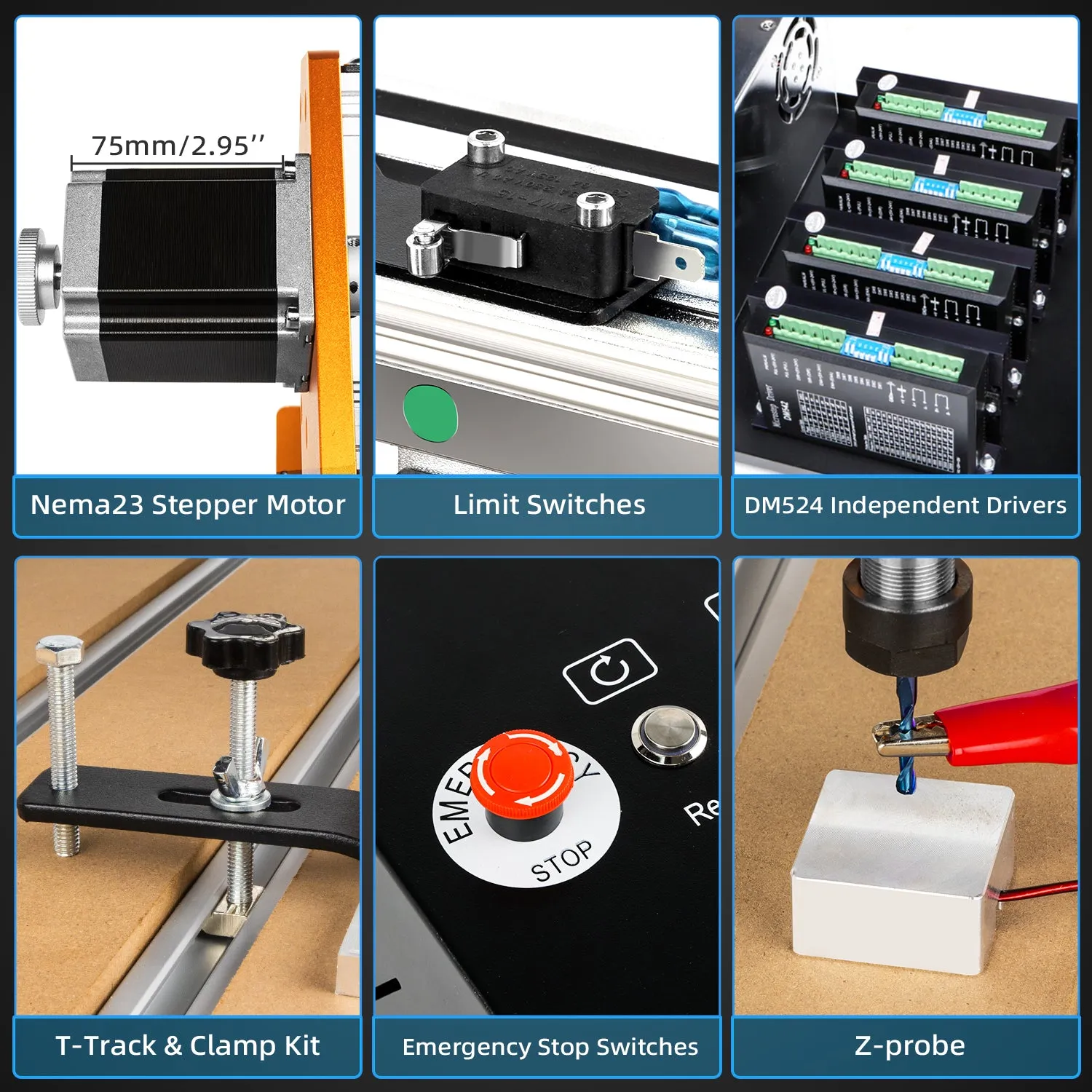

• Stepper Motors: Nema23

• Independent Driver: DM542

• Machine Structure Material: All Metal

• Laser Output: 5W

Package List

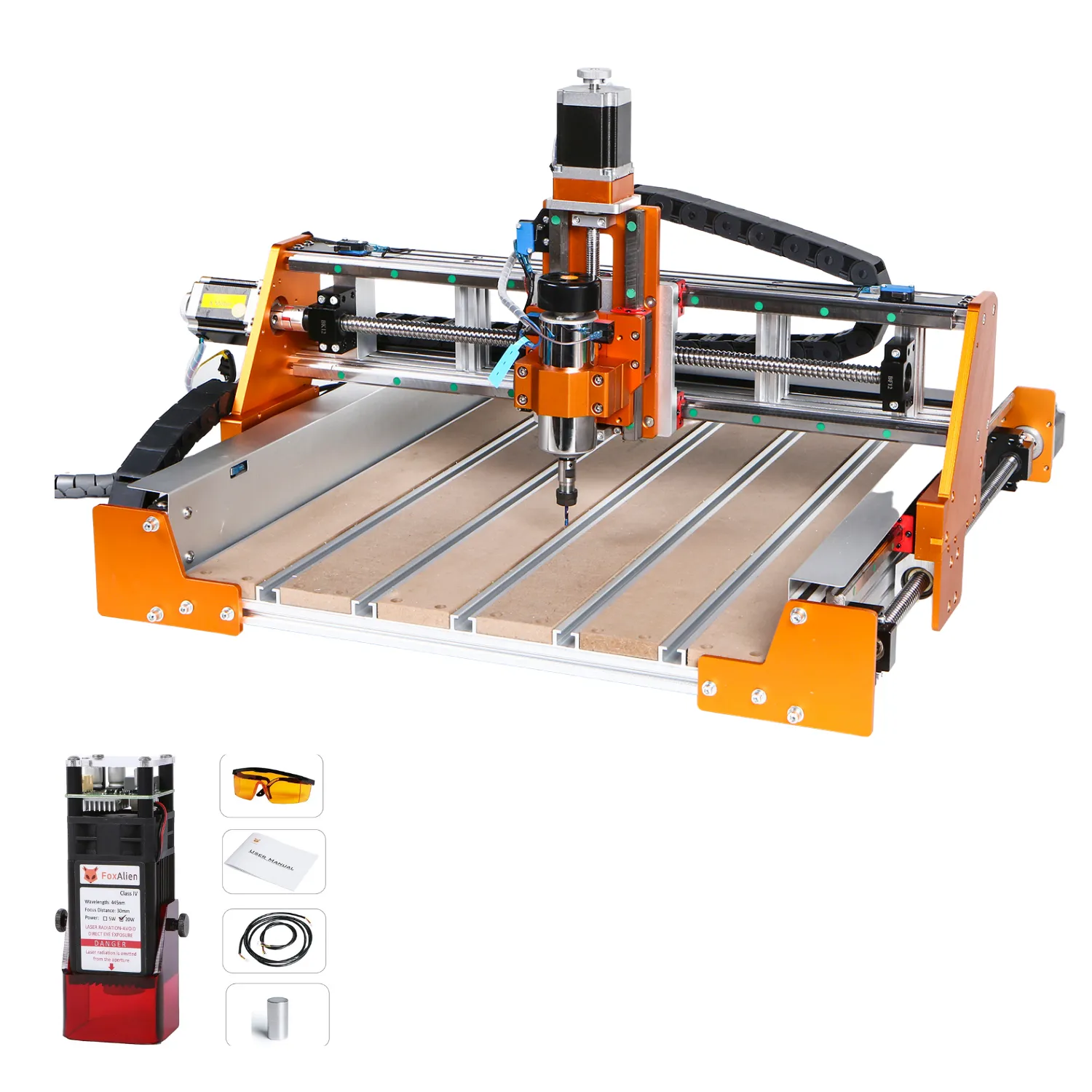

• 1x Vasto CNC router (half-assembled in 3 boxes)
• 1x T-slot Hybrid Table

• 1x Controller
• 2x Set of engraving bits (10pcs/set)
• 1x USB cable
• 1x Power cord
• 1x Box of screws and tools
• 1x User manual

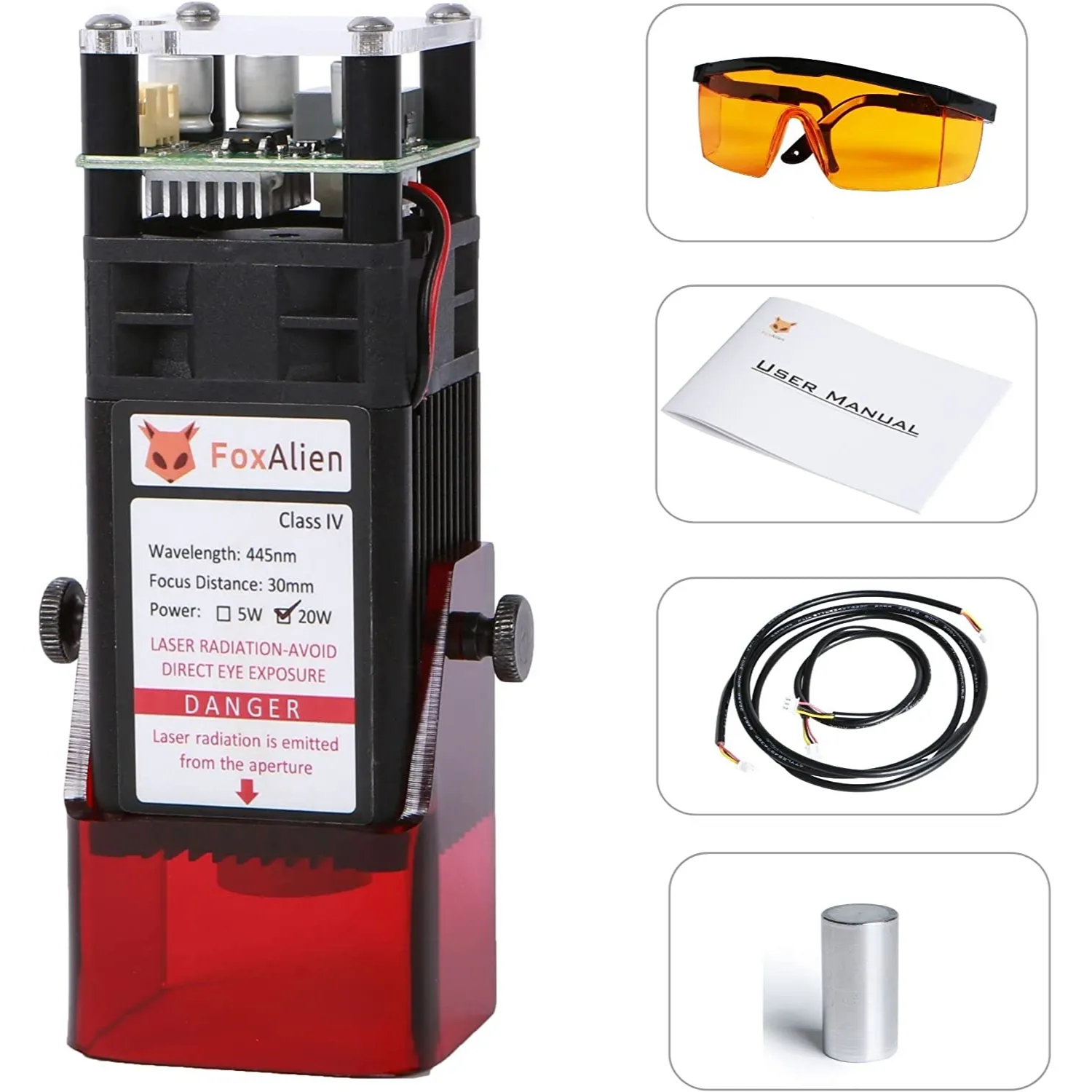

• 1x 20W Laser Module Kit
