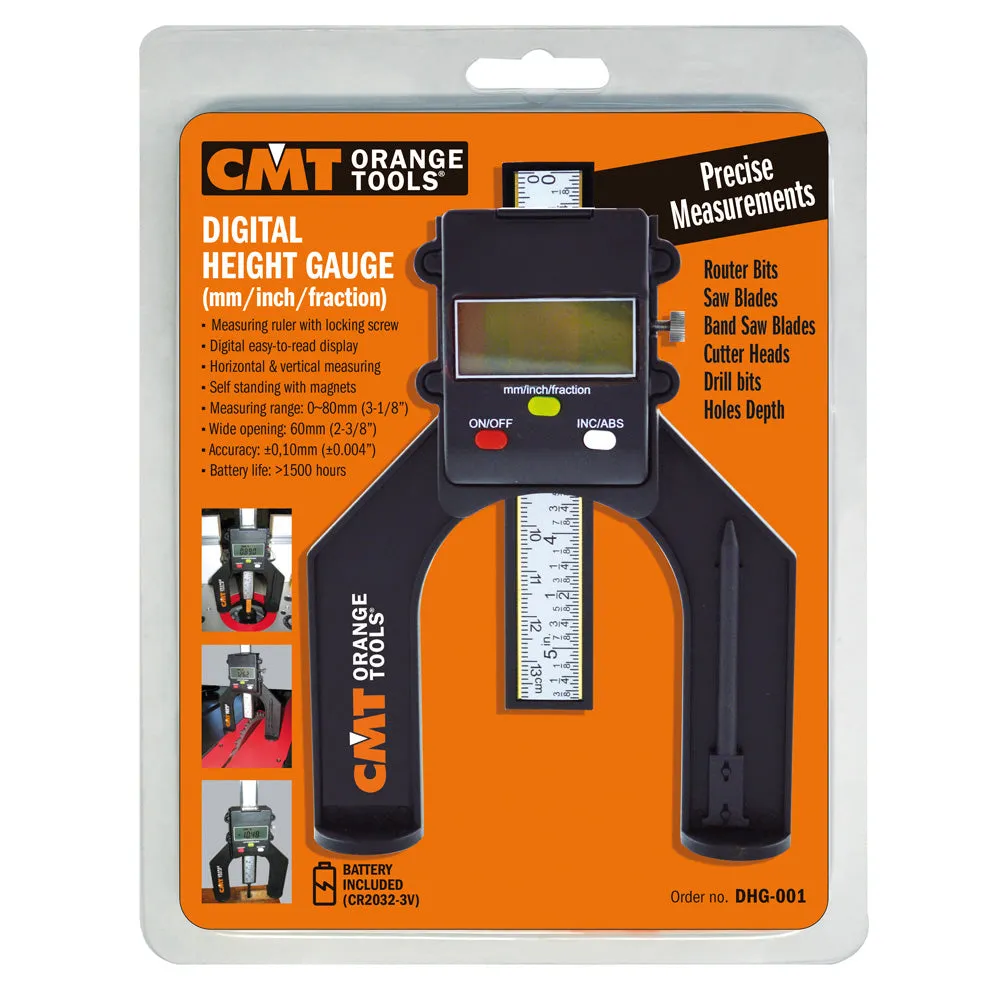

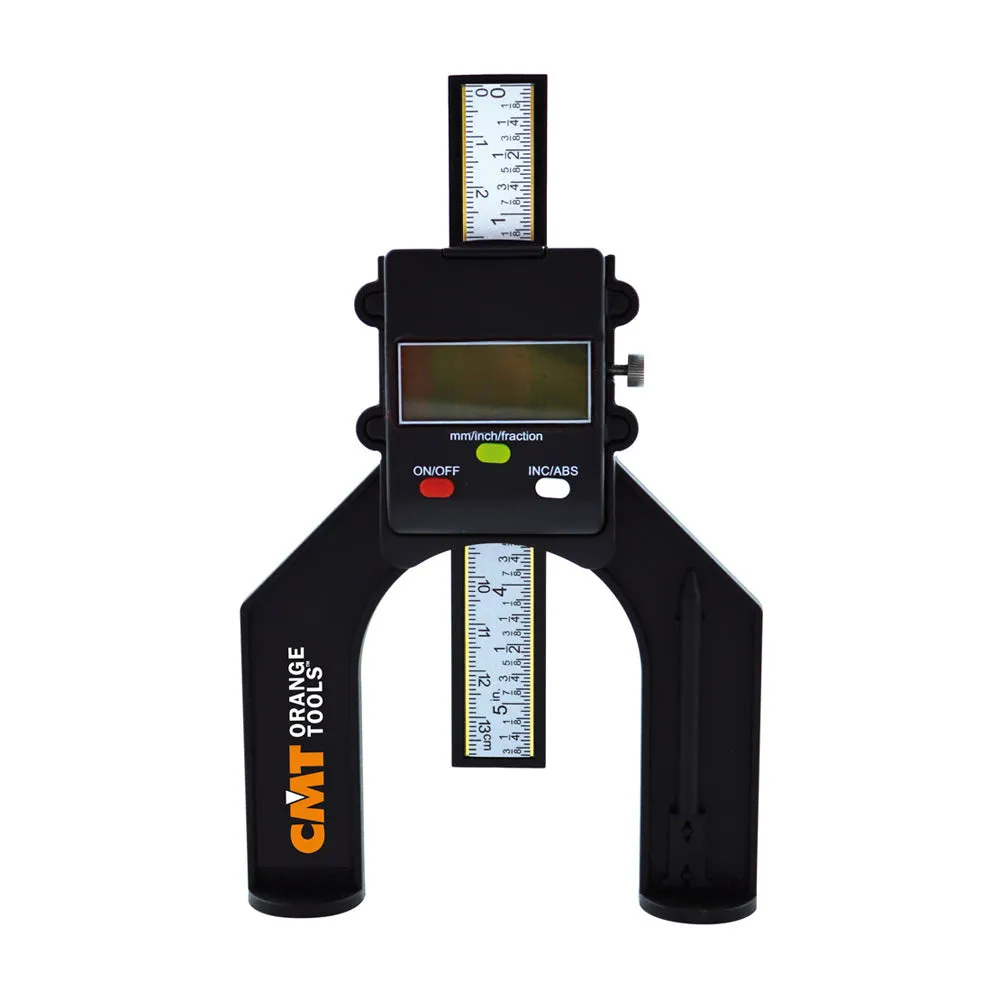

Get precise horizontal and vertical measurements for router bits, table saw blades, bandsaw blades, cutter heads, drill bits, and more. The CMT Digital Height Gauge features a measuring ruler with both a metric and imperial scale and a locking screw. It also has a digital easy-to-read display.

This handy tool is self-standing for setting cutting depth on router tables and low profiles for back fence adjustment. Measurements accurate within 0.1 mm. Battery included.

[TABS]

Features

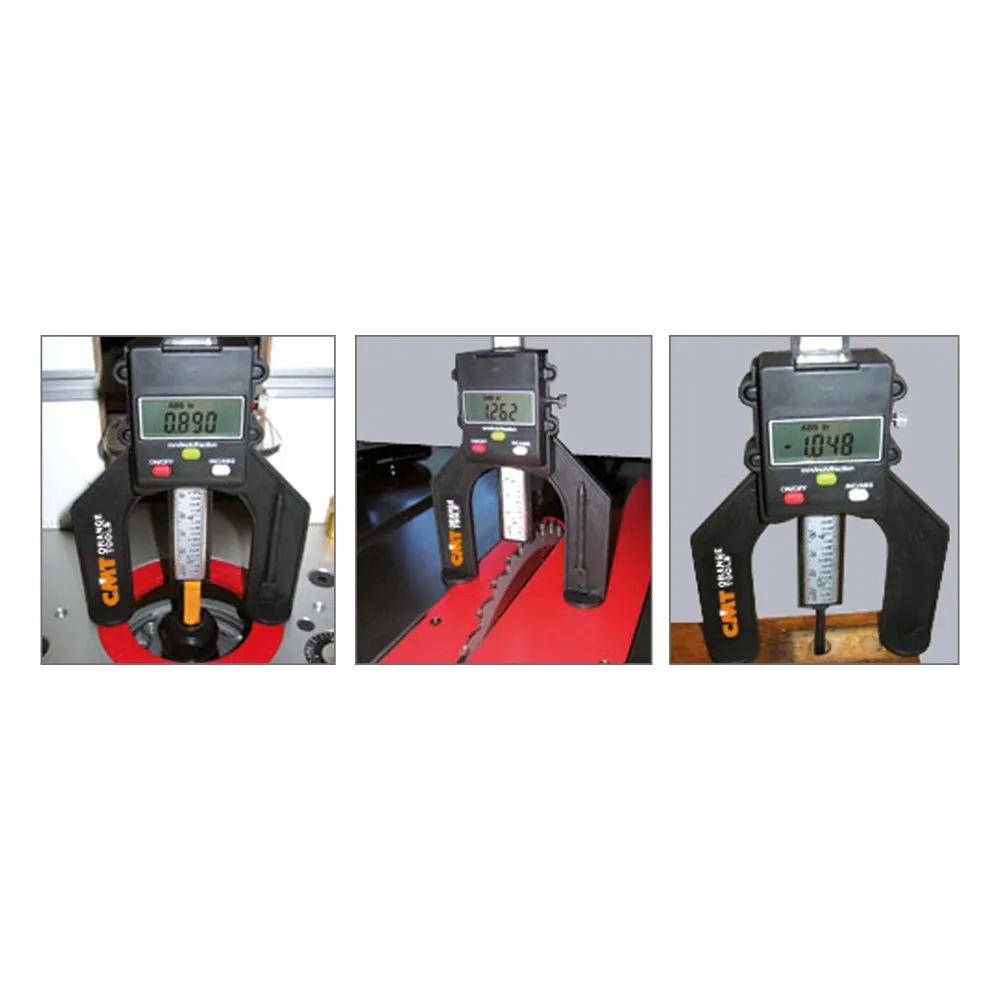

• Precise measurements for router bits, saw blades, band saw blades, cutter heads, drill bits, holes depth
• Measuring ruler with Metric/Imperial scale and locking screw
• Horizontal & vertical measuring
• Digital easy-to-read display

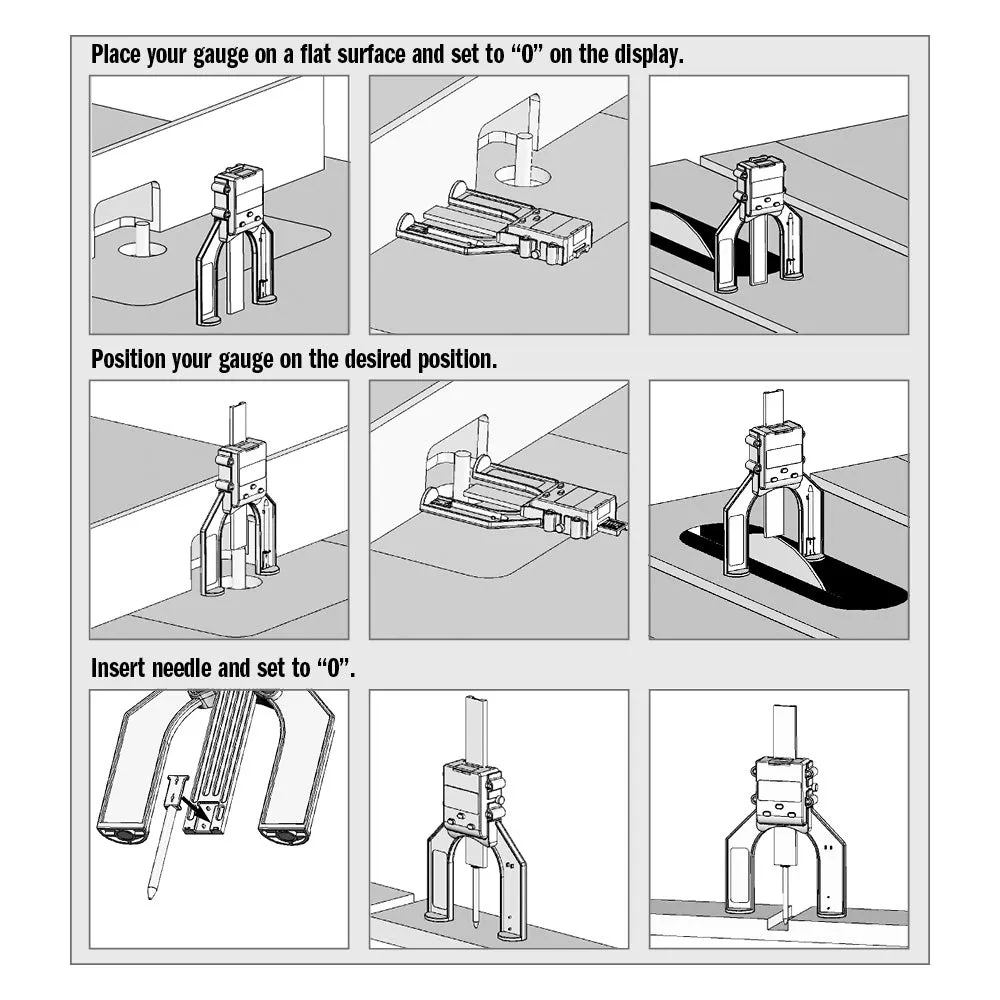

• Self-standing with magnets, for setting cutting depth on router tables and low profiles for back fence adjustment
• Instruction manual

Specs

Measuring range: 0~80 mm (0 ~ 3-1/8")
Needle: 0~50 mm (0~2")
Wide opening: 60 mm (2-23/64")
Resolution: 0.05 mm (0.0002")
Accuracy: ±0.1 mm (±0.004”)
Battery type: CR2032-3V; Lithium Button Cell

[/TABS]
