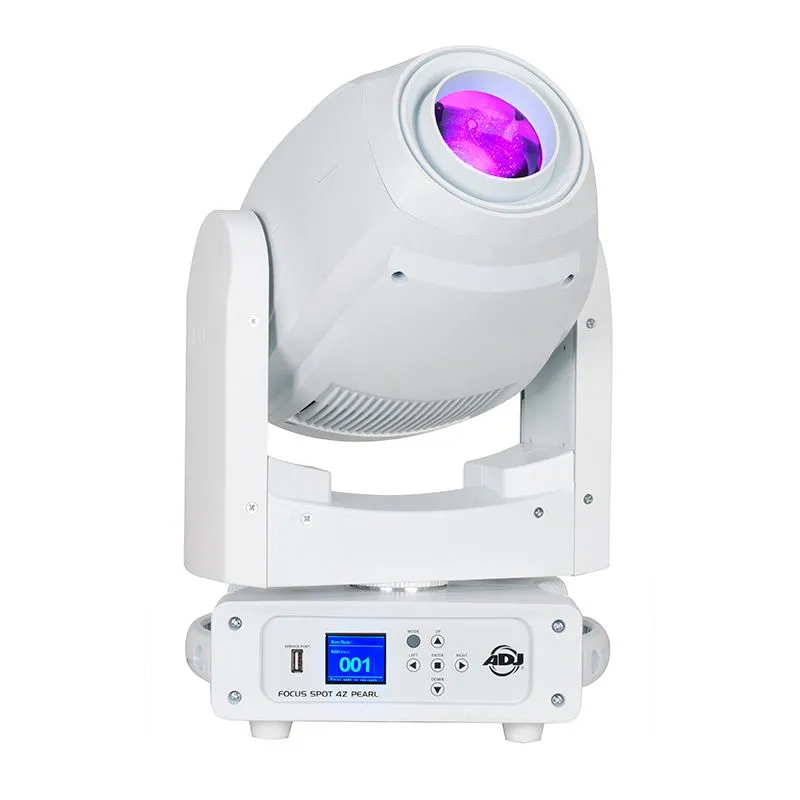

The Focus Spot 4Z Pearl is powered by a brilliant 200W cool white LED engine and is equipped with motorized focus and zoom (11 ~ 22-degree zoom), and has a white exterior housing. Its designed for temporary live events and fixed installations in nightclub, stages or churches. It is professionally fit with one GOBO wheel with 6 rotating/replaceable GOBOS, 8 vibrant colors plus white, and 2 prism wheels (one 5-facet linear and one 6-facet circular).

The Focus Spot 4Z has locking power In/Out connections to daisy chain the power, as well as 3-pin DMX In/Out to transmit a DMX signal from one fixture to the next. There is a USB firmware update port built-in plus advanced control options such as: 16-bit fin pan and tilt, multiple DMX control modes, and 6 different dimming options. The Focus Spot 4Z offers a robust light output in a light weight, compact foot print (18-inch high and one 23 pounds).

The Focus Spot 4Z Pearl fits in the ADJ DRC MH road case.

Light Source:

• 200W Cool White LED Engine (50,000 hr.)

Features:

• Motorized Focus

• Motorized Zoom: 11 ~ 22-degrees plus 16-bit Fine Zoom

• 2 Prism FX: Rotating 5-facet Linear & rotating 6-facet Circular

• 0-100% smooth dimming

• Various strobe speeds

• USB firmware update port

• 2 cooling fans

• White exterior housing

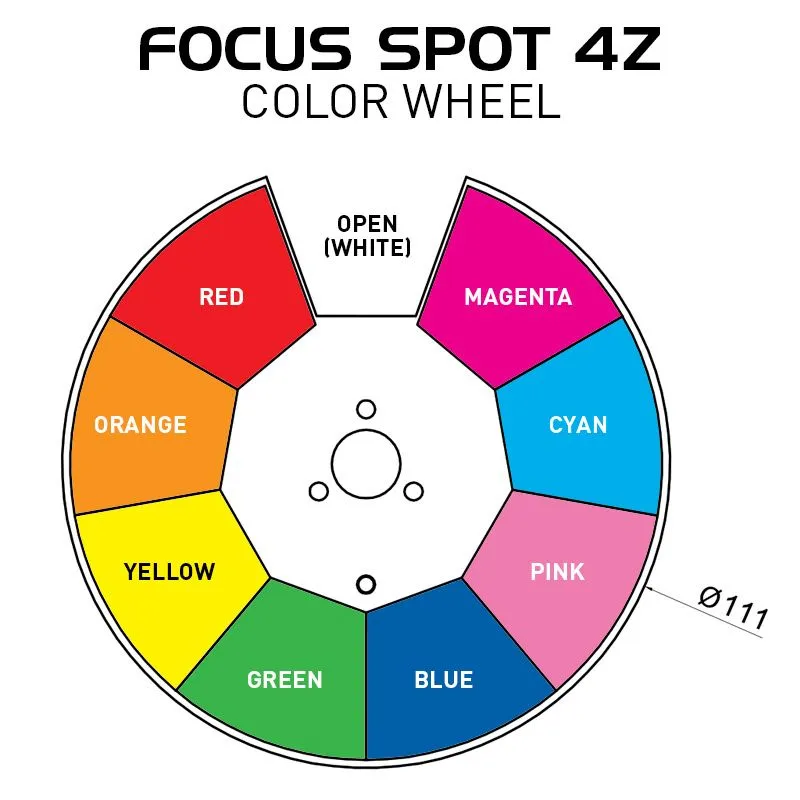

 Color Wheel:

• 8 dichroic colors white

GOBO Wheel:

• 6 aluminum GOBOs open

• All GOBOs removable & rotatable

• GOBO Shake Effect

• GOBO size: 22.5mm (outer); 19mm (viewable); 0.5-2mm (thickness)

 Prism Wheel:

• Prism Wheel 1: Rotatable 5-facet Linear

• Prism Wheel 2: Rotatable 6-facet Circular

• Prism Indexing

Control:

• 3 DMX Channel Modes: 16/18/22 Channels

• Color LCD display with 6-button function menu

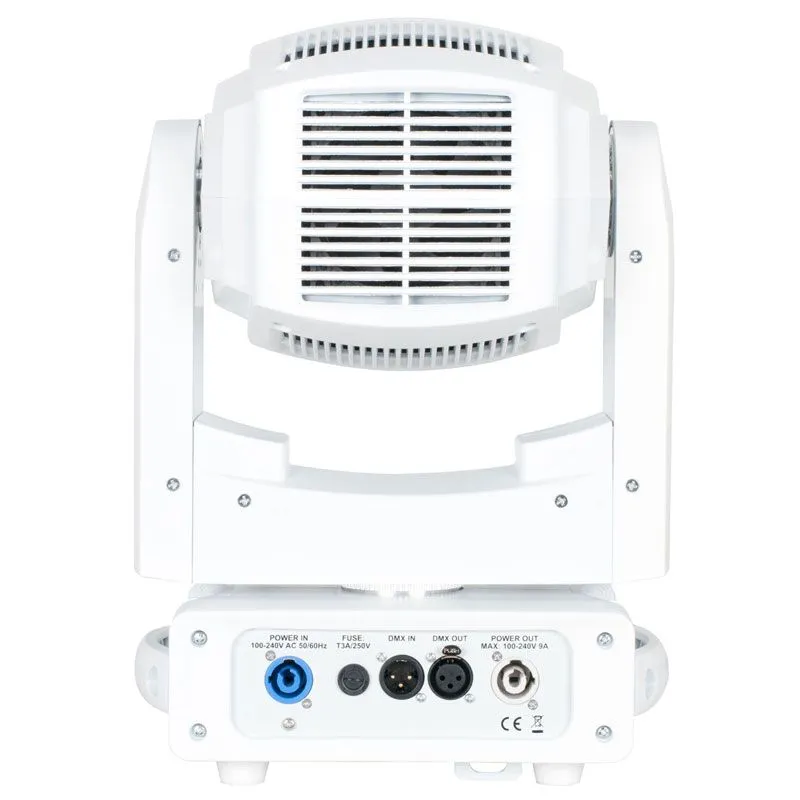

• Data In/Out: 3-pin DMX

• Power In/Out: Locking power In/Out connections (Daisy chain 4 units @ 120V; 10 units @ 240V)

• Control Mode: DMX512 or internal programs

• 6 Dimming Curve Modes: Standard, Stage, TV, Architectural, Theatre, Stage 2

• 0-100% smooth dimming

• Various strobe speeds

• USB firmware update port

• With Wired Digital Communication Network

• RDM (Remote Device Management)

Pan/Tilt:

• Pan: 540 & 630 degrees

• Tilt: 270 degrees

Dimensions & Weight:

• Dimension: 7.15” (L) x 10.97” (W) x 18” (H) / 181.5 x 278.6 x 457.4mm

• Weight: 23 lbs. / 10 kg.

What’s Included:

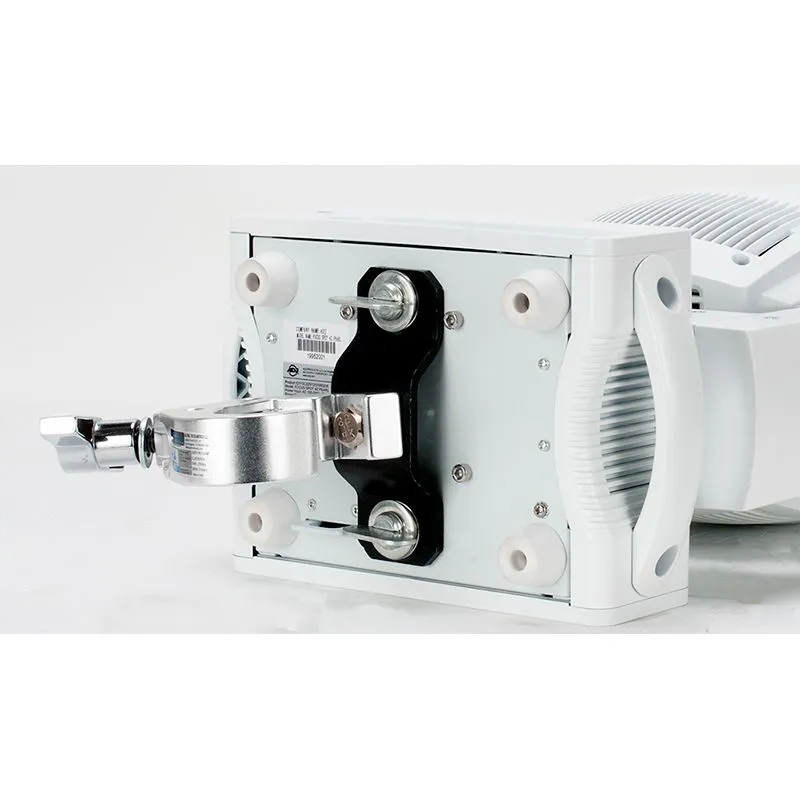

• Omega Bracket

• 6 ft/3M locking power to Edison cable

• Safety Cable

Rating/Approvals:

• cETLus approved (Control #4010765)
